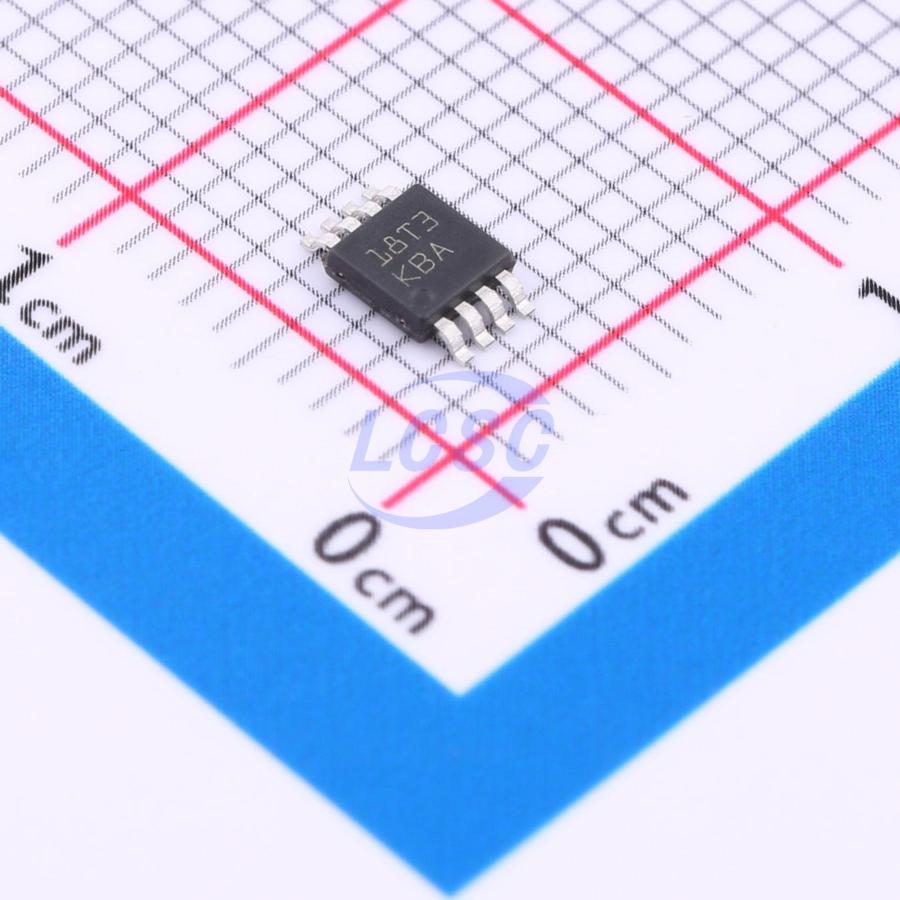

LM2936MM-5.0/NOPB

The LM2936 ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 15-μA quiescent current at a 100-μA load, the LM2936 is ideally suited for automotive and other battery operated systems. The LM2936 retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM2936 has a 40-V maximum operating voltage limit, a -40°C to 125°C operating temperature range, and ±3% output voltage tolerance over the entire output current, input voltage, and temperature range. The LM2936 is available in a TO-92 through-hole package, as well as SOIC-8, VSSOP, SOT–223, and TO-252 surface mount packages.

Applications

• Automotive
• Industrial Controls
• Point of Load

Key features

• LM2936 Operating V_IN range of 5.5 V to 40 V
• LM2936HV Operating V_IN range of 5.5 V to 60 V
• Ultra Low Quiescent Current 'L ≤15 μA for I_OUT =100 μA
• Fixed 3-V, 3.3-V or 5-V with 50-mA Output
• ±2% Initial Output Tolerance
• ±3% Output Tolerance Over Line, Load, and Temperature
• Dropout Voltage Typically 200 mV at lour =50 mA
• –24-V Input Voltage Protection
• –50-V Input Transient Protection
• Internal Short Circuit Current Limit
• Internal Thermal Shutdown Protection
• Shutdown Pin Available with LM2936BM Package
