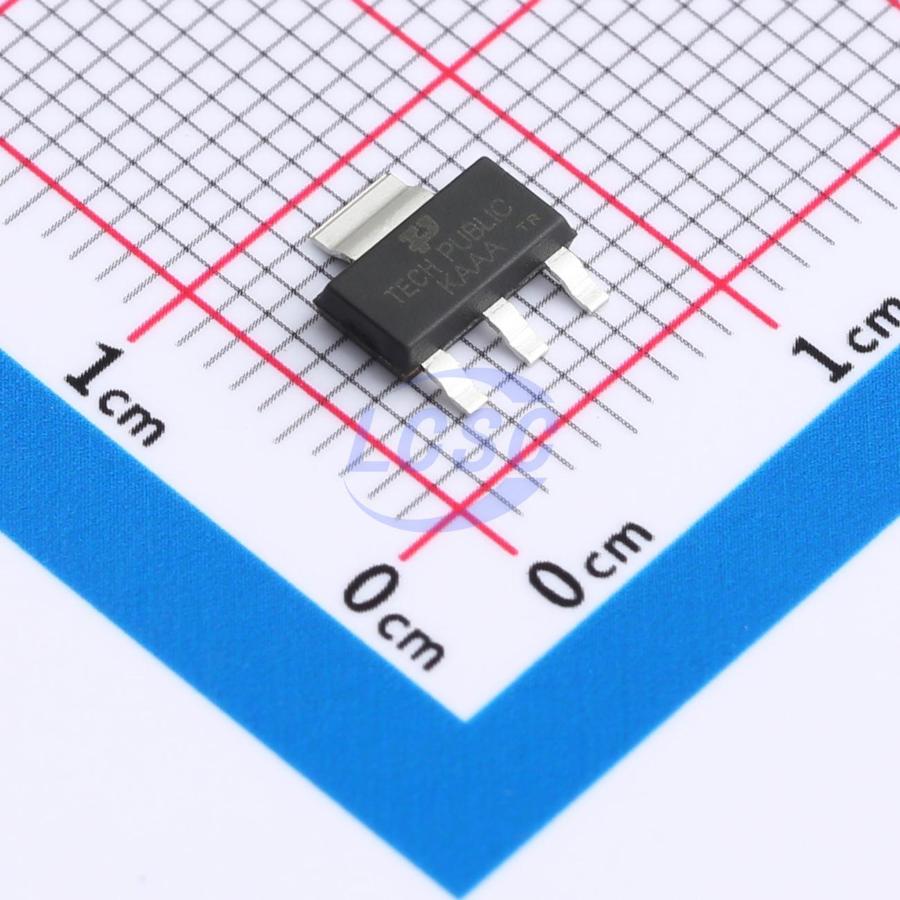

LM2936MPX-5.0-TP
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
Low Dropout Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM2936MPX-5.0-TP
- Store part #
- C42437053
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
974 in stock
#C42437053
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.34 | ₹57.34 |
| 10+ | ₹50.80 | ₹508.00 |
| 30+ | ₹47.75 | ₹1,432.50 |
| 100+ | ₹44.48 | ₹4,448.00 |
| 500+ | ₹42.52 | ₹21,260.00 |
| 1,000+ | ₹41.42 | ₹41,420.00 |
1 × ₹57.34
₹57.34
excl. GST
₹67.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2936MPX-5.0-TP
₹57.34 for 1 + GST
Specifications
- Output Voltage
- 5V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 250mA
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.214 g
Overview
The is micropower low dropout voltage regulators available in a wide variety of output voltages. These devices feature a very low quiescent current. and thermal limiting protection are provided by the presence of a short circuit at the output and an internal thermal shutdown circuit. Due to the low input-to-output voltage differential and bias current specifications, these devices are ideally suited for battery powered computer, consumer, and industrial equipment where an extension of useful battery life is desirable.
Applications
- Hand - Held Instruments
- Battery Powered Consumer Products
- Test and Measurement Equipment
- Industrial Power Supplies
Key features
- Input Voltage up to 36V
- output current up to 250mA
- output Voltage 5V
- 2.5μA Current at no Load
- ±2% Output Accuracy
- Compact package: SOT - 223
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP422C50Y3#C42437055TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 2,835 | ₹61.77 · 2,835 in stock | View |
 | LM2937IMPX-5.0-TP#C42437054TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 166 | ₹44.12 · 166 in stock | View |
 | TPMIC5239-5.0YS#C42437058TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 168 | ₹56.28 · 168 in stock | View |
