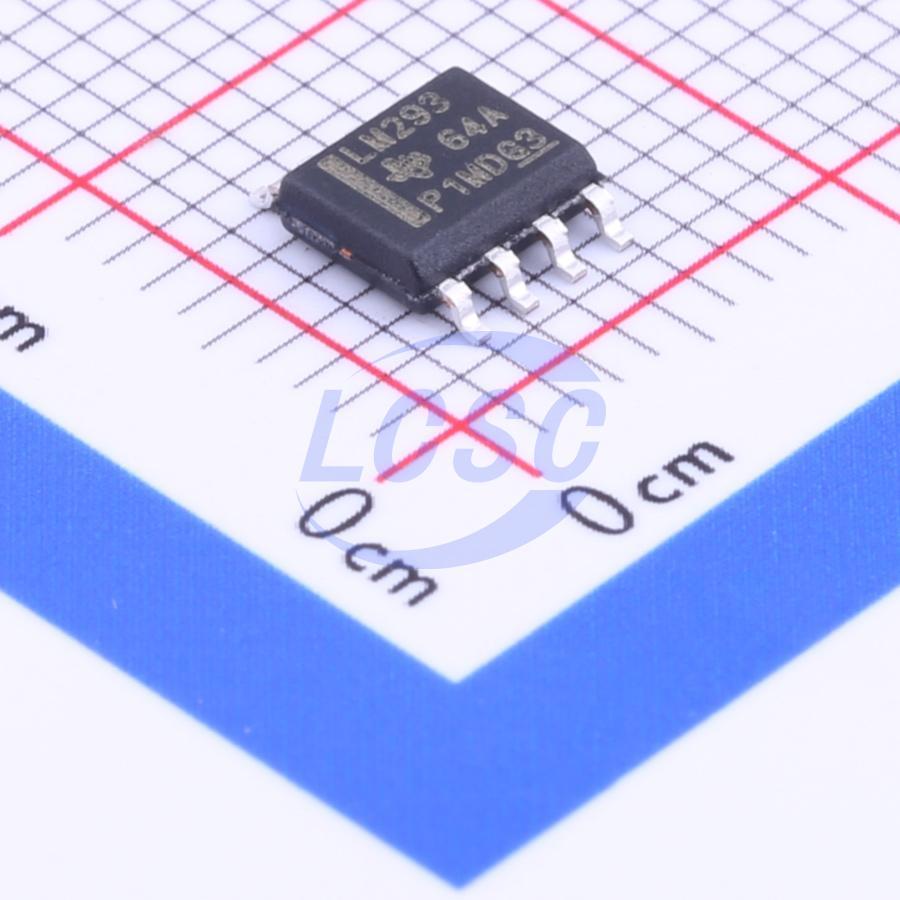

LM293DR
2 1mA 2mV SOIC-8 Comparators RoHS
Dual Differential Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM293DR
- Store part #
- C7936
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,58,360 in stock
#C7936
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.48 | ₹67.40 |
| 50+ | ₹10.66 | ₹533.00 |
| 150+ | ₹9.26 | ₹1,389.00 |
| 500+ | ₹8.20 | ₹4,100.00 |
| 2,500+ | ₹6.47 | ₹16,175.00 |
| 5,000+ | ₹6.05 | ₹30,250.00 |
5 × ₹13.48
₹67.40
excl. GST
₹79.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM293DR
₹67.40 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL
- Operating Temperature
- -25℃~+85℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 100nA
- Output Type
- Open Collector
- Quiescent Current(Iq)
- 1mA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.266 g
Overview
These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common - mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open - collector outputs to achieve wired - AND relationships.
Applications
- Robotic vacuum cleaners
- Single-phase UPS
- Server PSU
- Cordless power tools
- Wireless infrastructure
- Appliances
- Building automation
- Factory automation & control
- Motor drivers
- Infotainment systems & instrument clusters
Key features
- Single Supply or Dual Supplies
- Wide Range of Supply Voltage Max Rating: 2 V to 36 V
- Tested to 30 V: Non - V Devices
- Tested to 32 V: V - Suffix Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM393SR#C25503982COSINE · SOP-8 | COSINE | SOP-8 | 1,400 | ₹7.00 · 1,400 in stock | View |
 | LM293DTR(XBLW)#C41361409XBLW · SOP-8 | XBLW | SOP-8 | 640 | ₹8.24 · 640 in stock | View |
 | XL293D-8#C513510XINLUDA · SOIC-8 | XINLUDA | SOIC-8 | 2,490 | ₹8.82 · 2,490 in stock | View |
 | AS393AMTR-G1#C780783DIODES · SO-8 | DIODES | SO-8 | 2,490 | ₹10.61 · 2,490 in stock | View |
 | COS393SR#C25503981COSINE · SOP-8 | COSINE | SOP-8 | On request | ₹8.84 · 0 in stock | View |
