HXY MOSFETDatasheet (PDF)

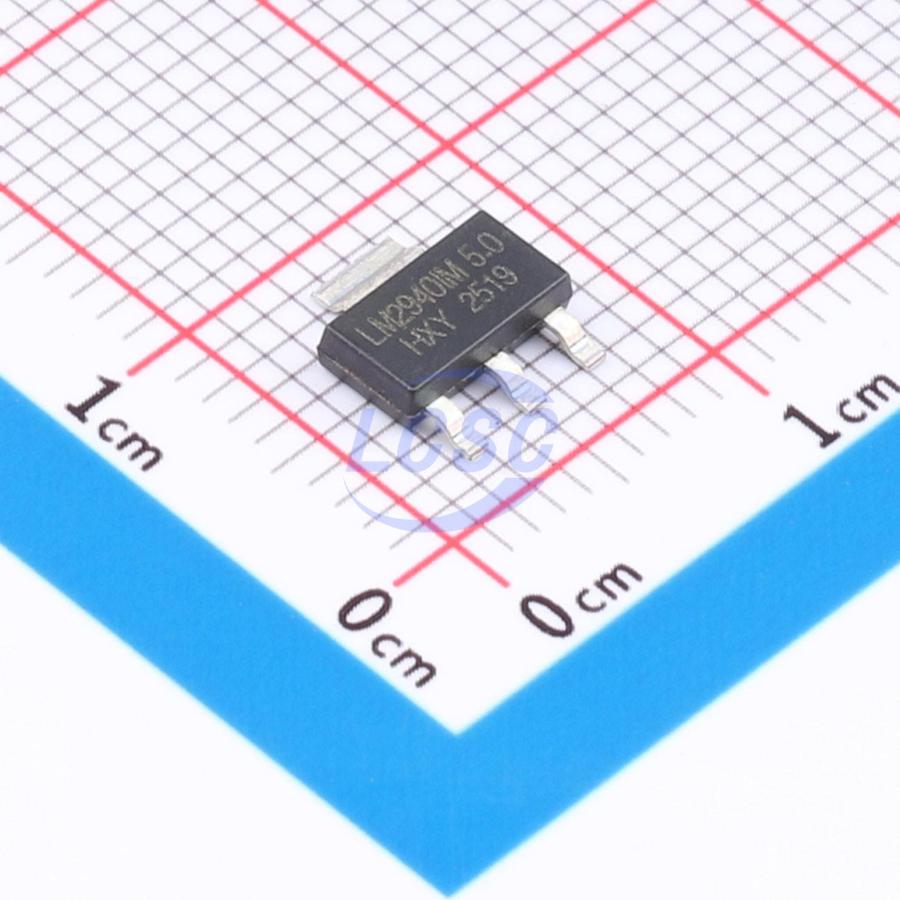

LM2940IMPX-5.0/NOPB-HXY
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223ROHS CompliantActive
1A Low Dropout Regulator
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- LM2940IMPX-5.0/NOPB-HXY
- Store part #
- C49006632
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
991 in stock
#C49006632
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.50 | ₹135.50 |
| 10+ | ₹109.62 | ₹1,096.20 |
| 30+ | ₹96.79 | ₹2,903.70 |
| 100+ | ₹83.96 | ₹8,396.00 |
| 500+ | ₹76.35 | ₹38,175.00 |
| 1,000+ | ₹72.22 | ₹72,220.00 |
1 × ₹135.50
₹135.50
excl. GST
₹159.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM2940IMPX-5.0/NOPB-HXY
₹135.50 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -15℃~+125℃
- Supply Current (Iq)
- 15mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.162 g
Overview
This series of adjustable and fixed voltage regulators is designed to deliver 1A output current and operate with an input-to-output differential as low as 2.3V. The maximum input voltage is +35V. Compared to conventional LDO regulators, this series offers superior output short-circuit protection. Under identical application conditions, these devices can supply higher output current than standard LDO regulators. On-chip trimming achieves a reference voltage accuracy of 2%. Current limiting is also trimmed to minimize stress on the regulator and power supply circuitry under overload conditions. These devices are pin-compatible with other three-terminal SCSI regulators and are available in a low-profile SMT SOT-223 package.
Applications
- High-efficiency linear regulator
- VGA notebook
- Battery charger
- Battery-powered instrumentation
Key features
- Three-terminal adjustable or fixed voltage (3.3V or 5.0V)
- 1A output current
- Dropout voltage as low as 2.3V
- Line regulation: 0.2% max
- Load regulation: 0.4% max
- SOT-223 package
