HTCDatasheet (PDF)

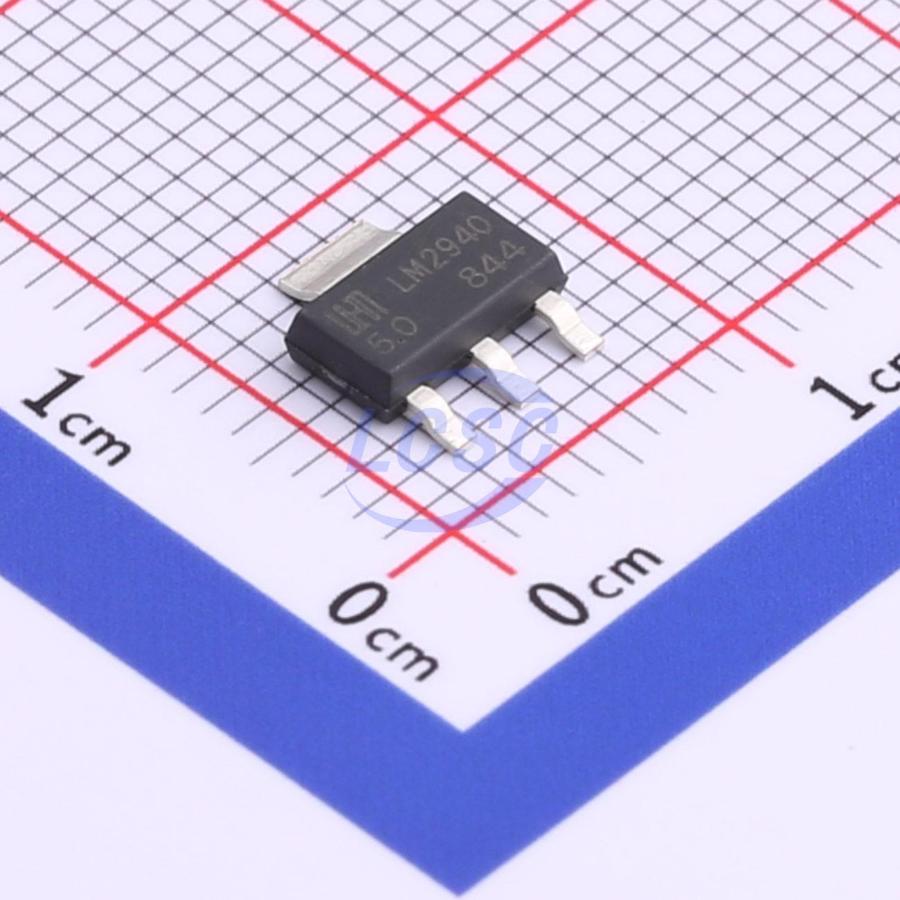

LM2940S-5.0
5V Positive Fixed SOT-223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3LROHS CompliantActive
1A Low Dropout Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM2940S-5.0
- Store part #
- C596334
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,997 in stock
#C596334
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.76 | ₹63.76 |
| 10+ | ₹50.27 | ₹502.70 |
| 30+ | ₹44.40 | ₹1,332.00 |
| 100+ | ₹37.22 | ₹3,722.00 |
| 500+ | ₹28.51 | ₹14,255.00 |
| 1,000+ | ₹26.55 | ₹26,550.00 |
1 × ₹63.76
₹63.76
excl. GST
₹75.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2940S-5.0
₹63.76 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Operating Voltage
- 26V
- Output Current
- 1A
- Features
- Reverse polarity voltage protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.178 g
Overview
The LM2940 regulator features the ability to source 1A of output current with a dropout voltage of typically 0.4V and maximum of 0.63V over the entire temperature range. These device also finds applications in lower current, low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. LM2940 is available as fixed 3.3V, 5.0V output voltages. The LM2940 is offered in a SOT-223-3L and TO-220-3L.
Applications
- Battery Powered Equipment
- High-Efficiency “Green” Computer Systems
- Automotive Electronics
- High-Efficiency Linear Power Supplies
- High-Efficiency Post-Regulator For Switching Supply
Key features
- Guaranteed Output Current of 1A
- Maximum Input Voltage 26V
- Low Dropout Voltage 400mV
- Low Ground Current
- Accurate 1% Guaranteed Tolerance
- Extremely Fast Transient Response
- Reverse Battery Protection
- Over-Temperature / Over-Current Protection
- Available in SOT-223-3L and TO-220-3L Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM2940G-50-AA3-R#C71094UTC · SOT-223-4 | UTC | SOT-223-4 | 2,825 | ₹26.09 · 2,825 in stock | View |
 | LM340MP-5.0/TR#C3007957HGSEMI · SOT-223 | HGSEMI | SOT-223 | 3,805 | ₹25.82 · 3,805 in stock | View |
 | SSP7903P50FR#C5199841Siproin · SOT-223 | Siproin | SOT-223 | 450 | ₹34.83 · 450 in stock | View |
 | LM2940IMP-5.0/NOPB#C13991TI · SOT-223-4 | TI | SOT-223-4 | 440 | ₹220.50 · 440 in stock | View |
 | LM2940IMPX-5.0/NOPB#C2859859TI · SOT-223-4 | TI | SOT-223-4 | 1,617 | ₹160.81 · 1,617 in stock | View |
