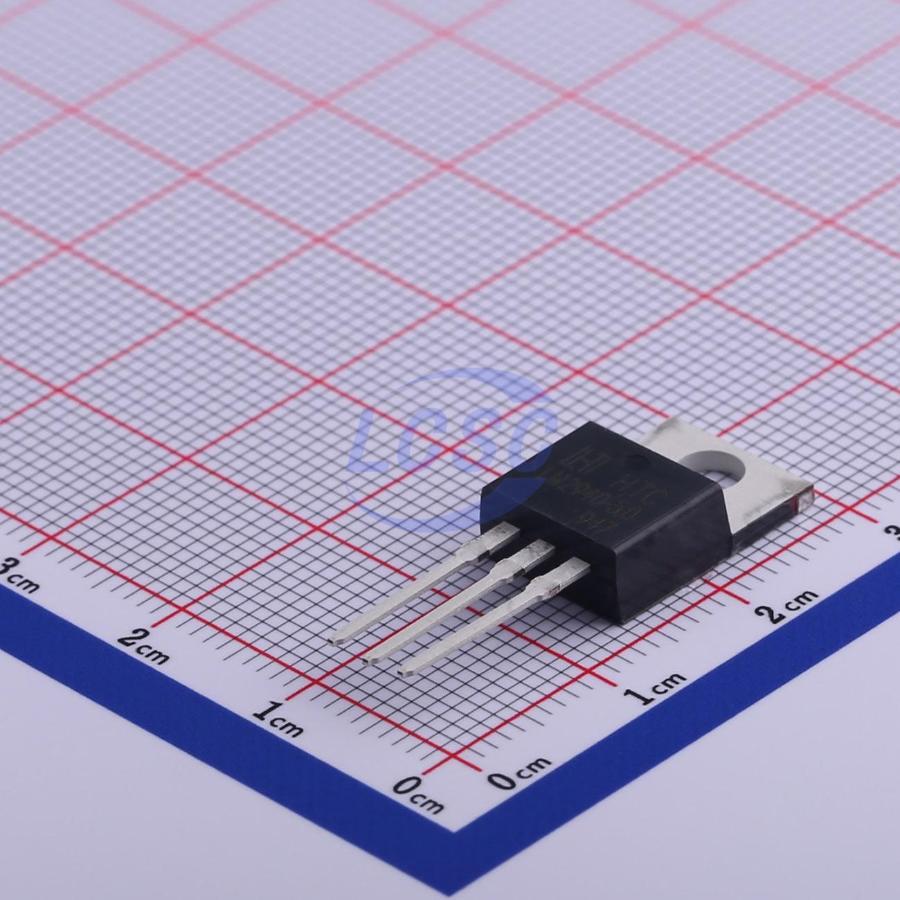

LM2940T-5.0
5V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS CompliantActive
1A Low Dropout Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM2940T-5.0
- Store part #
- C481672
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,999 in stock
#C481672
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.65 | ₹75.65 |
| 10+ | ₹61.27 | ₹612.70 |
| 50+ | ₹54.07 | ₹2,703.50 |
| 100+ | ₹47.10 | ₹4,710.00 |
| 500+ | ₹42.73 | ₹21,365.00 |
| 1,000+ | ₹40.55 | ₹40,550.00 |
1 × ₹75.65
₹75.65
excl. GST
₹89.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM2940T-5.0
₹75.65 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Operating Voltage
- 26V
- Output Current
- 1A
- Features
- Reverse polarity voltage protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
The LM2940 regulator features the ability to source 1A of output current with a dropout voltage of typically 0.4V and maximum of 0.63V over the entire temperature range. These device also finds applications in lower current, low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. LM2940 is available as fixed 3.3V, 5.0V output voltages. The LM2940 is offered in a SOT-223-3L and TO-220-3L.
Applications
- Battery Powered Equipment
- High-Efficiency “Green” Computer Systems
- Automotive Electronics
- High-Efficiency Linear Power Supplies
- High-Efficiency Post-Regulator For Switching Supply
Key features
- Guaranteed Output Current of 1A
- Maximum Input Voltage 26V
- Low Dropout Voltage 400mV
- Low Ground Current
- Accurate 1% Guaranteed Tolerance
- Extremely Fast Transient Response
- Reverse Battery Protection
- Over-Temperature / Over-Current Protection
- Available in SOT-223-3L and TO-220-3L Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM29150T-5.0#C596337HTC · TO-220 | HTC | TO-220 | 179 | ₹111.85 · 179 in stock | View |
 | LM7805TG#C5145466HANSCHIP semiconductor · TO-220-3L | HANSCHIP semiconductor | TO-220-3L | 210 | ₹24.42 · 210 in stock | View |
 | L7805CAT#C51898329GREENMICRO · TO-220-3 | GREENMICRO | TO-220-3 | 1,140 | ₹20.29 · 1,140 in stock | View |
 | LM2940T-5.0/LF08#C2866632TI · TO-220 | TI | TO-220 | 69 | ₹286.02 · 69 in stock | View |
 | LM2940T-5.0/NOPB#C308879TI · TO-220 | TI | TO-220 | 109 | ₹266.99 · 109 in stock | View |
