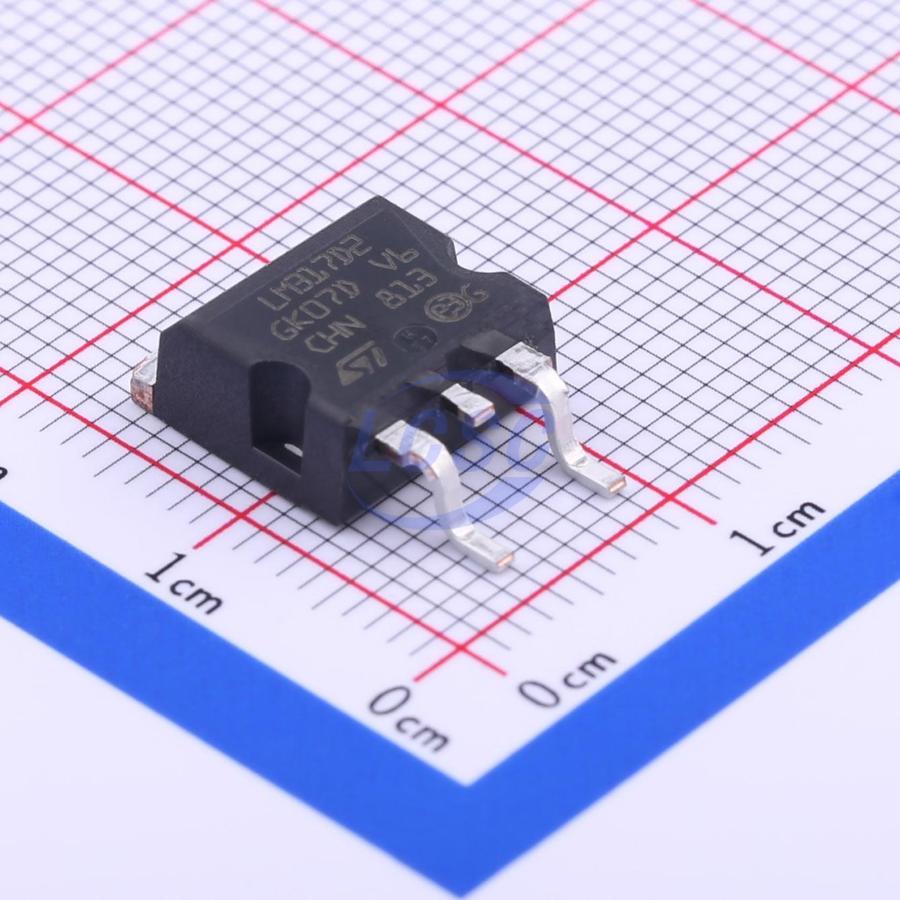

LM317D2T-TR
1.2V~37V Positive Adjustable TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
1.2V to 37V Adjustable Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- LM317D2T-TR
- Store part #
- C91673
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,997 in stock
#C91673
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.25 | ₹70.25 |
| 10+ | ₹55.51 | ₹555.10 |
| 30+ | ₹49.23 | ₹1,476.90 |
| 100+ | ₹41.42 | ₹4,142.00 |
| 500+ | ₹37.94 | ₹18,970.00 |
| 1,000+ | ₹36.00 | ₹36,000.00 |
1 × ₹70.25
₹70.25
excl. GST
₹82.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM317D2T-TR
₹70.25 for 1 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.108 g
Overview
The LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP and D²PAK packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Key features
- Output voltage range: 1.2 to 37 V
- Output current in excess of 1.5 A
- 0.1 % line and load regulation
- Floating operation for high voltages
- Complete series of protections: current limiting, thermal shutdown and SOA control
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317D2TG#C232415onsemi · TO-263-2 | onsemi | TO-263-2 | 327 | ₹111.82 · 327 in stock | View |
 | LM317S2/TR#C5116302HGSEMI · TO-263-2L | HGSEMI | TO-263-2L | 665 | ₹39.89 · 665 in stock | View |
 | LM317BD2TR4G#C173771onsemi · TO-263-2 | onsemi | TO-263-2 | 1,492 | ₹75.05 · 1,492 in stock | View |
 | LM317A#C19626419YFW · TO-263 | YFW | TO-263 | 550 | ₹22.94 · 550 in stock | View |
 | LM317D2T-TR-CN#C49006726ChipNobo · TO-263 | ChipNobo | TO-263 | 355 | ₹38.62 · 355 in stock | View |
