MSKSEMI

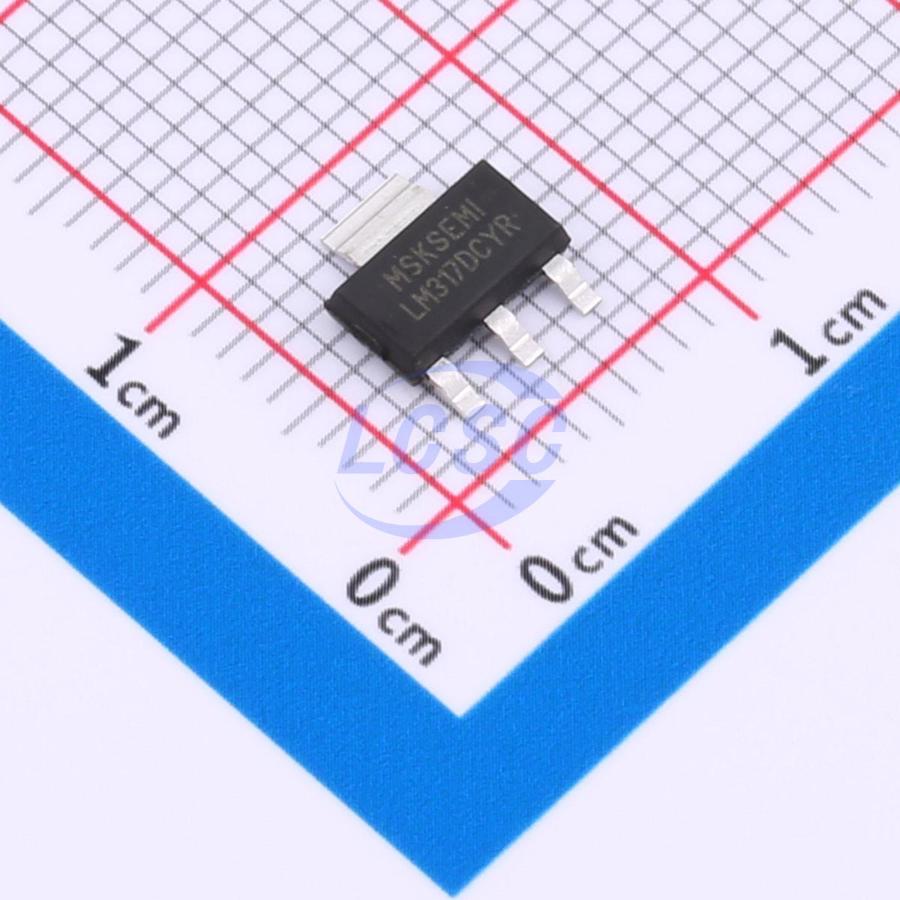

LM317DCYR-MS

1.2V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-223RoHSActive

Adjustable 3-terminal positive voltage regulator

Manufacturer: MSKSEMI
Manufacturer part #: LM317DCYR-MS
Store part #: C7473164
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,110 in stock

#C7473164

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹23.02	₹115.10
50+	₹18.09	₹904.50
150+	₹15.96	₹2,394.00
500+	₹13.32	₹6,660.00
2,500+	₹12.15	₹30,375.00
5,000+	₹11.43	₹57,150.00

Quantity (min 5, multiples of 5)

5 × ₹23.02

₹115.10

excl. GST

₹135.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM317DCYR-MS

₹115.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V~37V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃@(Tj)
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 1.5A
Features: Thermal shutdown;Short Circuit Protection;Over Current Protection
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.21 g

Overview

This monolithic integrated circuit is an adjustable 3-terminal positive voltage regulator designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V. It employs internal current limiting, thermal shut-down and safe area compensation.
