TIDatasheet (PDF)

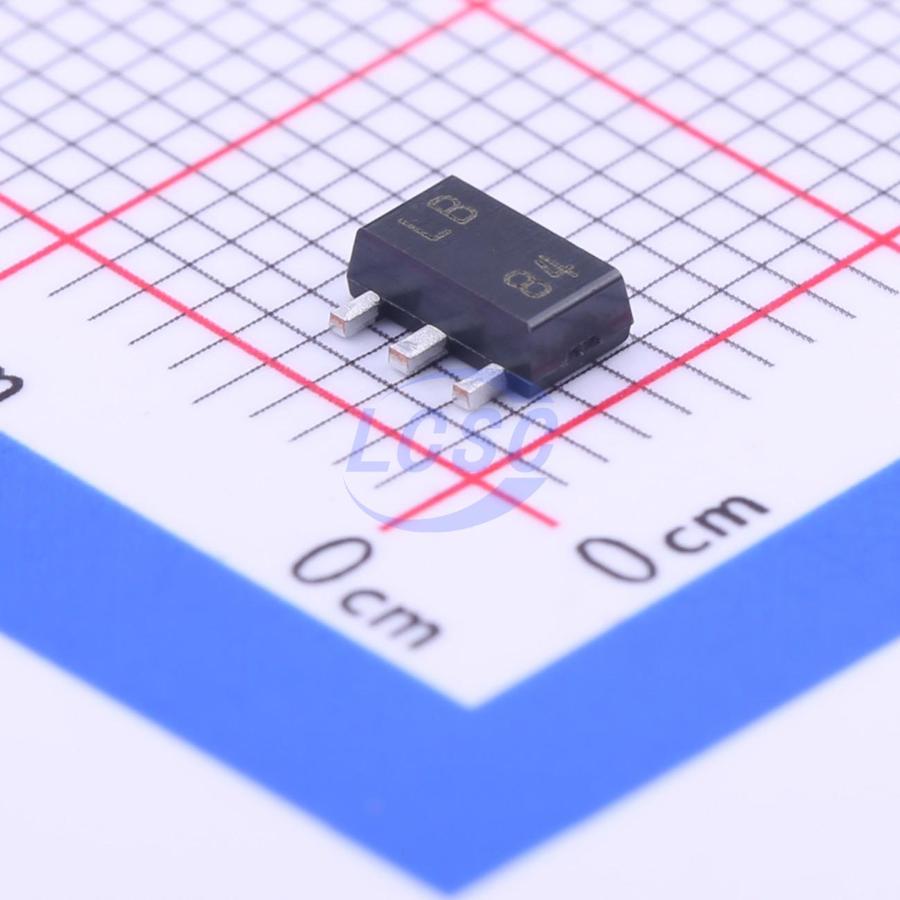

LM317LIPK
1.25V~32V Positive Adjustable SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS3 CompliantActive
100mA, 35V Adjustable Linear Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM317LIPK
- Store part #
- C112537
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,025 in stock
#C112537
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.69 | ₹188.45 |
| 50+ | ₹29.62 | ₹1,481.00 |
| 150+ | ₹26.17 | ₹3,925.50 |
| 1,000+ | ₹19.91 | ₹19,910.00 |
| 2,000+ | ₹17.99 | ₹35,980.00 |
| 5,000+ | ₹16.84 | ₹84,200.00 |
5 × ₹37.69
₹188.45
excl. GST
₹222.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM317LIPK
₹188.45 for 5 + GST
Specifications
- Output Voltage
- 1.25V~32V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 32V
- Output Current
- 100mA
- Features
- Over Current Protection;Thermal shutdown;Enable control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
Output Voltage Range Adjustable 1.25 V to 32 V When Used With External Resistor Divider The LM317L device is an adjustable, 3 - terminal, positive - voltage regulator capable of supplying 100 mA over an output - voltage range of 1.25 V to 32 V. It is exceptionally easy to use and requires only two external resistors to set the output voltage.
Applications
- Electronic Points of Sale
- Medical, Health, and Fitness Applications
- Printers
- Appliances and White Goods
- TV Set - Top Boxes
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317LF#C126054HTC · SOT-89-3 | HTC | SOT-89-3 | 10,845 | ₹39.65 · 10,845 in stock | View |
 | LM317LTDTR(XBLW)#C19267470XBLW · SOT-89-3 | XBLW | SOT-89-3 | 6,795 | ₹14.78 · 6,795 in stock | View |
 | HT317ARDZ#C2898742HTCSEMI · SOT-223 | HTCSEMI | SOT-223 | 2,190 | ₹39.86 · 2,190 in stock | View |
 | HT317LRHZ#C5143014HTCSEMI · SOT-89 | HTCSEMI | SOT-89 | 66 | ₹10.76 · 66 in stock | View |
 | LM317L#C52037874GOODWORK · SOT-89 | GOODWORK | SOT-89 | 7,720 | ₹11.67 · 7,720 in stock | View |
