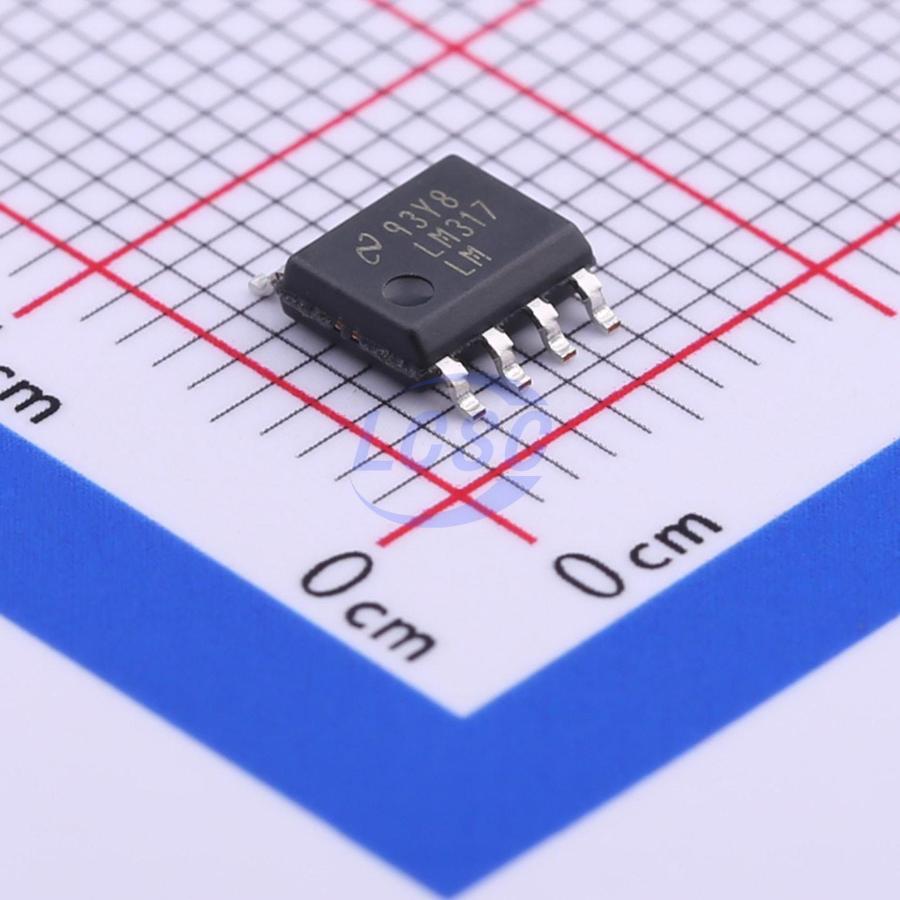

LM317LMX/NOPB

The LM317L-N is an adjustable positive voltage regulator capable of supplying 100 mA over a 1.2-V to 37-V output range. The LM317L-N is easy to use and requires only two external resistors to set the output voltage. Both line and load regulation are better than standard fixed regulators. The LM317L-N is available packaged in a standard, easy-to-use TO-92 transistor package. The LM317L-N offers full overload protection. Included on the chip are current limit, thermal overload protection, and safe area protection. Normally, no capacitors are required unless the device is situated more than 6 inches from the input filter capacitors, in which case an input bypass is required. The LM317L-N uses floating topology and sees only the input-to-output differential voltage, therefore supplies of several hundred volts can be regulated, provided the maximum input-to-output differential is not exceeded. The device makes a simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317L-N can be used as a precision current regulator. The LM317L-N is available in a standard 3-pin TO-92 transistor package, the 8-pin SOIC package, and 6-pin DSBGA package. The LM317L-N is rated for operation over a -40°C to 125°C range.

Applications

• Automotive LED Lighting
• Battery Chargers
• Post Regulation for Switching Supplies
• Constant-Current Regulators
• Microprocessor Supplies

Key features

• Adjustable Output Down to 1.2 V
• 100-mA Output Current Capable of Handling up to 40 V VIN
• Line Regulation Typically 0.01% /V
• Load Regulation Typically 0.1% /A
• No Output Capacitor Required
• Current Limit Constant With Temperature
• Eliminates the Need to Stock Many Voltages
• Standard 3-Lead Transistor Package
• 80-dB Ripple Rejection
• Available in 3-Pin TO-92, 8-Pin SOIC, or 6-pin DSBGA Packages
• Output is Short-Circuit Protected
