STDatasheet (PDF)

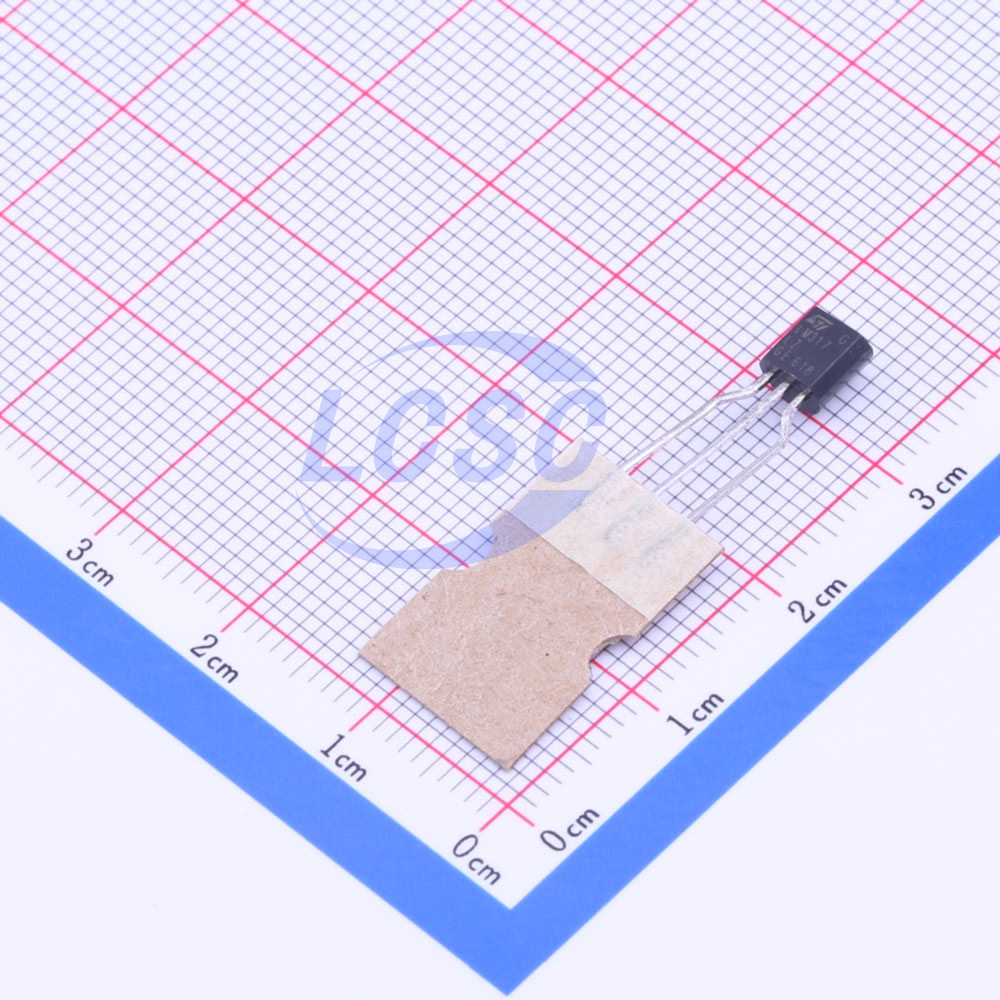

LM317LZ-TR
1.2V~37V Positive Adjustable TO-92-2.54mm Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-2.54mmROHS3 CompliantActive
Low Current 1.2 to 37 V Adjustable Regulator
- Manufacturer
- ST
- Manufacturer part #
- LM317LZ-TR
- Store part #
- C140389
- Package / case
- TO-92-2.54mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,365 in stock
#C140389
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.04 | ₹180.20 |
| 50+ | ₹28.09 | ₹1,404.50 |
| 150+ | ₹24.67 | ₹3,700.50 |
| 500+ | ₹20.43 | ₹10,215.00 |
| 2,000+ | ₹18.54 | ₹37,080.00 |
| 4,000+ | ₹17.40 | ₹69,600.00 |
5 × ₹36.04
₹180.20
excl. GST
₹212.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM317LZ-TR
₹180.20 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.553 g
Overview
The LM217L/LM317L are monolithic integrated circuits in SO-8 and TO-92 packages intended for use as positive adjustable voltage regulators. They are designed to supply up to 100 mA of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Key features
- Outuput voltage range: 1.2 to 37 V
- Output current up to 100 mA
- Line regulation typ. 0.01%
- Load regulation typ. 0.1%
- Thermal overload protection
- Short-circuit protection
- Output transition safe area compensation
- Floating operation for high voltage applications
