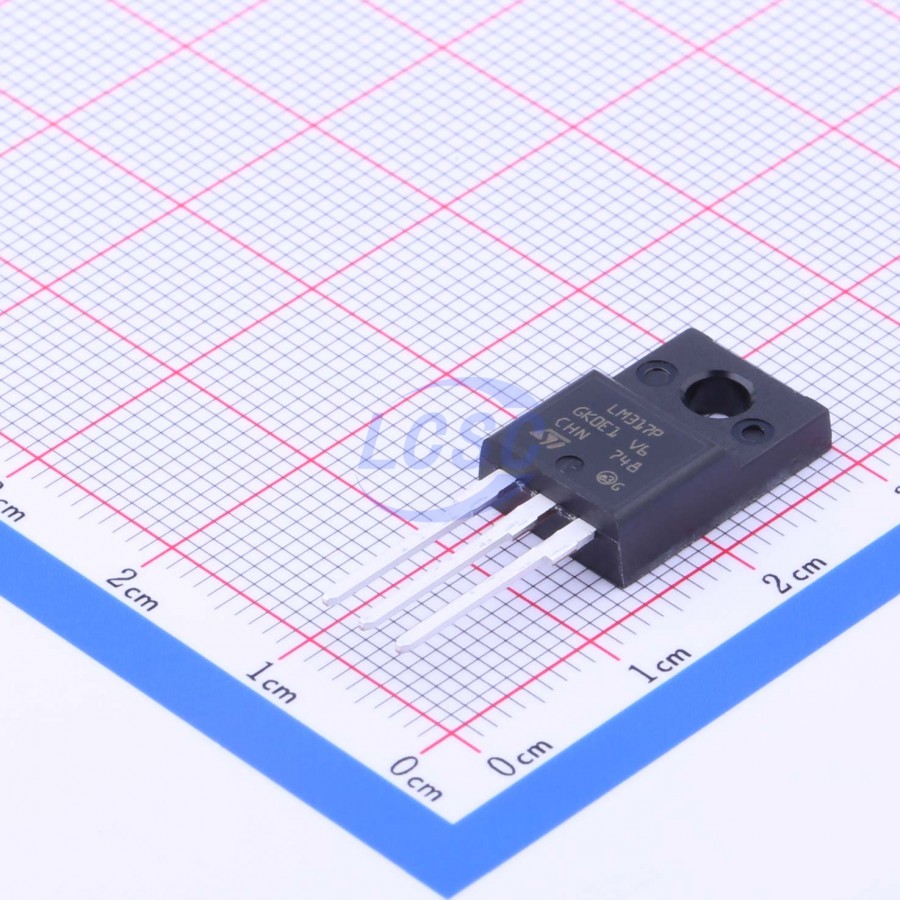

LM317P
1.2V~37V Positive Adjustable TO-220F Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220FROHS3 CompliantActive
1.2V to 37V Adjustable Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- LM317P
- Store part #
- C138772
- Package / case
- TO-220F
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
769 in stock
#C138772
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹242.52 | ₹242.52 |
| 10+ | ₹204.51 | ₹2,045.10 |
| 50+ | ₹180.54 | ₹9,027.00 |
| 100+ | ₹156.14 | ₹15,614.00 |
| 500+ | ₹145.12 | ₹72,560.00 |
| 1,000+ | ₹140.37 | ₹1,40,370.00 |
1 × ₹242.52
₹242.52
excl. GST
₹286.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM317P
₹242.52 for 1 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
The LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP and D²PAK packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Key features
- Output voltage range: 1.2 to 37 V
- Output current in excess of 1.5 A
- 0.1 % line and load regulation
- Floating operation for high voltages
- Complete series of protections: current limiting, thermal shutdown and SOA control
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317T(XBLW)#C18723602XBLW · TO-220 | XBLW | TO-220 | On request | ₹27.54 · 0 in stock | View |
