STDatasheet (PDF)

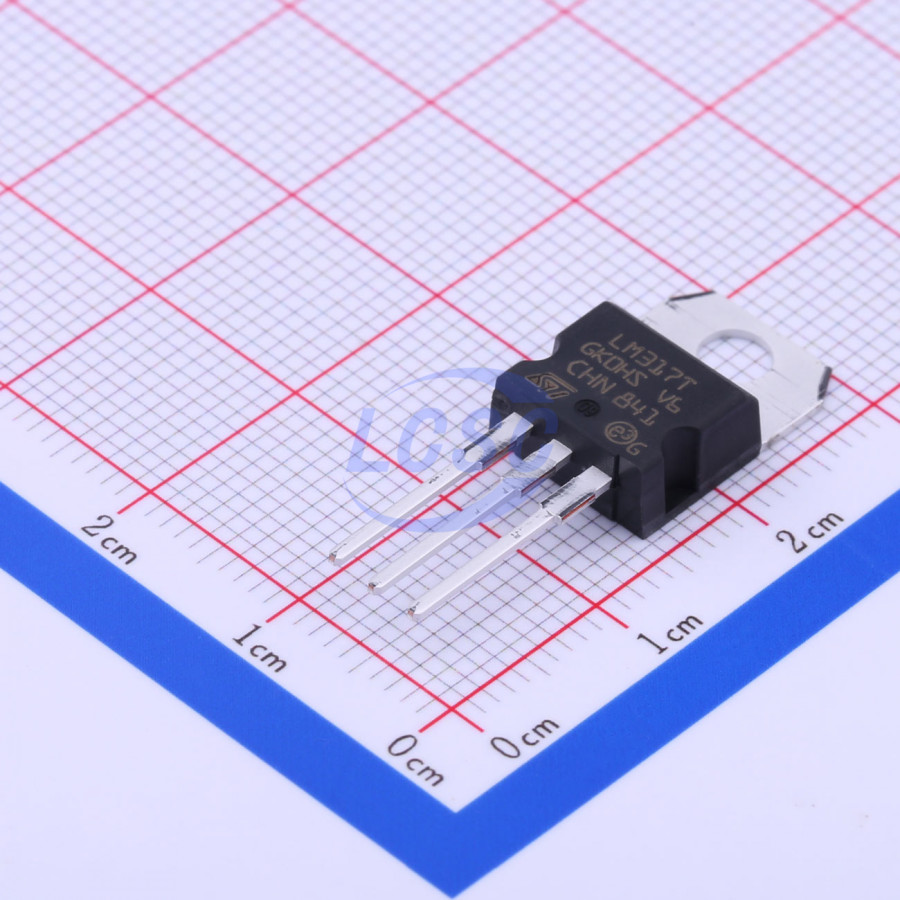

LM317T
1.2V~37V Positive Adjustable TO-220AB-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220AB-3ROHS3 CompliantActive
1.2V to 37V Adjustable Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- LM317T
- Store part #
- C361026
- Package / case
- TO-220AB-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
493 in stock
#C361026
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.98 | ₹59.98 |
| 10+ | ₹46.50 | ₹465.00 |
| 30+ | ₹40.85 | ₹1,225.50 |
| 100+ | ₹33.68 | ₹3,368.00 |
| 500+ | ₹30.43 | ₹15,215.00 |
| 1,000+ | ₹28.47 | ₹28,470.00 |
1 × ₹59.98
₹59.98
excl. GST
₹70.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM317T
₹59.98 for 1 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.14 g
Overview
The LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP and D²PAK packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Applications
- Adjustable voltage regulation system
- Precision current regulation system
- High-voltage power regulation
- 12V battery charger
- Voltage regulator with protection diode
- Slow-start 15V regulator
- 5V electronic shutdown regulator
- Digitally selectable output regulator
- Current-limited 6V charger
Key features
- Output voltage range: 1.2 to 37 V
- Output current in excess of 1.5 A
- 0.1% line and load regulation
- Floating operation for high voltages
- Complete series of protections: current limiting, thermal shutdown and SOA control
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317T#C434571HGSEMI · TO-220-3 | HGSEMI | TO-220-3 | 1,280 | ₹40.93 · 1,280 in stock | View |
 | LM317AT#C3007897HGSEMI · TO-220-3 | HGSEMI | TO-220-3 | 35 | ₹41.09 · 35 in stock | View |
 | LM317AL-TA3-T#C5157615UTC · TO-220 | UTC | TO-220 | 50 | ₹40.76 · 50 in stock | View |
 | LM317TAT#C52204771GREENMICRO · TO-220-3 | GREENMICRO | TO-220-3 | 1,155 | ₹21.90 · 1,155 in stock | View |
 | LM317T#C5366138Minos · TO-220 | Minos | TO-220 | 55 | ₹28.18 · 55 in stock | View |
