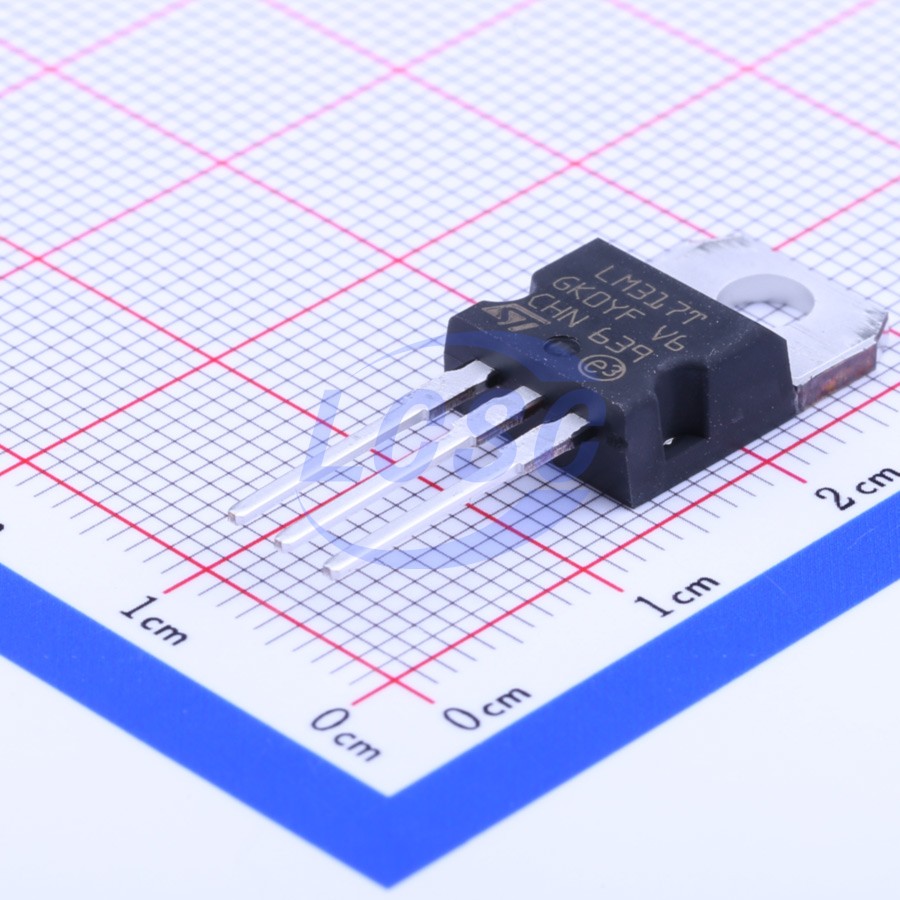

LM317T-DG
1.2V~37V Positive Adjustable TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
1.2V to 37V Adjustable Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- LM317T-DG
- Store part #
- C18718
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24,417 in stock
#C18718
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.84 | ₹72.84 |
| 10+ | ₹60.67 | ₹606.70 |
| 50+ | ₹52.19 | ₹2,609.50 |
| 100+ | ₹45.01 | ₹4,501.00 |
| 500+ | ₹42.84 | ₹21,420.00 |
| 1,200+ | ₹41.32 | ₹49,584.00 |
1 × ₹72.84
₹72.84
excl. GST
₹85.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM317T-DG
₹72.84 for 1 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.086 g
Overview
The LM117, LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP, TO-3 and D²PAK packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Key features
- Output voltage range: 1.2 to 37 V
- Output current in excess of 1.5 A
- 0.1 % line and load regulation
- Floating operation for high voltages
- Complete series of protections: current limiting, thermal shutdown and SOA control
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317BT#C2969918ST · TO-220-3 | ST | TO-220-3 | 197 | ₹118.38 · 197 in stock | View |
 | LM317#C426567Slkor · TO-220 | Slkor | TO-220 | 10 | ₹51.25 · 10 in stock | View |
 | LM317TG#C89320onsemi · TO-220 | onsemi | TO-220 | 649 | ₹64.09 · 649 in stock | View |
 | LM317T#C3014307UMW · TO-220 | UMW | TO-220 | 28,500 | ₹35.87 · 28,500 in stock | View |
 | LM317T#C5366138Minos · TO-220 | Minos | TO-220 | 70 | ₹28.18 · 70 in stock | View |
