GREENMICRODatasheet (PDF)

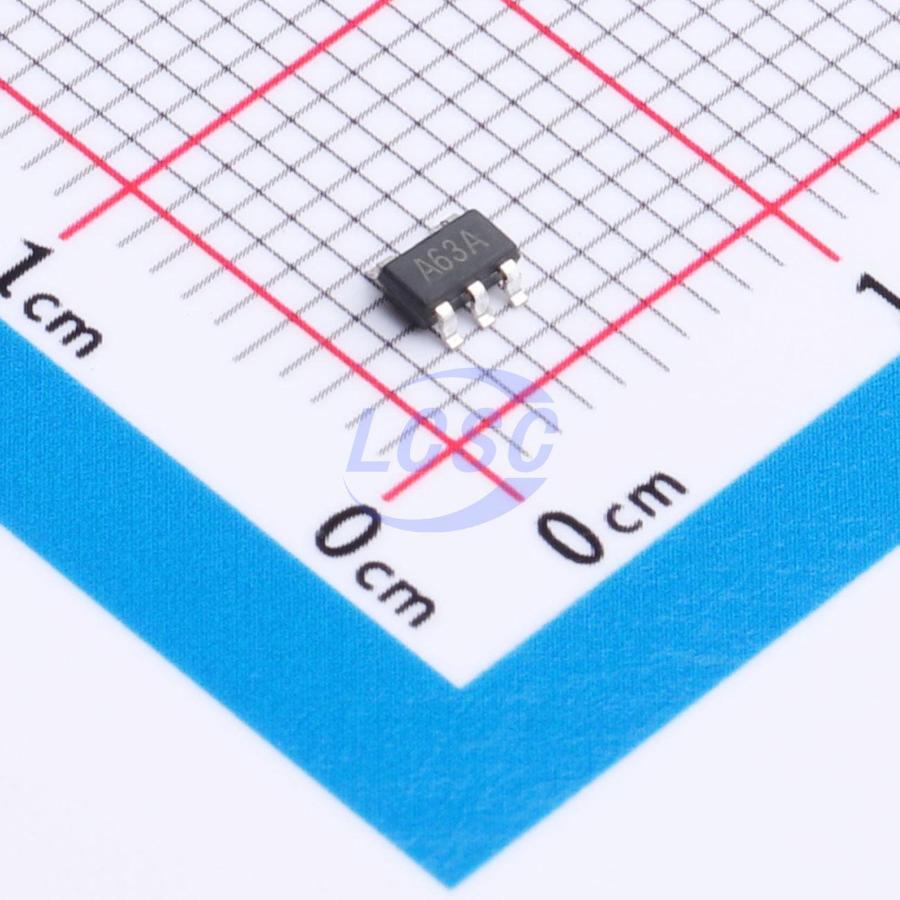

LM321MF011
40mA 1 3mV 400V/ms 85dB 45nA 1MHz 430uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LM321MF011
- Store part #
- C51026323
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,880 in stock
#C51026323
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.75 | ₹95.00 |
| 200+ | ₹3.72 | ₹744.00 |
| 600+ | ₹3.15 | ₹1,890.00 |
| 3,000+ | ₹2.79 | ₹8,370.00 |
| 9,000+ | ₹2.50 | ₹22,500.00 |
| 21,000+ | ₹2.34 | ₹49,140.00 |
20 × ₹4.75
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321MF011
₹95.00 for 20 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 45nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 430uA
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.043 g
Overview
This device is a high-performance, cost-effective, low-power op-amp. It features a high unity-gain bandwidth and a specified slew rate of 0.4V/μs, with a quiescent current of only 430μA/amplifier (5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also provides stable drive capability for large capacitive loads. The device is available in a SOT-23 package. Overall, it is a low-power, wide supply voltage range, high-performance op-amp designed for a wide variety of applications in a cost-effective manner without sacrificing valuable board space.
Applications
- Charger
- Power Adapter
- Sensor Interface
- Medical Instrument
- Audio Output
Key features
- Gain-bandwidth product: 1MHz
- Low supply current: 430μA
- Low input bias current: 45nA
- Wide supply voltage range: +3V to 32V
- Unity-gain stable
- Stable drive for high capacitive loads
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV321ICR#C52204658GREENMICRO · SOT-23-5 | GREENMICRO | SOT-23-5 | 14,610 | ₹6.40 · 14,610 in stock | View |
 | GM321DR#C49329010GREENMICRO · SOT-23-5 | GREENMICRO | SOT-23-5 | 2,420 | ₹4.42 · 2,420 in stock | View |
 | GM6001DR#C49329003GREENMICRO · SOT-23-5 | GREENMICRO | SOT-23-5 | 2,370 | ₹12.03 · 2,370 in stock | View |
 | MCP6001OB#C51026333GREENMICRO · SOT-23-5 | GREENMICRO | SOT-23-5 | 1,735 | ₹11.79 · 1,735 in stock | View |
