PUOLOP

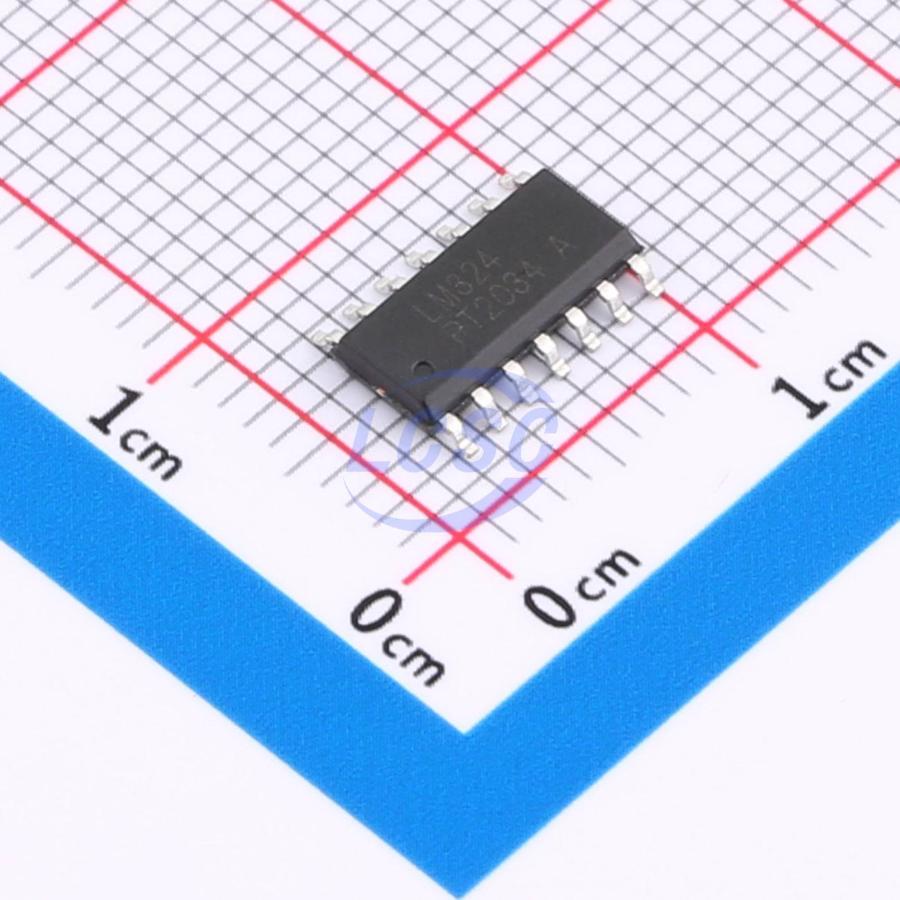

LM324

Standard (General Purpose) Amplifier 4 Circuit SOIC-14

SOIC-14ROHS CompliantActive

Quad operational amplifier integrated circuit

Manufacturer: PUOLOP
Manufacturer part #: LM324
Store part #: C351427
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,360 in stock

#C351427

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹15.74	₹78.70
50+	₹13.31	₹665.50
150+	₹12.08	₹1,812.00
500+	₹11.17	₹5,585.00
3,000+	₹9.50	₹28,500.00
6,000+	₹9.13	₹54,780.00

Quantity (min 5, multiples of 5)

5 × ₹15.74

₹78.70

excl. GST

₹92.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM324

₹78.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 4
Vos - Input Offset Voltage: 5mV
Input Offset Current(Ios): 100nA
Operating Temperature: 0℃~+70℃
Ib - Input Bias Current: 250nA
Common Mode Rejection Ratio(CMRR): 65dB
Quiescent Current: 600uA
Features: Built-in compensation
Dual Supply: -15V~-1.5V;1.5V~15V
Single Supply: 3V~30V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.243 g
