STDatasheet (PDF)

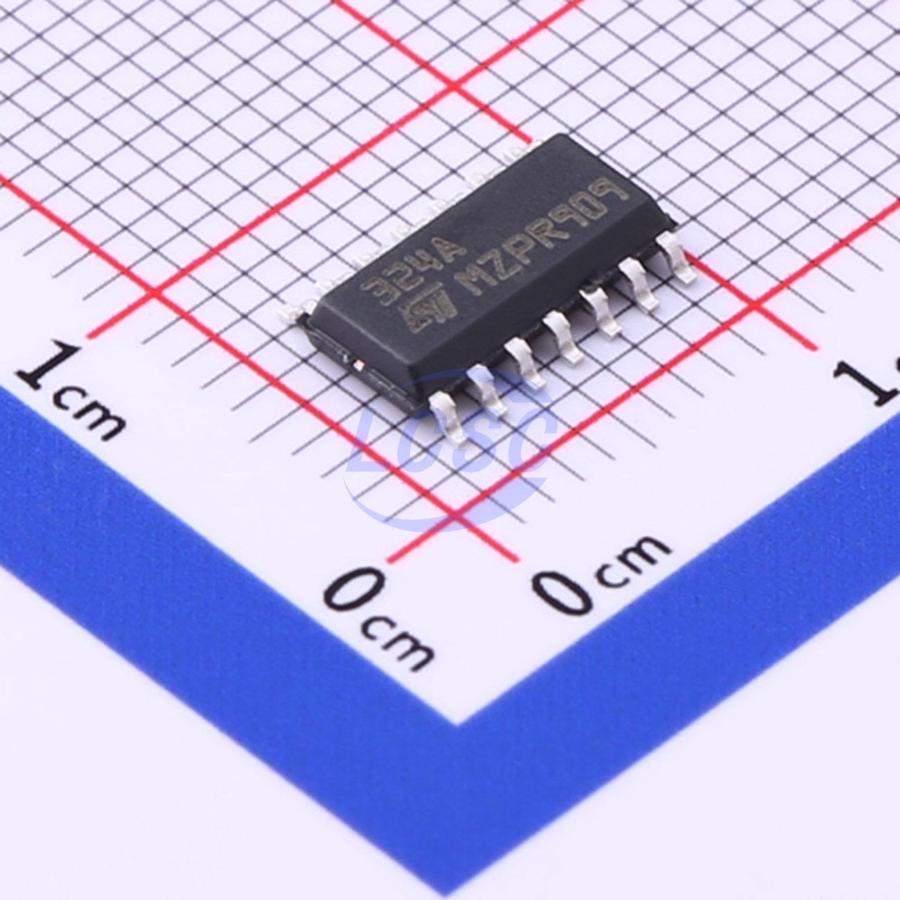

LM324ADT
40mA 4 3mV 400V/ms 80dB 100nA 375uA 1.3MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Low-power quad operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- LM324ADT
- Store part #
- C80791
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,465 in stock
#C80791
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.65 | ₹138.25 |
| 50+ | ₹21.43 | ₹1,071.50 |
| 150+ | ₹18.77 | ₹2,815.50 |
| 500+ | ₹15.45 | ₹7,725.00 |
| 2,500+ | ₹13.97 | ₹34,925.00 |
| 5,000+ | ₹13.08 | ₹65,400.00 |
5 × ₹27.65
₹138.25
excl. GST
₹163.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM324ADT
₹138.25 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 20nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 100nA
- Input Offset Voltage Drift(Vos TC)
- 30uV/℃
- Quiescent Current
- 375uA
- Gain Bandwidth Product
- 1.3MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.478 g
Overview
These circuits consist of four independent, high gain operational amplifiers with frequency compensation implemented internally. They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low-power supply current drain is independent of the magnitude of the power supply voltage.
Applications
- AC-coupled inverting amplifier
- High input impedance adjustable-gain DC instrumentation amplifier
- AC-coupled non-inverting amplifier
- DC summing circuit
Key features
- Wide gain bandwidth: 1.3 MHz
- Input common mode voltage range includes ground
- Large voltage gain: 100 dB
- Very low supply current/amplifier: 375 μA
- Low input bias current: 20 nA
- Low input voltage: 3 mV max
- Low input offset current: 2 nA
- Wide power supply range: Single supply: 3 V to 30 V Dual supplies: ±1.5 V to ±15 V
