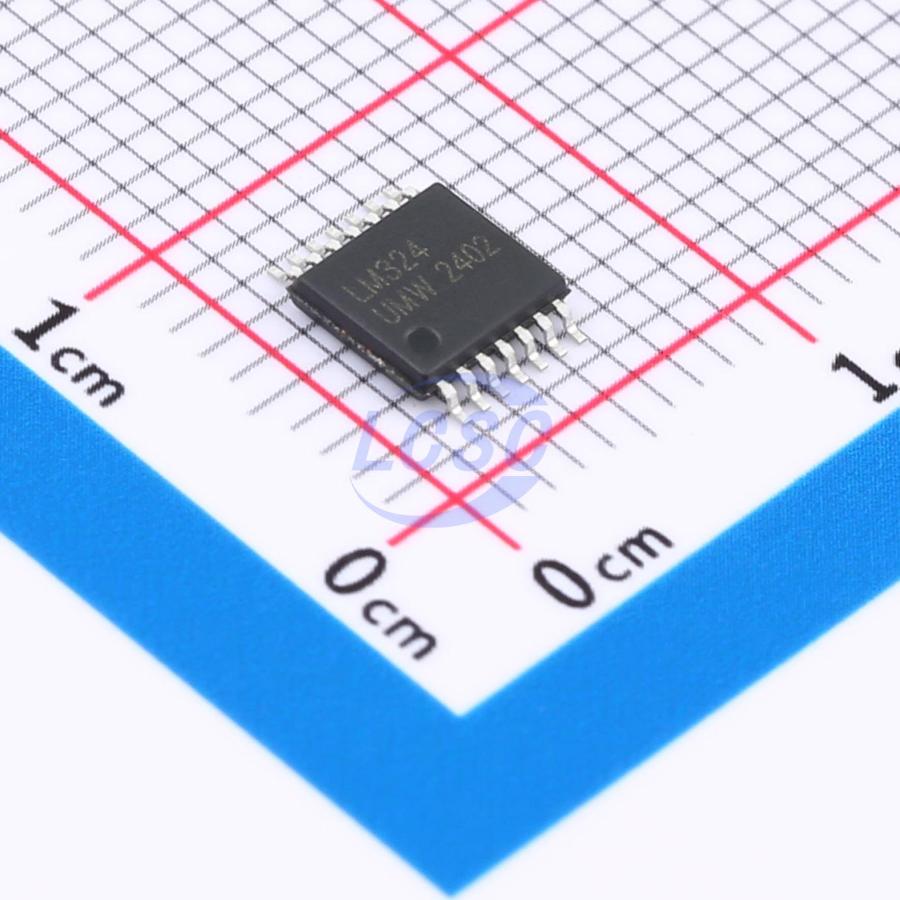

LM324APT(UMW)
20mA 4 3mV 80dB 20nA 1.5mA TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS CompliantActive
Quadruple Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- LM324APT(UMW)
- Store part #
- C22373378
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,060 in stock
#C22373378
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.53 | ₹67.65 |
| 50+ | ₹11.81 | ₹590.50 |
| 150+ | ₹10.97 | ₹1,645.50 |
| 500+ | ₹10.32 | ₹5,160.00 |
| 2,500+ | ₹9.80 | ₹24,500.00 |
| 4,000+ | ₹9.55 | ₹38,200.00 |
5 × ₹13.53
₹67.65
excl. GST
₹79.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM324APT(UMW)
₹67.65 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 1.5mA
- Dual Supply
- -16V~16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.193 g
Overview
UMW LM324 contains four independent, high-gain, internally frequency-compensated op-amps designed to operate from a single supply over a wide voltage range. Split supply operation is also supported, with low supply current drain independent of the supply voltage magnitude.
Applications
- Transducer amplifiers
- DC gain blocks
- All standard op-amp circuits
Key features
- Wide supply voltage range
- Low supply current consumption, independent of supply voltage
- Low input bias current
- Low input offset voltage and offset current
- Input common-mode voltage range includes ground potential
- Differential input voltage range equal to supply voltage
- Typical DC voltage gain of 100 V/mV
- Internal frequency compensation
