UMWDatasheet (PDF)

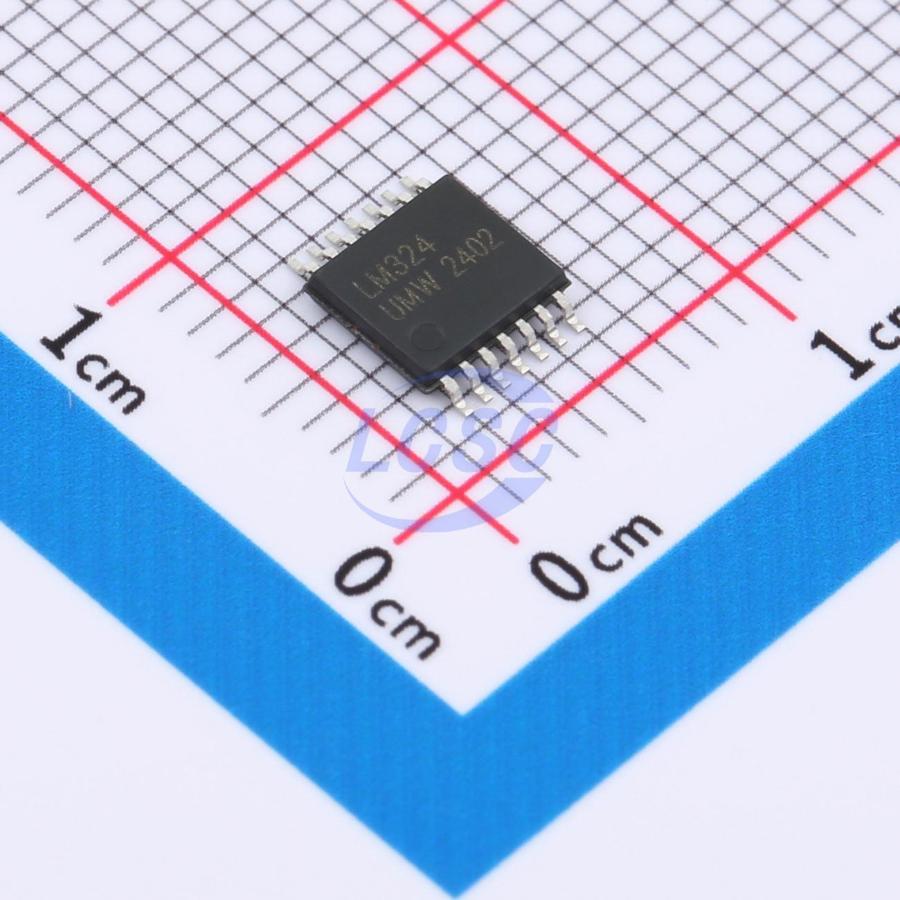

LM324PT(UMW)
20mA 4 3mV 80dB 20nA 1.5mA TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS CompliantActive
Quadruple Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- LM324PT(UMW)
- Store part #
- C22373377
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,900 in stock
#C22373377
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.80 | ₹79.00 |
| 50+ | ₹13.80 | ₹690.00 |
| 150+ | ₹12.95 | ₹1,942.50 |
| 500+ | ₹11.88 | ₹5,940.00 |
| 2,500+ | ₹11.40 | ₹28,500.00 |
| 4,000+ | ₹11.13 | ₹44,520.00 |
5 × ₹15.80
₹79.00
excl. GST
₹93.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM324PT(UMW)
₹79.00 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 1.5mA
- Features
- Built-in compensation
- Dual Supply
- -16V~16V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
Overview
UMW LM324 contains four independent, high-gain, internally frequency-compensated op-amps designed to operate from a single supply over a wide voltage range. Split supply operation is also supported, with low supply current drain independent of the supply voltage magnitude.
Applications
- Transducer amplifiers
- DC gain blocks
- All standard op-amp circuits
Key features
- Wide supply voltage range
- Low supply current consumption, independent of supply voltage
- Low input bias current
- Low input offset voltage and offset current
- Input common-mode voltage range includes ground potential
- Differential input voltage range equal to supply voltage
- Typical DC voltage gain of 100 V/mV
- Internal frequency compensation
