STDatasheet (PDF)

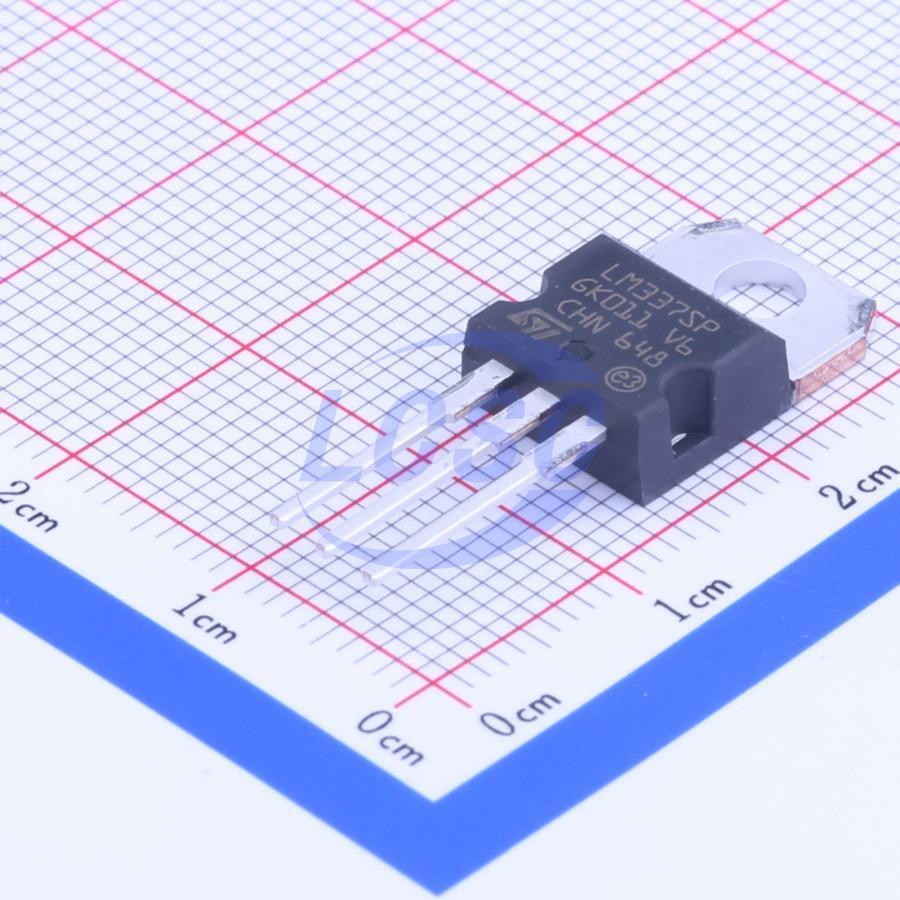

LM337SP
1.2V~37V Negative Adjustable TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
Three-Terminal Adjustable Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- LM337SP
- Store part #
- C118272
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
269 in stock
#C118272
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹199.69 | ₹199.69 |
| 10+ | ₹164.03 | ₹1,640.30 |
| 30+ | ₹144.45 | ₹4,333.50 |
| 100+ | ₹122.26 | ₹12,226.00 |
| 500+ | ₹112.24 | ₹56,120.00 |
| 1,000+ | ₹107.90 | ₹1,07,900.00 |
| 2,000+ | ₹106.37 | ₹2,12,740.00 |
| 4,000+ | ₹105.28 | ₹4,21,120.00 |
1 × ₹199.69
₹199.69
excl. GST
₹235.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM337SP
₹199.69 for 1 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Negative
- Output Current
- 1.5A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
The LM337 series are adjustable 3-terminal negative voltage regulators capable of supplying in excess -1.5 A over a -1.2 to -37 V output voltage range. They are exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, LM337 regulators are supplied in standard transistor packages which are easily mounted and handled. In addition to higher performance than fixed regulators, the LM337 series offer full overload protection available only in integrated circuits.
Key features
- Output voltage adjustable down to VREF
- 1.5 A guaranteed output current
- 0.3%/v typical load regulation
- 0.01 %/v typical line regulation
- Current limit constant with temperature
- Ripple rejection: 77 dB
- Standard 3-lead transistor packages
- Excellent thermal regulation: 0.002%/v 50 ppm/°C temperature coefficient
