HXY MOSFETDatasheet (PDF)

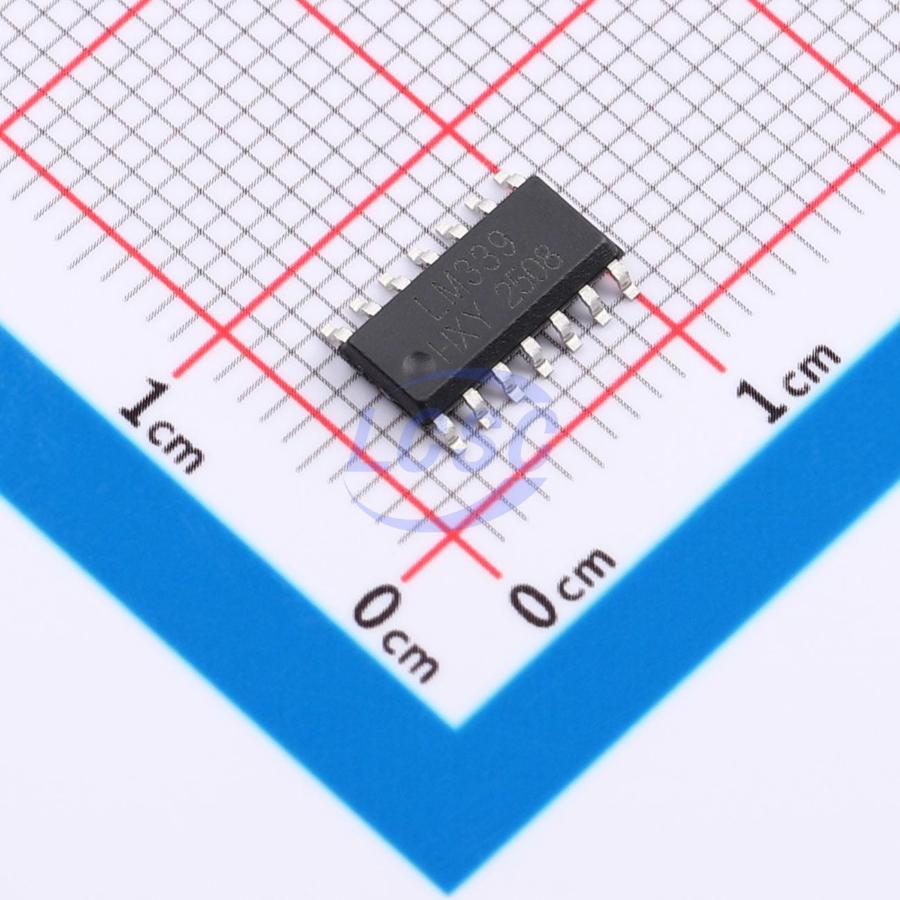

LM339-HXY
4mV 65nA Four channels SOP-14 Linear Comparators
SOP-14RoHSActive
Voltage Comparators
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- LM339-HXY
- Store part #
- C18198379
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C18198379
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.81 | ₹59.05 |
| 50+ | ₹9.34 | ₹467.00 |
| 150+ | ₹8.10 | ₹1,215.00 |
| 500+ | ₹7.17 | ₹3,585.00 |
| 2,500+ | ₹6.43 | ₹16,075.00 |
| 4,000+ | ₹6.06 | ₹24,240.00 |
5 × ₹11.81
₹59.05
excl. GST
₹69.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339-HXY
₹59.05 for 5 + GST
Specifications
- Quiescent Current
- 600uA
- Output Mode
- TTL;CMOS;DTL
- Propagation Delay Time
- 350ns
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1.5V~15V;-15V~-1.5V
- Vos - Input Offset Voltage
- 4mV
- Ib - Input Bias Current
- 65nA
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 50nA
- Response Time (tr)
- 1400ns
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
LM339 contains four independent voltage comparators, specifically designed to operate from a single supply over a wide voltage range.
Key features
- Single or dual supply operation
- Wide supply voltage range: Vcc=3V~30V or ±1.5V to ±15V
- Input common-mode voltage range includes ground
- Low supply current: typical Icc=0.8mA
- Low input bias current: typical Ibias=25nA
- Output compatible with TTL, DTL, and CMOS logic systems
