XBLWDatasheet (PDF)

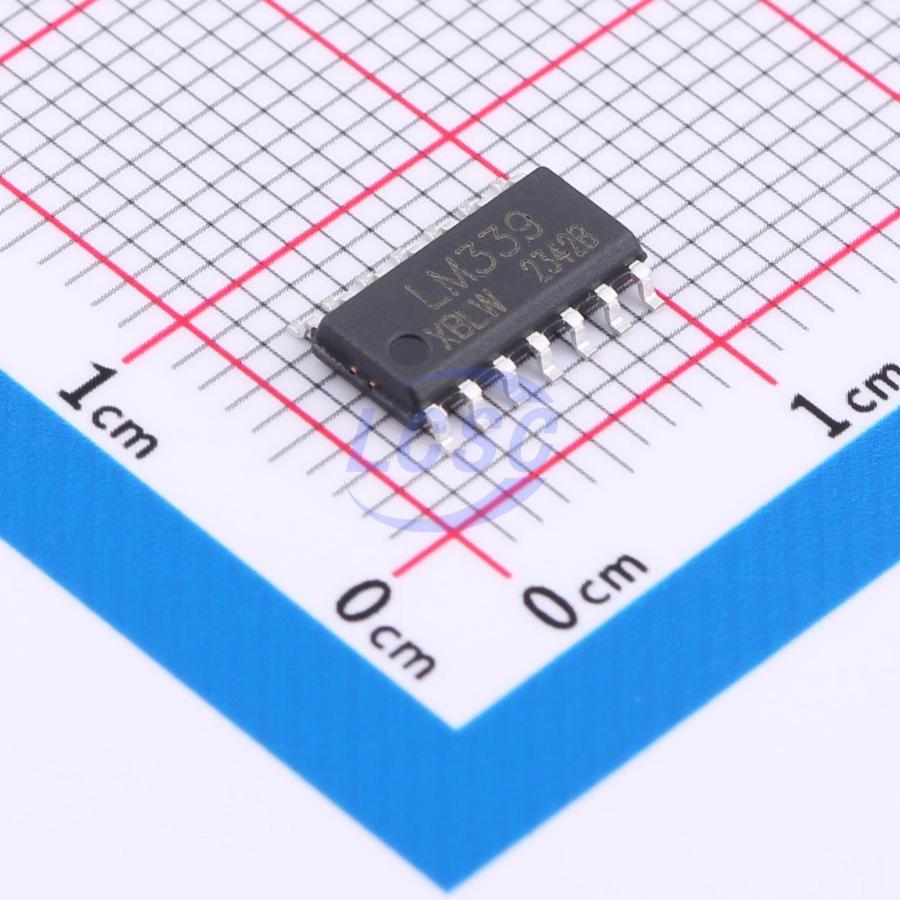

LM339DTR(XBLW)
5mV 25nA Four channels SOP-14 Linear Comparators RoHS
SOP-14ROHS CompliantActive
Quad Voltage Comparators
- Manufacturer
- XBLW
- Manufacturer part #
- LM339DTR(XBLW)
- Store part #
- C19267475
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,080 in stock
#C19267475
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.44 | ₹57.20 |
| 50+ | ₹9.05 | ₹452.50 |
| 150+ | ₹7.85 | ₹1,177.50 |
| 500+ | ₹6.95 | ₹3,475.00 |
| 2,500+ | ₹6.23 | ₹15,575.00 |
| 5,000+ | ₹5.87 | ₹29,350.00 |
5 × ₹11.44
₹57.20
excl. GST
₹67.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339DTR(XBLW)
₹57.20 for 5 + GST
Specifications
- Quiescent Current
- 800uA
- Output Mode
- TTL;CMOS
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 5mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
The LM339 is a quad voltage integrated comparators, mainly obtained in consumer and industrial electronics products, and designed for use in level detection, low- level sensing. It is available in DIP14/SOP14/TSSOP14 package.
Applications
- Vacuum robot
- Single phase UPS
- Server PSU
- Cordless power tool
- Wireless infrastructure
- Appliances
- Building automation
- Factory automation & control
- Motor drives
- Infotainment & cluster
Key features
- Wide Supply Voltage Range
- Single Supplies: 2.0V to 36V
- Dual Supplies: ±1.0V to ±18V
- Single or Split Supply Operation
- Low Input Biasing Current: 25 nA (Typ)
- Low Input Offset Current: 5.0 nA (Typ)
- Low Output Saturation Voltage: 130 mV (Typ)
- Output Voltage Compatible With TTL, CMOS Logic Systems
