UTCDatasheet (PDF)

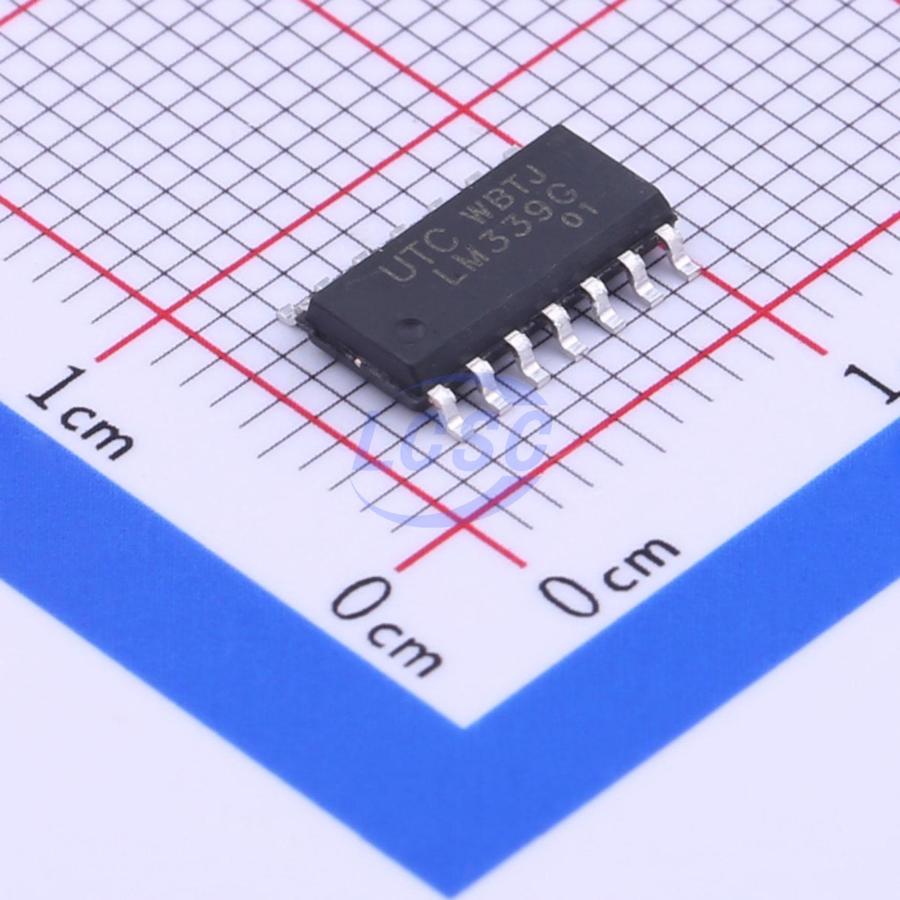

LM339G-S14-R
1.5mV 57nA Four channels SOIC-14 Linear Comparators
SOIC-14RoHSActive
QUAD DIFFERENTIAL COMPARATOR
- Manufacturer
- UTC
- Manufacturer part #
- LM339G-S14-R
- Store part #
- C71100
- Package / case
- SOIC-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,425 in stock
#C71100
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.50 | ₹92.50 |
| 50+ | ₹14.51 | ₹725.50 |
| 150+ | ₹12.53 | ₹1,879.50 |
| 500+ | ₹11.03 | ₹5,515.00 |
| 2,500+ | ₹9.71 | ₹24,275.00 |
| 5,000+ | ₹9.12 | ₹45,600.00 |
5 × ₹18.50
₹92.50
excl. GST
₹109.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339G-S14-R
₹92.50 for 5 + GST
Specifications
- Dual Supply
- ±18V
- Output Type
- Open Collector
- Vos - Input Offset Voltage
- 1.5mV
- Ib - Input Bias Current
- 57nA
- Quiescent Current
- 1.1mA
- Output Mode
- TTL;DTL;CMOS
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 2.3nA
- Operating Temperature
- -20℃~+85℃
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.4us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.348 g
Overview
The UTC LM339 consists of four independent voltage comparators, designed specifically to operate from a single power supply over a wide voltage range.
Key features
- Signal or Dual Supply Operation.
- Wide Operating Supply Range (VCC = 2V ~ 36V).
- Input Common-Mode Voltage Includes Ground.
- Low Supply Current Drain VF = 0.8mA (Typical).
- Open Collector Outputs for Wired and Connection.
- Low Input Bias Current IBIAS = 25nA (Typical).
- Low Output Saturation Voltage.
- Output Compatible with TTL, DTL, and CMOS Logic System.
