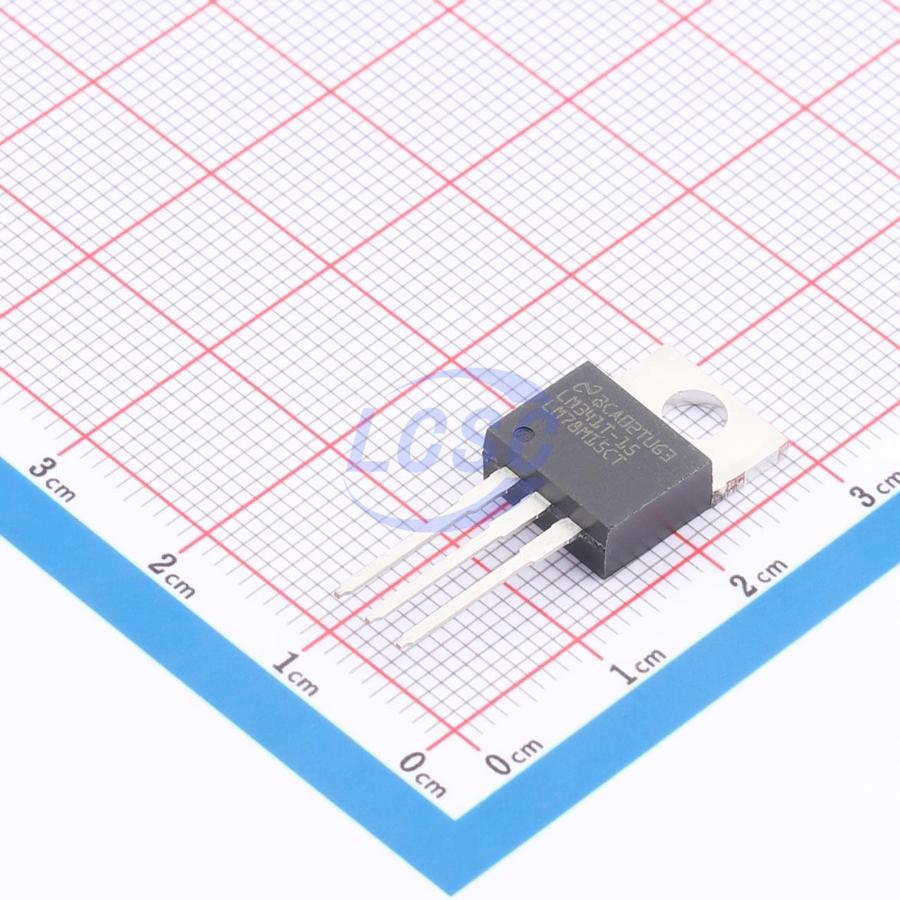

LM341T-15/NOPB
15V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
500mA, 35V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM341T-15/NOPB
- Store part #
- C2862390
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2862390
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹254.11 | ₹254.11 |
| 10+ | ₹248.21 | ₹2,482.10 |
| 45+ | ₹244.20 | ₹10,989.00 |
| 90+ | ₹240.40 | ₹21,636.00 |
1 × ₹254.11
₹254.11
excl. GST
₹299.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per tube
LM341T-15/NOPB
₹254.11 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 35V
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.86 g
Overview
The LM341 and LM78M05 three-pin positive voltage regulators employ built-in current limiting, thermal shutdown, and safe-operating area protection, which makes them virtually immune to damage from output overloads. With adequate heat sinking, they can deliver in excess of 0.5-A output current. Typical applications would include local (on-card) regulators which can eliminate the noise and degraded performance associated with single-point regulation.
Applications
- Electronic point-of-sale
- Motor drives
- Building automation
- Appliances and white goods
- TVs and set-top boxes
Key features
- Output current in excess of 0.5 A
- No external components
- Internal thermal overload protection
- Internal short circuit current-limiting
- Output transistor safe-area compensation
- Available in 3-pin TO-220, TO-252, and TO packages
- Output voltages of 5 V and 15 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7815 TO-220#C54430189KTP · TO-220 | KTP | TO-220 | 420 | ₹27.84 · 420 in stock | View |
 | LR7815#C2887404LRC · TO-220 | LRC | TO-220 | 40 | ₹42.79 · 40 in stock | View |
 | MC7815CTG#C110909onsemi · TO-220 | onsemi | TO-220 | 7,412 | ₹53.65 · 7,412 in stock | View |
 | MC7815BTG#C76382onsemi · TO-220AB | onsemi | TO-220AB | 6,141 | ₹54.30 · 6,141 in stock | View |
| AS7815AT-E1#C7217864DIODES · TO-220-3 | DIODES | TO-220-3 | 57 | ₹94.99 · 57 in stock | View | |
