MSKSEMIDatasheet (PDF)
LM358
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8RoHSActive

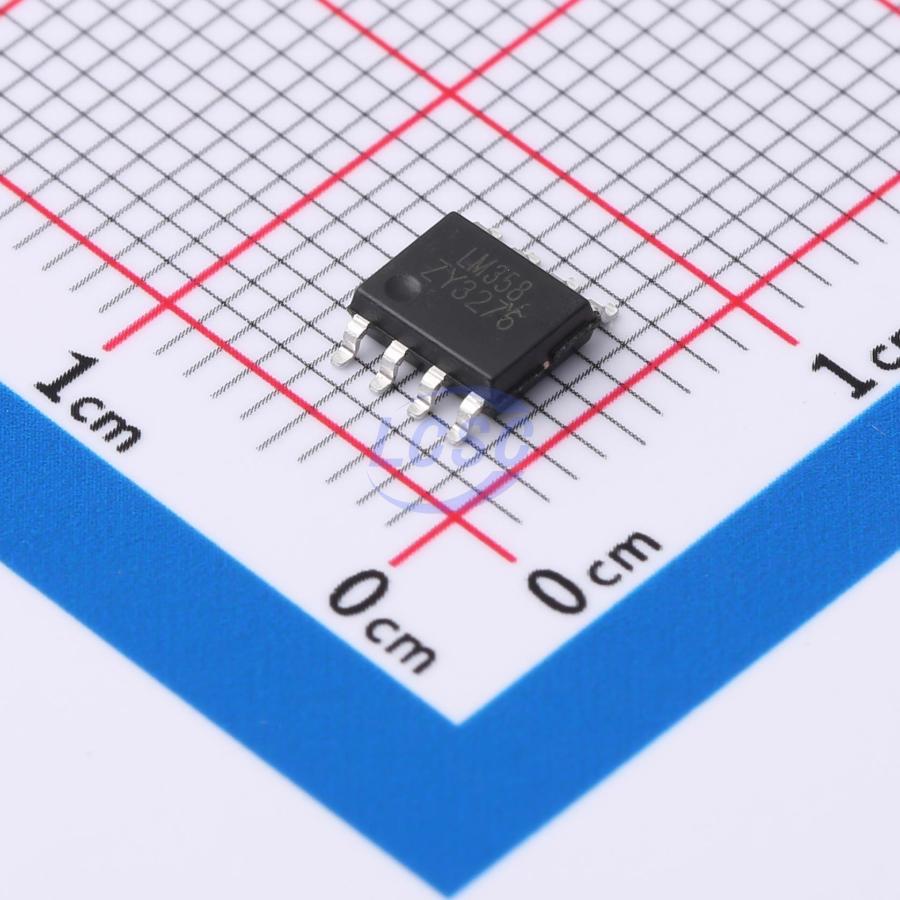

LM358 Dual Low-Power Differential Operational Amplifier
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LM358
- Store part #
- C5252902
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,57,610 in stock
#C5252902
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.17 | ₹51.70 |
| 100+ | ₹4.19 | ₹419.00 |
| 300+ | ₹3.69 | ₹1,107.00 |
| 2,500+ | ₹3.00 | ₹7,500.00 |
| 5,000+ | ₹2.86 | ₹14,300.00 |
| 10,000+ | ₹2.75 | ₹27,500.00 |
10 × ₹5.17
₹51.70
excl. GST
₹61.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM358
₹51.70 for 10 + GST
Specifications
- Output Current
- 24mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 50nA
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation
- Dual Supply
- -18V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.185 g
Overview
The LM358 is a dual low-power differential op-amp that operates from either single or dual power supplies. It features high open-loop gain, internal compensation, wide common-mode range, excellent temperature stability, and output short-circuit protection. Widely used in sensor amplifier circuits, DC amplifier modules, audio amplifier circuits, and conventional op-amp circuits.
Applications
- Sensor signal amplifier
- DC gain
- Audio amplifier
Key features
- Internal frequency compensation
- Short-circuit protection
- Low power consumption: typical 0.5mA @Vcc = 5V
- Package: DIP-8, SOP-8
- Single supply voltage range: 3V ~ 36V
- Dual supply voltage range: ±18V
- Unity-gain bandwidth: up to 1.2MHz
