PUOLOPDatasheet (PDF)

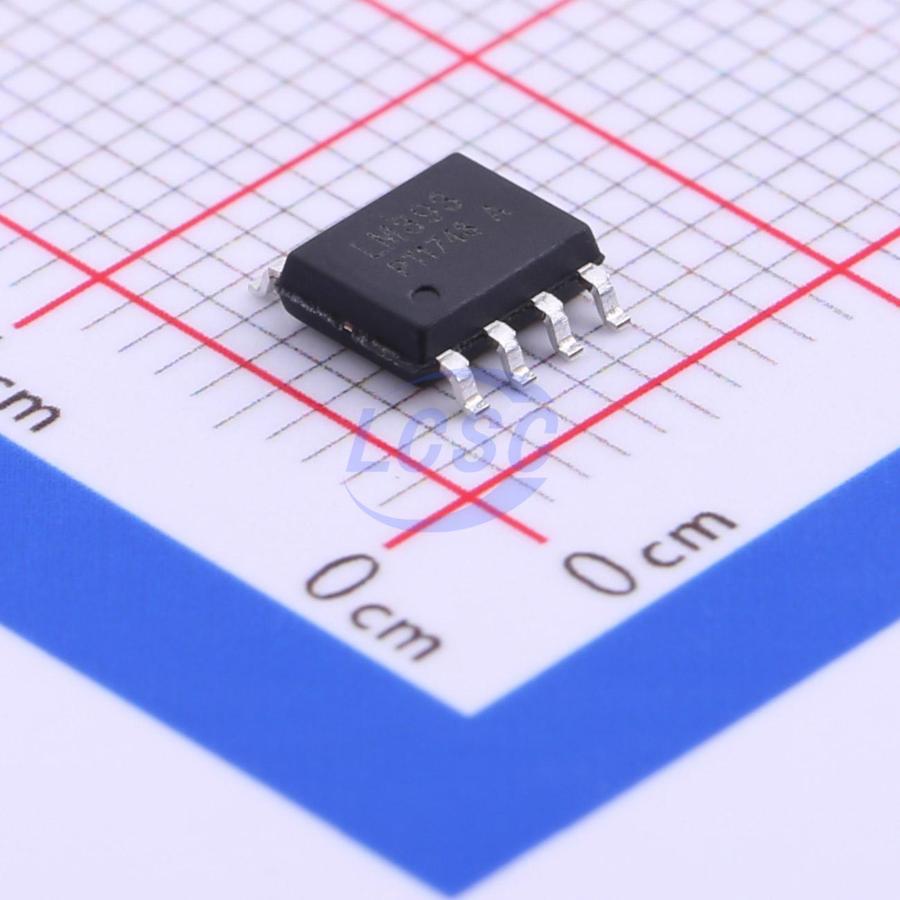

LM393
1mV 25nA 2 SOP-8 Linear Comparators RoHS
SOP-8ROHS CompliantActive
Dual Comparator
- Manufacturer
- PUOLOP
- Manufacturer part #
- LM393
- Store part #
- C351428
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C351428
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.28 | ₹61.40 |
| 50+ | ₹9.87 | ₹493.50 |
| 150+ | ₹8.68 | ₹1,302.00 |
| 500+ | ₹7.78 | ₹3,890.00 |
| 3,000+ | ₹6.11 | ₹18,330.00 |
| 6,000+ | ₹5.76 | ₹34,560.00 |
5 × ₹12.28
₹61.40
excl. GST
₹72.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM393
₹61.40 for 5 + GST
Specifications
- Output Type
- Open Collector
- Quiescent Current
- 400uA
- Output Mode
- TTL;CMOS
- Propagation Delay Time
- 300ns
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V;-18V~-1V
- Input Hysteresis Voltage (Vhys)
- 10mV
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.237 g
Overview
The LM393 consists of two independent, precision voltage comparators with an input offset voltage of no more than 2.0mV. It operates from either a single or dual power supply, and its supply current is independent of the supply voltage level. A unique feature of these comparators is that the input common-mode voltage range extends down to ground level, even when operating from a single supply. Primarily used in consumer and industrial electronics. Available in DIP8 package.
Applications
- Consumer electronics
- Industrial electronics
Key features
- Wide supply voltage range: Single supply: 2.0V~36V, Dual supply: ±1.0V~±18V
- Low supply current: 0.8mA, independent of supply voltage
- Low input bias current: 25nA
- Low input offset current: 5.0nA
- Low input offset voltage: 5.0mV
- Input common-mode voltage range extends to zero
- Input differential voltage range equal to supply voltage range
- Compatible with TTL, DTL, ECL, MOS, and CMOS
