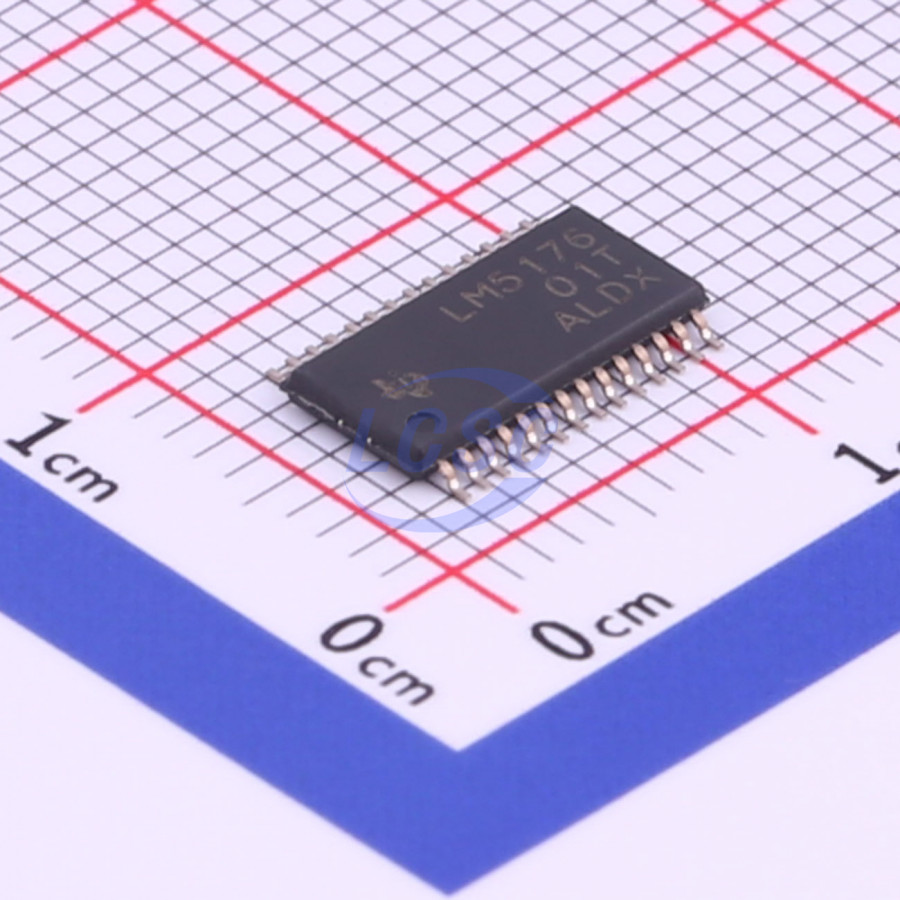

LM5176PWPR
1 800mV~55V 2A Adjustable Buck-Boost HTSSOP-28-EP DC DC Switching Controllers RoHS
4-Switch Synchronous Buck-Boost Controller
- Manufacturer
- TI
- Manufacturer part #
- LM5176PWPR
- Store part #
- C442493
- Package / case
- HTSSOP-28-EP
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,952 in stock
#C442493
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹438.56 | ₹438.56 |
| 10+ | ₹392.68 | ₹3,926.80 |
| 30+ | ₹363.98 | ₹10,919.40 |
| 100+ | ₹334.41 | ₹33,441.00 |
| 500+ | ₹321.15 | ₹1,60,575.00 |
| 1,000+ | ₹315.27 | ₹3,15,270.00 |
1 × ₹438.56
₹438.56
excl. GST
₹517.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM5176PWPR
₹438.56 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Frequency synchronization;EMI optimization (spread spectrum);Overcurrent Protection
- Number of Channels
- 1
- Topology
- Buck;Boost
- Operating Voltage
- 4.2V~55V
- Switch tube (built-in/external)
- External
- Output Voltage
- 800mV~55V
- Operating Temperature
- -40℃~+125℃@(TJ)
- Output Current
- 2A
- Frequency - Switching
- 600kHz
- Output Type
- Adjustable
- Function
- Buck-Boost
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.203 g
Overview
Single inductor buck-boost controller for step up/step-down DC/DC conversion Wide VIN: 4.2 V (2.5 V with bias) to 55 V (60 V maximum) Flexible VOUT: 0.8 V to 55 V VOUT short protection High efficiency buck-boost transition Adjustable switching frequency Optional frequency sync and dithering Integrated 2-A MOSFET gate drivers Cycle-by-cycle current limit and optional hiccup Optional input or output average current limiting Programmable input UVLO and soft start Power Good and output overvoltage protection Available in HTSSOP-28 and QFN-28 packages Create a custom design using the LM5176 with the WEBENCH Power Designer
Applications
- Industrial PC power supplies
- USB power delivery
- Battery-powered systems
- LED lighting
Key features
- Single inductor buck-boost controller for step up/step-down DC/DC conversion
- Wide VIN: 4.2 V (2.5 V with bias) to 55 V (60 V maximum)
- Flexible VOUT: 0.8 V to 55 V
- VOUT short protection
- High efficiency buck-boost transition
- Adjustable switching frequency
- Optional frequency sync and dithering
- Integrated 2-A MOSFET gate drivers
- Cycle-by-cycle current limit and optional hiccup
- Optional input or output average current limiting
- Programmable input UVLO and soft start
- Power Good and output overvoltage protection
- Available in HTSSOP-28 and QFN-28 packages
- Create a custom design using the LM5176 with the WEBENCH Power Designer
