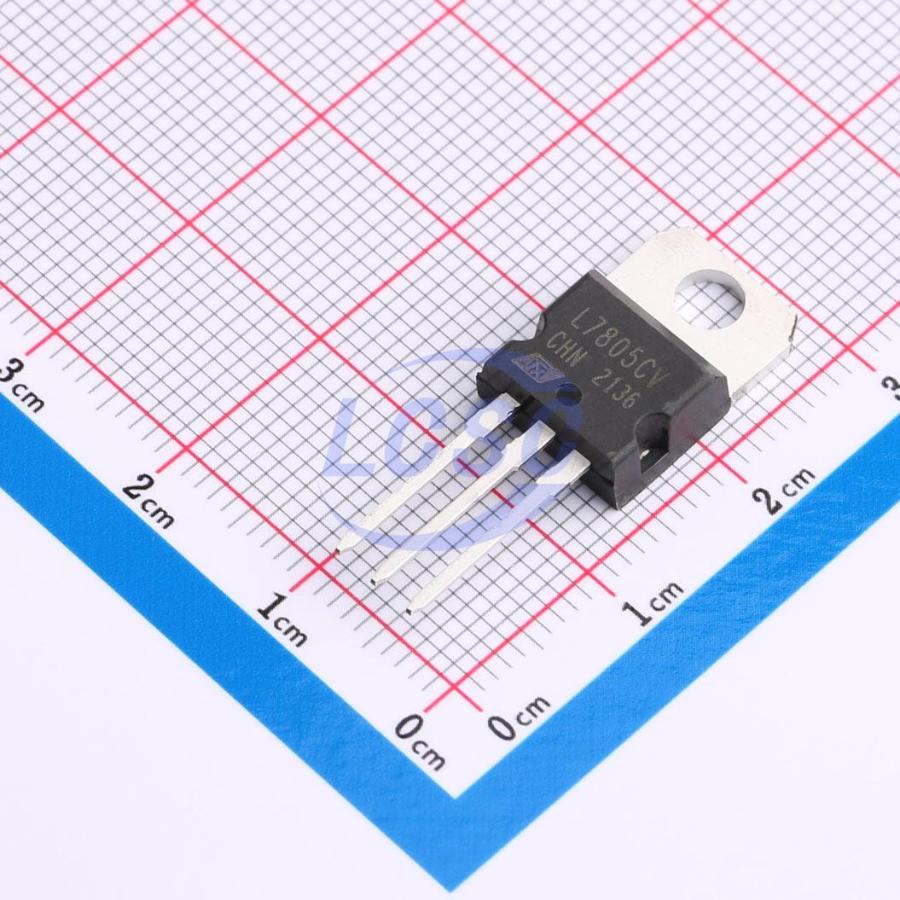

LM7805CT
5V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-220RoHSActive
Voltage regulator
- Manufacturer
- Siproin
- Manufacturer part #
- LM7805CT
- Store part #
- C5444281
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C5444281
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.56 | ₹147.80 |
| 50+ | ₹22.93 | ₹1,146.50 |
| 150+ | ₹20.33 | ₹3,049.50 |
| 500+ | ₹17.12 | ₹8,560.00 |
| 2,500+ | ₹15.68 | ₹39,200.00 |
| 5,000+ | ₹14.82 | ₹74,100.00 |
5 × ₹29.56
₹147.80
excl. GST
₹174.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM7805CT
₹147.80 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.472 g
Overview
LM78XX is three-terminal positive regulators. One of these regulators can deliver up to 1.5A of output current. The internal limiting and thermal-shutdown features of the regulator make them essentially immune to overload. When used as a replacement for a zener diode-resistor Combination, an effective improvement in output impedance can be obtained, together with lower quiescent current.
Key features
- Maximum Output current of 1.5A
- Maximum input voltage: 35V
- Thermal overload protection
- Short circuit protection
- Built-in limited flow circuit
- Package: TO220 and TO263
- Output voltage accuracy: tolerance ±5%
