TIDatasheet (PDF)

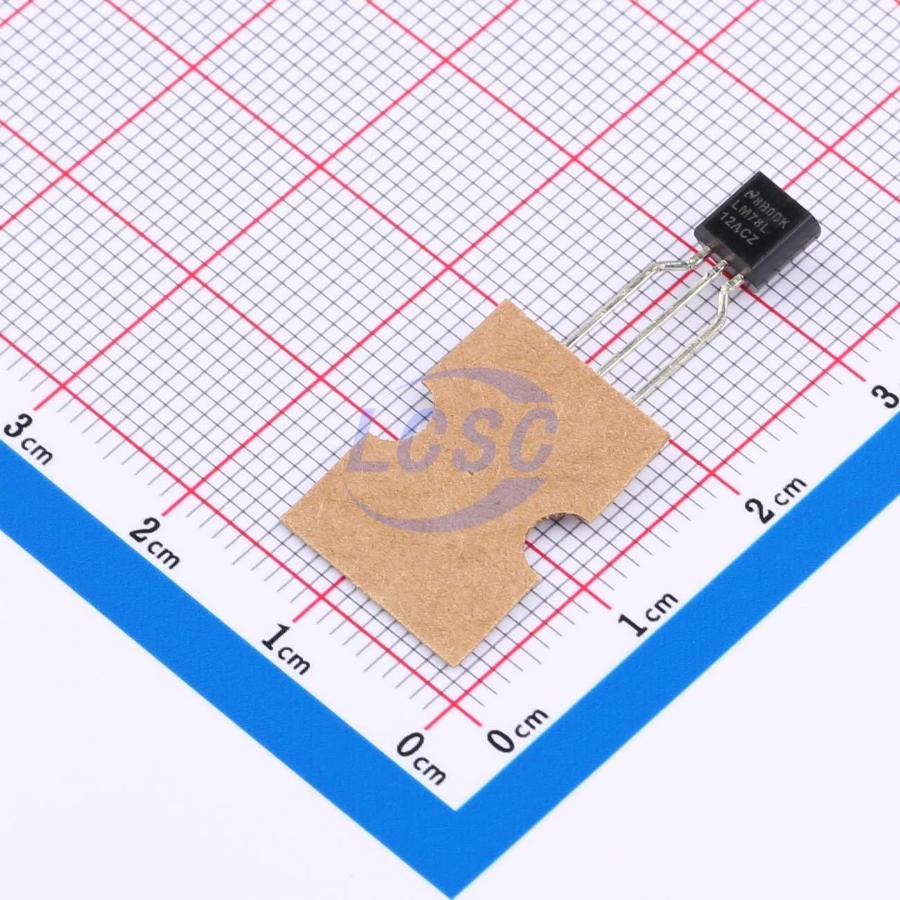

LM78L12ACZ/LFT4
12V Positive Fixed TO-92 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92ROHS3 CompliantActive
100mA, 30V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- LM78L12ACZ/LFT4
- Store part #
- C2863047
- Package / case
- TO-92
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
62 in stock
#C2863047
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.23 | ₹79.23 |
| 10+ | ₹77.51 | ₹775.10 |
| 30+ | ₹76.43 | ₹2,292.90 |
| 100+ | ₹75.13 | ₹7,513.00 |
1 × ₹79.23
₹79.23
excl. GST
₹93.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM78L12ACZ/LFT4
₹79.23 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.304 g
Overview
- Input voltage up to 30 V - Output voltage tolerances of ±5% over the temperature range - Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V - Output current of 100 mA - Output transistor safe area protection - Internal thermal overload protection - Internal short-circuit current limit - No external components - Available in tiny DSBGA package - Available in 3-pin TO-92 and 8-pin SOIC low profile packages
Applications
- Battery chargers
- Portable instrumentation
- LED lighting
- Appliances
Key features
- Input voltage up to 30 V
- Output voltage tolerances of ±5% over the temperature range
- Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V
- Output current of 100 mA
- Output transistor safe area protection
- Internal thermal overload protection
- Internal short-circuit current limit
- No external components
- Available in tiny DSBGA package
- Available in 3-pin TO-92 and 8-pin SOIC low profile packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM78L12ACZ/NOPB#C2864511TI · TO-92-3 | TI | TO-92-3 | 4 | ₹45.13 · 4 in stock | View |
 | LM78L12ACZ/LFT3#C2865175TI · TO-92 | TI | TO-92 | 90 | ₹74.33 · 90 in stock | View |
| LM78L12ACZ/LFT7#C2868177TI · TO-92 | TI | TO-92 | 100 | ₹108.43 · 100 in stock | View | |
 | L78L12ACZ-AP#C262913ST · TO-92-3 | ST | TO-92-3 | 2,995 | ₹60.49 · 2,995 in stock | View |
 | L78L12ACZ-TR#C2798210ST · TO-92-3 | ST | TO-92-3 | 160 | ₹30.81 · 160 in stock | View |
