HANSCHIP semiconductor

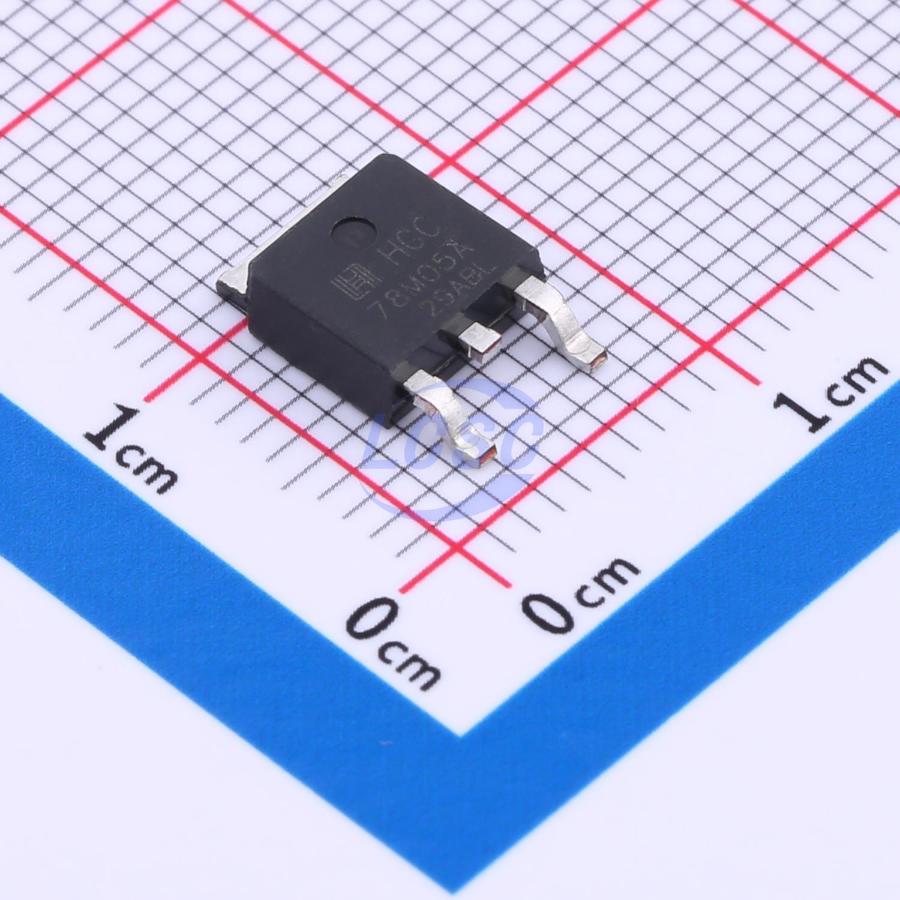

LM78M05ACKTPRG

5V Positive Fixed TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252-2ROHS CompliantActive

3-Terminal 1 A Positive Voltage Regulator

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM78M05ACKTPRG
Store part #: C5145267
Package / case: TO-252-2
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,315 in stock

#C5145267

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹12.82	₹64.10
50+	₹10.32	₹516.00
150+	₹9.06	₹1,359.00
500+	₹8.12	₹4,060.00
2,500+	₹6.64	₹16,600.00
5,000+	₹6.27	₹31,350.00

Quantity (min 5, multiples of 5)

5 × ₹12.82

₹64.10

excl. GST

₹75.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM78M05ACKTPRG

₹64.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Tj)
Supply Current (Iq): 4mA
Output Configuration: Positive
Operating Voltage: 20V
Output Current: 1A
Output Type: Fixed
Features: Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.46 g

Overview

The LM78MxxA series three-terminal positive voltage regulators are available in TO-252-2 packages with multiple fixed output voltages, suitable for a wide range of applications.

Key features

Output current up to 1A
Output voltage: 5V, 6V, 8V, 9V, 12V, 15V, 18V, 24V
Thermal overload protection
Short-circuit protection
Output transistor safe operating area (SOA) protection
TO-252-2 package
