TIDatasheet (PDF)

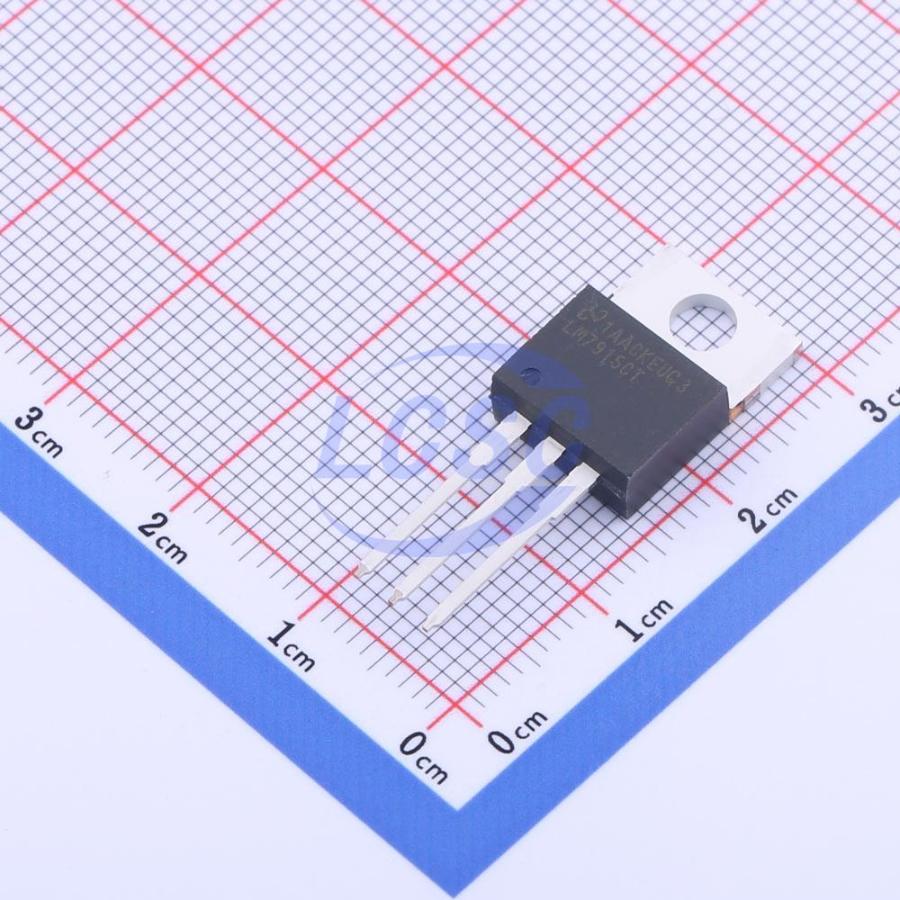

LM7915CT/NOPB
15V Negative Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
1.5A Negative Voltage Linear Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM7915CT/NOPB
- Store part #
- C2865072
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C2865072
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹304.55 | ₹304.55 |
| 10+ | ₹259.70 | ₹2,597.00 |
| 45+ | ₹231.63 | ₹10,423.35 |
| 90+ | ₹202.90 | ₹18,261.00 |
| 450+ | ₹190.05 | ₹85,522.50 |
| 900+ | ₹184.39 | ₹1,65,951.00 |
1 × ₹304.55
₹304.55
excl. GST
₹359.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per tube
LM7915CT/NOPB
₹304.55 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.5mA
- Output Configuration
- Negative
- Operating Voltage
- 23V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 45 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.94 g
Overview
The LM79XX series of 3-terminal regulators is available with fixed output voltages of −5V, −12V, and −15V. These devices need only one external component—a compensation capacitor at the output. The LM79XX series is packaged in the TO-220 power package and is capable of supplying 1.5A of output current. These regulators employ internal current limiting safe area protection and thermal shutdown for protection against virtually all overload conditions. Low ground pin current of the LM79XX series allows output voltage to be easily boosted above the preset value with a resistor divider. The low quiescent current drain of these devices with a specified maximum change with line and load ensures good regulation in the voltage boosted mode.
Key features
- Thermal, Short Circuit and Safe Area Protection
- High Ripple Rejection
- 1.5A Output Current
- 4% Tolerance on Preset Output Voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HL7915CV#C41381864HXY MOSFET · TO-220S | HXY MOSFET | TO-220S | 5 | ₹36.48 · 5 in stock | View |
 | L7915ACV#C163543ST · TO-220 | ST | TO-220 | 1,447 | ₹79.54 · 1,447 in stock | View |
 | L7915CV-DG#C2172ST · TO-220 | ST | TO-220 | 16,243 | ₹57.66 · 16,243 in stock | View |
 | L7915CV#C154950ST · TO-220 | ST | TO-220 | 9,175 | ₹50.15 · 9,175 in stock | View |
 | 7915#C20606610YFW · TO-220AB | YFW | TO-220AB | 100 | ₹60.94 · 100 in stock | View |
