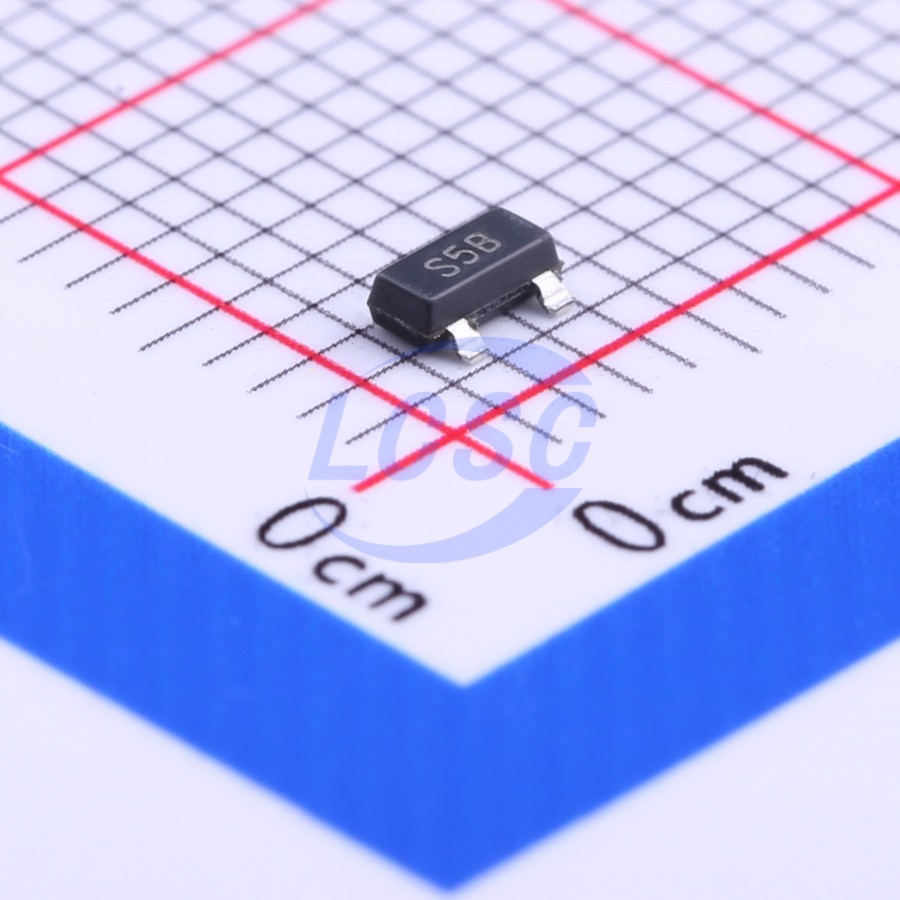

LM809M3X-3.08/NOPB
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors RoHS
Microprocessor Reset Circuits
- Manufacturer
- TI
- Manufacturer part #
- LM809M3X-3.08/NOPB
- Store part #
- C209840
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,988 in stock
#C209840
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.71 | ₹81.71 |
| 10+ | ₹65.62 | ₹656.20 |
| 30+ | ₹57.59 | ₹1,727.70 |
| 100+ | ₹49.76 | ₹4,976.00 |
| 500+ | ₹44.98 | ₹22,490.00 |
| 1,000+ | ₹42.59 | ₹42,590.00 |
1 × ₹81.71
₹81.71
excl. GST
₹96.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM809M3X-3.08/NOPB
₹81.71 for 1 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃@(TA)
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 15uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The LM809 and LM810 microprocessors supervisory circuits can be used to monitor the power supplies in microprocessor and digital systems. They provide a reset to the microprocessor during power-up, powerdown and brown-out conditions. The function of the LM809 and LM810 are to monitor the VCC supply voltage, and assert a reset signal whenever this voltage declines below the factoryprogrammed reset threshold. The reset signal remains asserted for 240 ms after VCC rises above the threshold. The LM809 has an active-low RESET output, while the LM810 has an active-high RESET output. Seven standard reset voltage options are available, suitable for monitoring 5-V, 3.3-V, and 3-V supply voltages. With a low supply current of only 15 μA, the LM809 and LM810 are ideal for use in portable equipment.
Applications
- Factory Automation
- Building Automation
- Programmable Logic Control
- Renewable Energy
- Microprocessor Systems
- Computers
- Controllers
- Intelligent Instruments
- Portable/Battery-Powered Equipment
- Automotive
Key features
- Precision Monitoring of Supply Voltages
- Available Threshold Options: 2.63 V, 2.93 V, 3.08 V, 4.38 V, 4.63 V
- Superior Upgrade to MAX809 and MAX810
- Fully Specified Over Temperature
- 140-ms Minimum Power-On Reset Pulse Width, 240-ms Typical
- Active-Low RESET Output (LM809)
- Active-High RESET Output (LM810)
- Ensured RESET Output Valid for V_CC ≥ 1 V
- Low Supply Current, 15 - μA Typical
- Power Supply Transient Immunity
