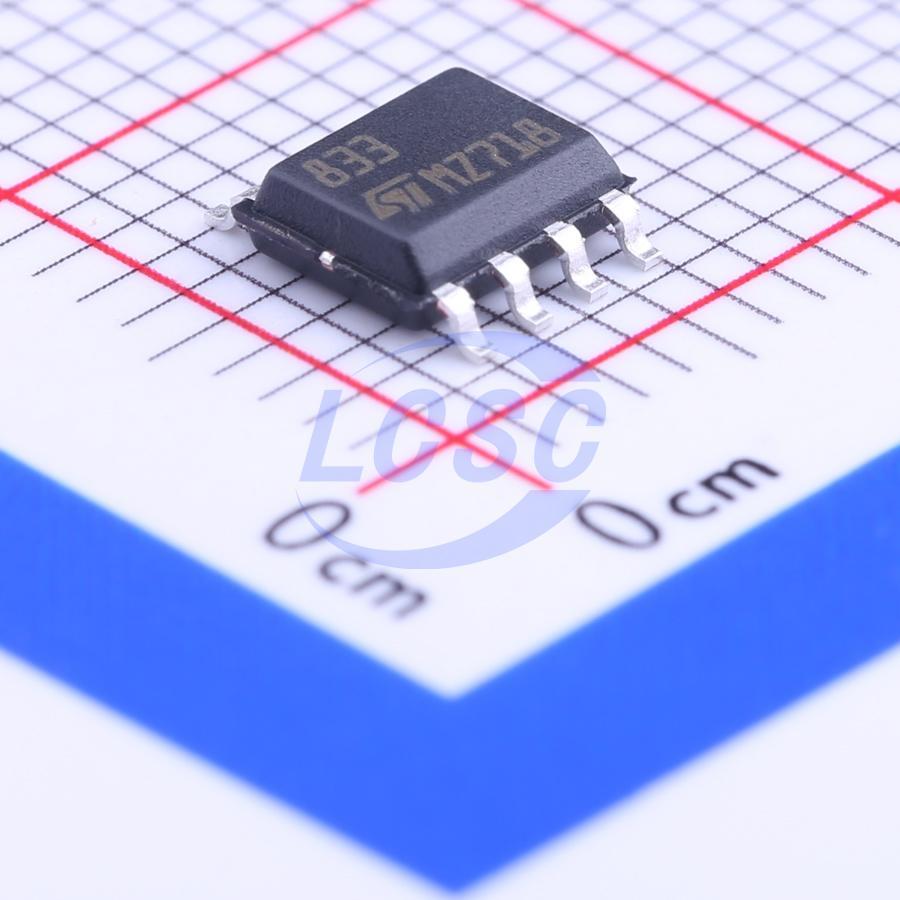

LM833DT
2 300uV 7V/us 100dB 300nA 15MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Low noise dual operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- LM833DT
- Store part #
- C127074
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,435 in stock
#C127074
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.71 | ₹208.55 |
| 50+ | ₹32.52 | ₹1,626.00 |
| 150+ | ₹28.58 | ₹4,287.00 |
| 500+ | ₹23.66 | ₹11,830.00 |
| 2,500+ | ₹21.46 | ₹53,650.00 |
| 5,000+ | ₹20.15 | ₹1,00,750.00 |
5 × ₹41.71
₹208.55
excl. GST
₹246.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM833DT
₹208.55 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 25nA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 300nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 15MHz
- Input Voltage Noise Density
- 4.5nV/√Hz@1kHz
- Dual Supply
- -15V~-2.5V;2.5V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.266 g
Overview
The LM833 is a monolithic dual operational amplifier particularly well-suited to audio applications. It offers low voltage noise (4.5 nV/√Hz) and high frequency performances (15 MHz gain bandwidth product, 7 V/µs slew rate). In addition, the LM833 has a very low distortion (0.002%) and excellent phase/gain margins.
Applications
- Audio systems Preamplification, filtering
Key features
- Low voltage noise: 4.5 nV/√Hz
- High gain bandwidth product: 15 MHz
- High slew rate: 7 V/µs
- Low distortion: 0.002%
- Excellent frequency stability
- ESD protection 2 kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT4560BRZ#C5121370HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 600 | ₹23.23 · 600 in stock | View |
 | LM833DRG#C5145254HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 55 | ₹12.33 · 55 in stock | View |
 | XL833#C707069XINLUDA · SOIC-8 | XINLUDA | SOIC-8 | 395 | ₹12.34 · 395 in stock | View |
 | LM833M/TR#C434490HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,295 | ₹17.75 · 2,295 in stock | View |
 | MC33078DR2G#C7299onsemi · SOIC-8 | onsemi | SOIC-8 | 83,515 | ₹15.28 · 83,515 in stock | View |
