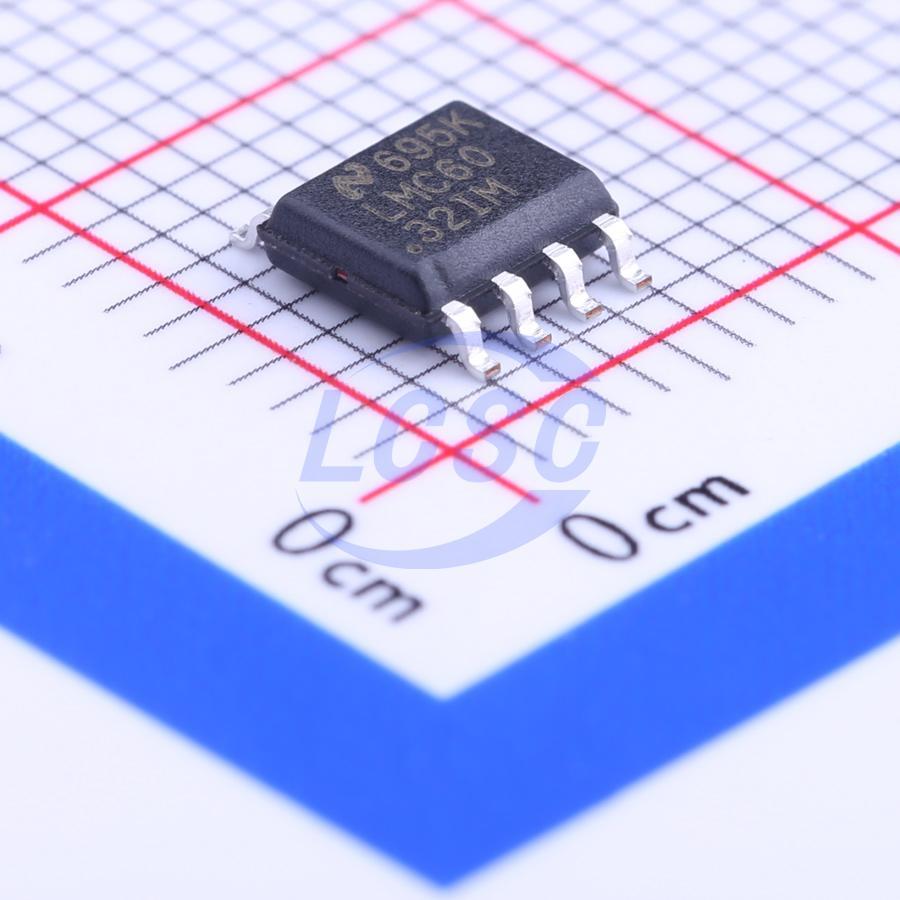

LMC6032IMX/NOPB
40mA 2 1mV 1.1V/us 83dB 0.04pA 1.4MHz 750uA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
CMOS Dual Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LMC6032IMX/NOPB
- Store part #
- C128393
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,071 in stock
#C128393
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹150.35 | ₹150.35 |
| 10+ | ₹122.54 | ₹1,225.40 |
| 30+ | ₹108.63 | ₹3,258.90 |
| 100+ | ₹94.73 | ₹9,473.00 |
| 500+ | ₹79.30 | ₹39,650.00 |
| 1,000+ | ₹75.17 | ₹75,170.00 |
1 × ₹150.35
₹150.35
excl. GST
₹177.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMC6032IMX/NOPB
₹150.35 for 1 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1.1V/us
- Input Offset Current(Ios)
- 0.01pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 83dB
- Ib - Input Bias Current
- 0.04pA
- Input Offset Voltage Drift(Vos TC)
- 2.3uV/℃
- Gain Bandwidth Product
- 1.4MHz
- Quiescent Current
- 750uA
- Input Voltage Noise Density
- 22nV/√Hz@1kHz
- Single Supply
- 4.75V~15.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The LMC6032 is a CMOS dual operational amplifier which can operate from either a single supply or dual supplies. Its performance features include an input common - mode range that reaches ground, low input bias current, and high voltage gain into realistic loads, such as ≥kΩ and 600 Ω. This chip is built with TI's advanced Double - Poly Silicon - Gate CMOS process.
Applications
- High - Impedance Buffer or Preamplifier
- Current - to - Voltage Converter
- Long - Term Integrator
- Sample - and - Hold Circuit
- Medical Instrumentation
Key features
- Specified for 2 kΩ and 600 Ω Loads
- High Voltage Gain: 12 dB
- Low Offset Voltage Drift: 2.3 μV/°C
- Ultra Low Input Bias Current: 40 fA
- Input Common - mode Range Includes V⁻
- Operating Range From +5V to ±15V Supply
- ISS = 400 μA/Amplifier; Independent of V⁺
- Low Distortion: 0.01% at 10 kHz
- Slew Rate: 1.1 V/μs
- Improved Performance Over TLC272
