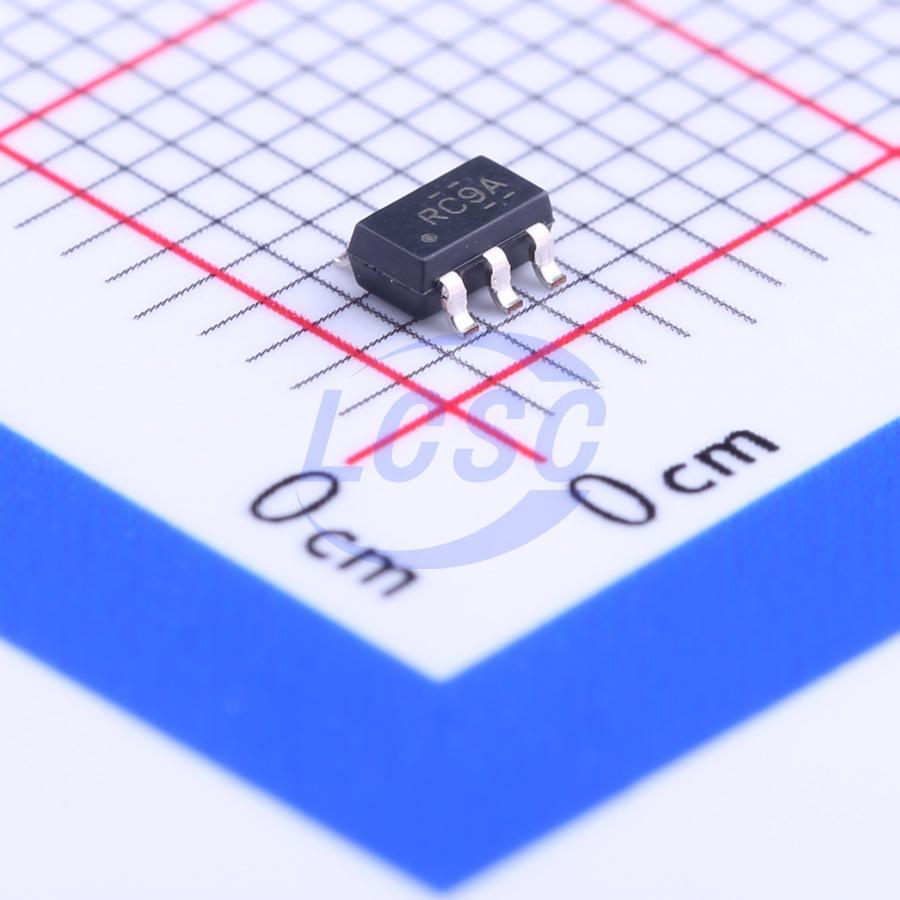

LMV341IDBVR

The LMV34x devices are single, dual, and quad CMOS operational amplifiers, respectively, with low voltage, low power, and rail-to-rail output swing capabilities. The PMOS input stage offers an ultra-low input bias current of 1 pA (typical) and an offset voltage of 0.25 mV (typical). The single-supply amplifier is designed specifically for low-voltage (2.7 V to 5 V) operation, with a wide common-mode input voltage range that typically extends from -0.2 V to 0.8 V from the positive supply rail. The LMV341 (single) also offers a shutdown (SHDN) pin that can be used to disable the device. In shutdown mode, the supply current is reduced to 33 nA (typical). Additional features of the family are a 20-nV/√Hz voltage noise at 10 kHz, 1-MHz unity-gain bandwidth, 1-V/μs slew rate, and 100-μA current consumption per channel. Offered in both the SOT-23 and smaller SC70 packages, the LMV341 is suitable for the most space-constraint applications. The LMV342 dual device is offered in the standard SOIC and VSSOP packages. An extended industrial temperature range from -40°C to 125°C makes these devices suitable in a wide variety of commercial and industrial environments.

Applications

• Cordless and Cellular Phones
• Consumer Electronics (Laptops, PDAs)
• Audio Preamplifiers for Voice
• Portable, Battery-Powered Electronic Equipment
• Supply-Current Monitoring
• Battery Monitoring
• Buffers
• Filters
• Drivers

Key features

• 2.7-V and 5-V Performance
• Rail-to-Rail Output Swing
• Input Bias Current: 1 pA (Typical)
• Input Offset Voltage: 0.25 mV (Typical)
• Low Supply Current: 100 μA (Typical)
• Low Shutdown Current: 45 pA (Typical)
• Gain Bandwidth of 1 MHz (Typical)
• Slew Rate: 1 V/μs (Typical)
• Turnon Time From Shutdown: 5 μs (Typical)
• Input Referred Voltage Noise (at 10 kHz): 20 nV/√Hz
• ESD Protection Exceeds JESD 22
• 2000-V Human-Body Model (HBM)
• 750-V Charged-device model (CDM)
