HTCSEMIDatasheet (PDF)

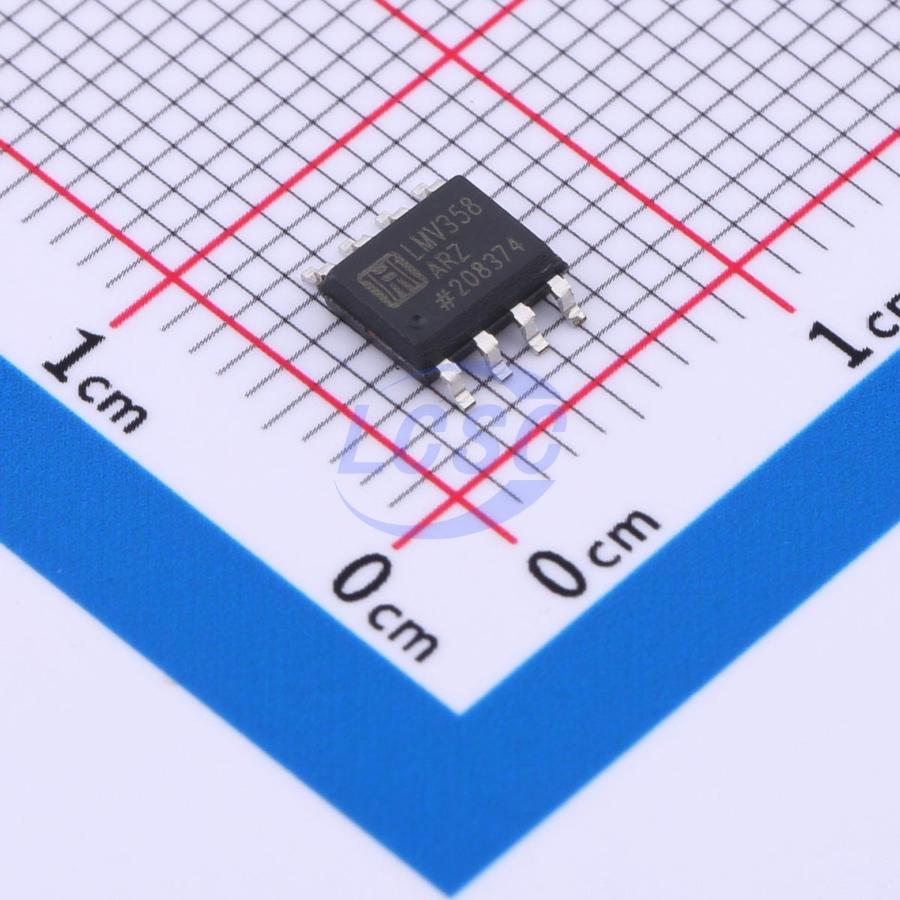

LMV358ARZ
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Output SOP-8
SOP-8RoHSActive
1.5MHz Low-Voltage Rail-to-Rail Output Operational Amplifier
- Manufacturer
- HTCSEMI
- Manufacturer part #
- LMV358ARZ
- Store part #
- C2928823
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,125 in stock
#C2928823
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.66 | ₹58.30 |
| 50+ | ₹9.35 | ₹467.50 |
| 150+ | ₹8.22 | ₹1,233.00 |
| 500+ | ₹7.36 | ₹3,680.00 |
| 2,500+ | ₹5.85 | ₹14,625.00 |
| 5,000+ | ₹5.50 | ₹27,500.00 |
5 × ₹11.66
₹58.30
excl. GST
₹68.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV358ARZ
₹58.30 for 5 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 900uV
- Slew Rate
- 3.7V/us
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 150uA
- Gain Bandwidth Product
- 1.5MHz
- Input Voltage Noise Density
- 25nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
Applications
- Active Filters, ASIC Input or Output Amplifier
- Sensor Interface
- Smoke/Gas/Environment Sensors
- Portable Instruments and Mobile Device
- Audio Output
- PCMCIA Cards
- Battery or Solar Power Systems
- Medical Equipment
- Piezo Electrical Transducer Amplifier
Key features
- Stable 1.5MHz GBWP with Low I of Only 330μA Typical per Amplifier
- Offset Voltage: ±900μV Maximum
- High Slew Rate: 3.7V/μs
- Input Bias Current: 1pA Typical
- CMRR/PSRR: 100dB/100dB
- Settling time to 0.1% with 2V Step: 0.46μs
- Beyond the Rails Input Common-Mode Range
- Output Swing to within 10mV Typical of each Rail
- No Phase Reversal for Overdriven Inputs
- Supply Voltage Range: 2.5V to 5.5V
- -40°C to 125°C Operation Range
- Green, Popular Type Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT2358ARZ#C2834451HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 425 | ₹14.94 · 425 in stock | View |
 | HT8632ARZ#C2834466HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 10 | ₹24.41 · 10 in stock | View |
 | HT6172ARZ#C2998003HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 38 | ₹201.49 · 38 in stock | View |
 | HT8722ARZ#C2976640HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 31,469 | ₹27.16 · 31,469 in stock | View |
 | HT5532ARZ#C2886399HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 342 | ₹45.03 · 342 in stock | View |
