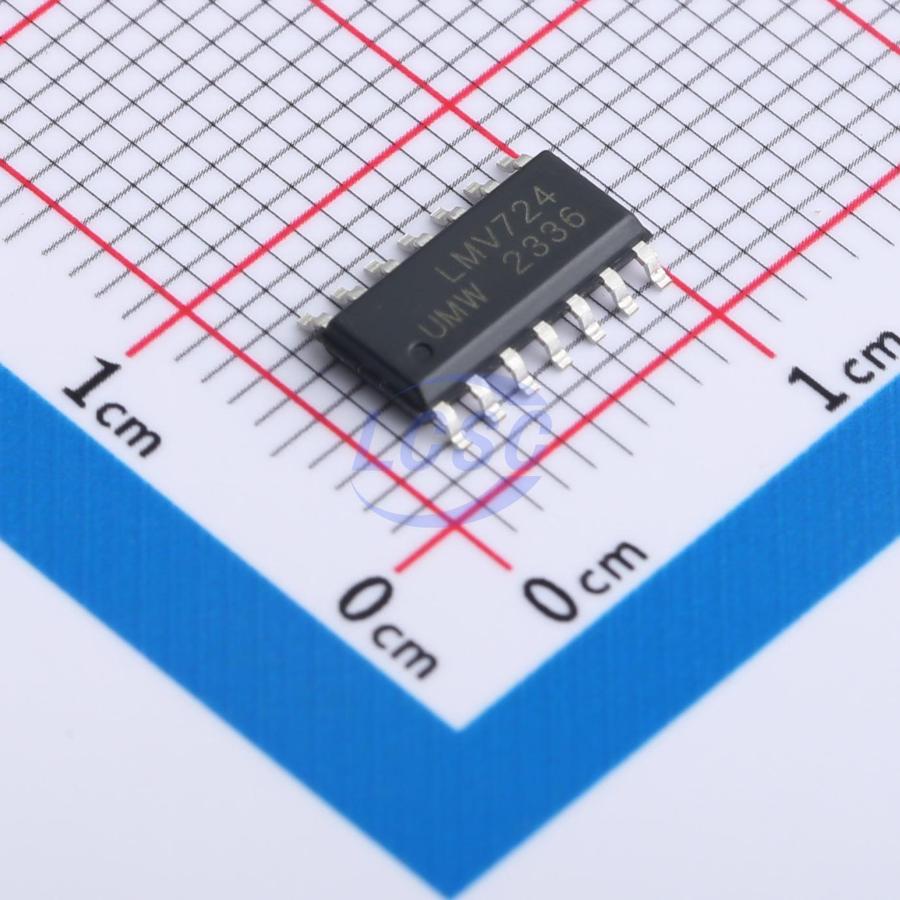

LMV724M(UMW)

40mA 4 3.5mV 9V/us 1pA 84dB 10MHz 1mA Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-14ROHS CompliantActive

10MHz, RRIO CMOS Operational Amplifiers

Manufacturer: UMW
Manufacturer part #: LMV724M(UMW)
Store part #: C18207576
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,066 in stock

#C18207576

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹38.66	₹38.66
10+	₹33.93	₹339.30
30+	₹31.79	₹953.70
100+	₹29.21	₹2,921.00
500+	₹27.93	₹13,965.00
1,000+	₹27.28	₹27,280.00

Quantity (min 1)

1 × ₹38.66

₹38.66

excl. GST

₹45.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LMV724M(UMW)

₹38.66 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 4
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 9V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 84dB
Input Offset Voltage Drift(Vos TC): 3uV/℃
Gain Bandwidth Product: 10MHz
Quiescent Current: 1mA
Input Voltage Noise Density: 20nV/√Hz@10kHz
Dual Supply: -2.25V~-1.25V;1.25V~2.25V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.418 g
