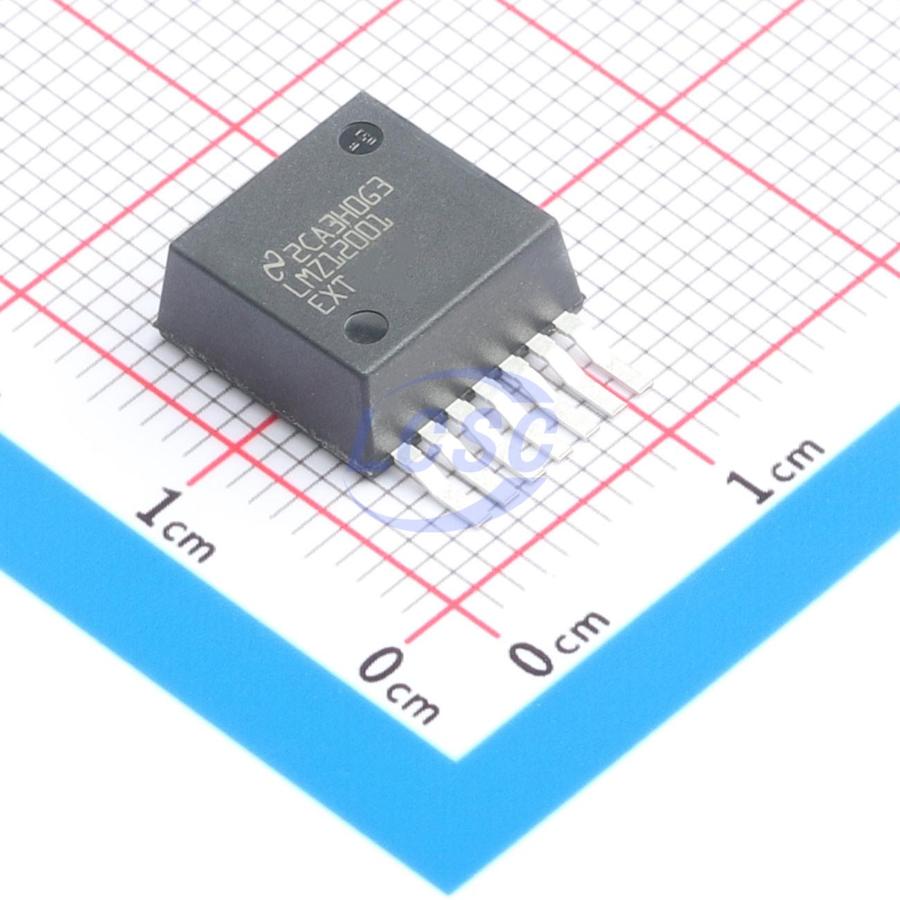

LMZ12001EXTTZX/NOPB

The LMZ12001EXT SIMPLE SWITCHER power module is an easy-to-use step-down DC/DC solution capable of delivering up to 1A of load current, featuring excellent power conversion efficiency, line and load regulation, and output accuracy. The innovative package design improves thermal performance and supports both hand and machine soldering. Compatible with input voltages from 4.5V to 20V, it provides an adjustable high-accuracy output voltage as low as 0.8V. A complete power solution requires only 3 external resistors and 4 external capacitors. It is a reliable, robust design offering the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short-circuit protection, output current limiting, and pre-biased output startup capability. Switching frequency is adjustable up to 1 MHz via a single resistor.

Applications

• Point-of-load conversion from 5V and 12V rails
• High-temperature applications with space constraints
• Negative output voltage applications

Key features

• Junction temperature range: -55˚C to 125˚C
• Integrated shielded inductor
• Simple PCB routing
• Flexible startup sequencing via external soft-start capacitor and high-accuracy enable pin
• Protection against inrush current, input undervoltage lockout, and output short circuit
• Solid exposed pad and standard leads for easier assembly and manufacturing
• Excellent transient response for FPGA and ASIC applications
• Pin-to-pin compatible family: LMZ14203EXT/2EXT/1EXT (42V max 3A, 2A, 1A), LMZ14203/2/1 (42V max 3A, 2A, 1A), LMZ12003/2/1 (20V max 3A, 2A, 1A)
• Full support from WEBENCH Power Designer
