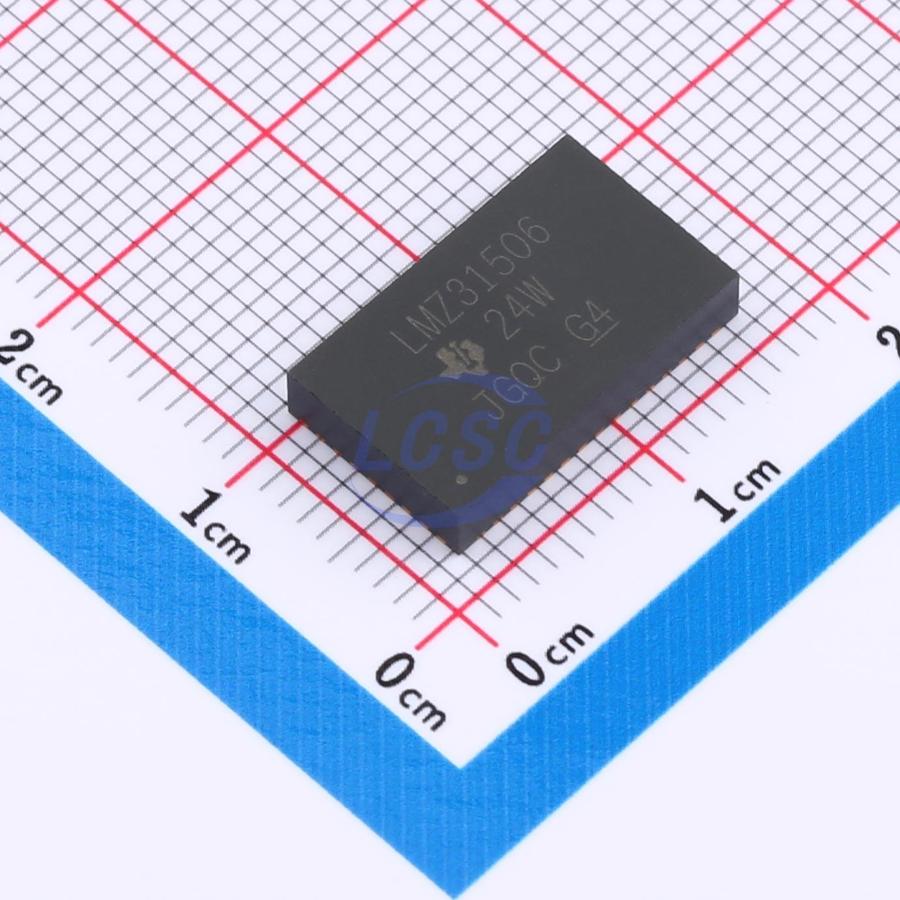

LMZ31506RUQR

The LMZ31506 power module is an easy-to-use integrated power solution that combines a 6A DC/DC converter with power MOSFETs, a shielded inductor, and multiple passive components in a compact QFN package. This all-in-one power solution requires only three external components, eliminating the need for loop compensation and magnetic component selection. The 9mm × 15mm × 2.8mm QFN package solders easily onto a PCB and enables compact point-of-load designs with efficiency exceeding 90%, along with excellent power dissipation featuring a junction-to-ambient thermal resistance of only 13°C/W. At an ambient temperature of 85°C with no airflow, the device delivers a full rated output current of 6A. The LMZ31506 offers the flexibility and feature set of a discrete point-of-load design, making it ideal for powering high-performance DSPs and FPGAs. Advanced packaging technology provides a robust and reliable power solution compatible with standard QFN assembly and test processes.

Applications

• Broadband and communications infrastructure
• Automated test and medical equipment
• Compact PCI, PCI Express, and PXI Express interfaces
• DSP and FPGA point-of-load applications

Key features

• Fully integrated power solution for compact, low-profile design
• 9mm × 15mm × 2.8mm package
• Pin-compatible with LMZ31503
• Up to 96% efficiency
• Wide output voltage regulation range 0.6V to 5.5V with 1% reference accuracy
• Parallel operation support for higher current
• Optional split power rail enabling input voltage as low as 1.6V
• Adjustable switching frequency (250kHz to 780kHz)
• External clock synchronization
• Adjustable soft-start
• Output voltage sequencing/tracking
• Power good output
• Programmable UVLO
• Output overcurrent protection (hiccup mode)
• Overtemperature protection
• Pre-biased output startup
• Operating temperature range: -40℃ to 85℃
• Enhanced thermal performance: 13℃/W
• Compliant with EN55022 Class B radiated emissions
• Integrated shielded inductor
• Use LMZ31506 with WEBENCH Power Designer to create custom designs
