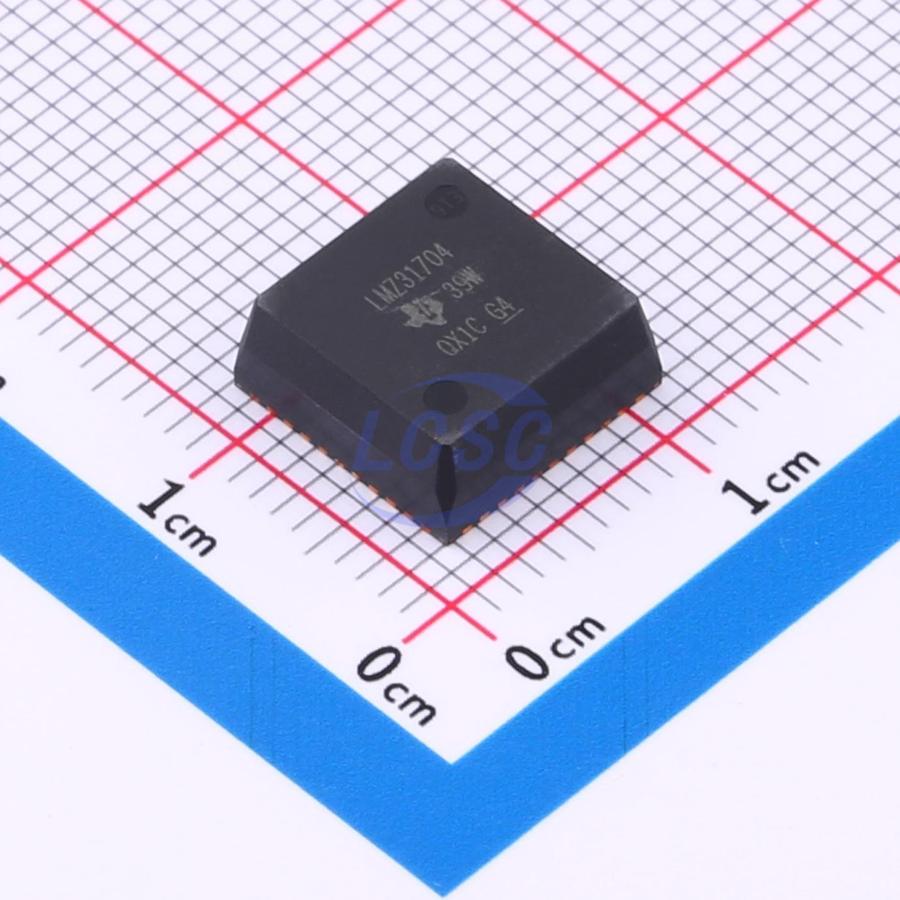

LMZ31704RVQR

Step-down type 600mV~5.5V 2.95V~17V B3QFN-42(10x10) DC DC Converters RoHS

B3QFN-42(10x10)ROHS3 CompliantActive

4A power module in QFN package with 2.95V to 17V input and current sharing

Manufacturer: TI
Manufacturer part #: LMZ31704RVQR
Store part #: C2879241
Package / case: B3QFN-42(10x10)
Category: DC DC Converters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12 in stock

#C2879241

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,286.00	₹1,286.00
10+	₹1,116.04	₹11,160.40
30+	₹1,012.61	₹30,378.30
100+	₹925.80	₹92,580.00

Quantity (min 1)

1 × ₹1,286.00

₹1,286.00

excl. GST

₹1,517.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

LMZ31704RVQR

₹1,286.00 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Step-down type
Output Voltage: 600mV~5.5V
Ripple Noise: 14mVp-p
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 2uA
Voltage - Supply: 2.95V~17V
Capacitive Load(Max): 5000uF
Number of Outputs: 1
Iout: 4A
Output Voltage Accuracy: ±1%
Height: 4.3mm
Frequency - Switching: 500kHz
Features: Programmable soft start;Light load efficient mode;Programmable output voltage;External clock synchronization;Power-on timing control;Under Voltage Protection;Over Current Protection;Over-temperature protection
Conversion Efficiency: 95%
Length: 10mm
Width: 10mm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.8 g

Overview

The LMZ31704 power module is an easy-to-use integrated power solution that integrates a 4A DC/DC converter with power MOSFETs, a shielded inductor, and multiple passive components in a flat QFN package. This complete power solution requires only three external components and eliminates the loop compensation and magnetic component selection processes. The device comes in a 10×10×4.3mm QFN package, which can be easily soldered to the printed circuit board and enables a compact point-of-load design. It can achieve an efficiency of over 95% and an excellent power dissipation capability with a thermal impedance of 13.3°C/W. The LMZ31704 offers the flexibility and feature set of a discrete point-of-load design and is well-suited for powering a wide range of integrated circuits (ICs) and systems. Advanced packaging technology provides a robust and reliable power solution compatible with standard QFN mounting and testing techniques.

Applications

Broadband and communications infrastructure
Automated test and medical equipment
Compact PCI/PCI Express/PXI Express interfaces
DSP and FPGA point-of-load applications

Key features

Complete integrated power solution for compact, low-profile design, 10mm×10mm×4.3mm package
Pin-compatible with LMZ31710 and LMZ31707
Up to 95% efficiency
Eco-mode™ / Light Load Efficiency (LLE)
Wide output voltage regulation range: 0.6V to 5.5V, 1% reference accuracy
Parallel operation support for higher current
Optional split power rail enables input voltage as low as 2.95V
Adjustable switching frequency range (200kHz to 1.2MHz) with external clock synchronization
180° out-of-phase clock signal output
Adjustable soft-start
Output voltage sequencing/tracking
Power Good output
Programmable UVLO
Overcurrent and overtemperature protection
Pre-biased output startup
Operating temperature range: -40°C to 85°C
Enhanced thermal performance: 13.3°C/W
Compliant with EN55022 Class B radiated emissions
Integrated shielded inductor
Use LMZ31704 with WEBENCH Power Designer to create custom designs
