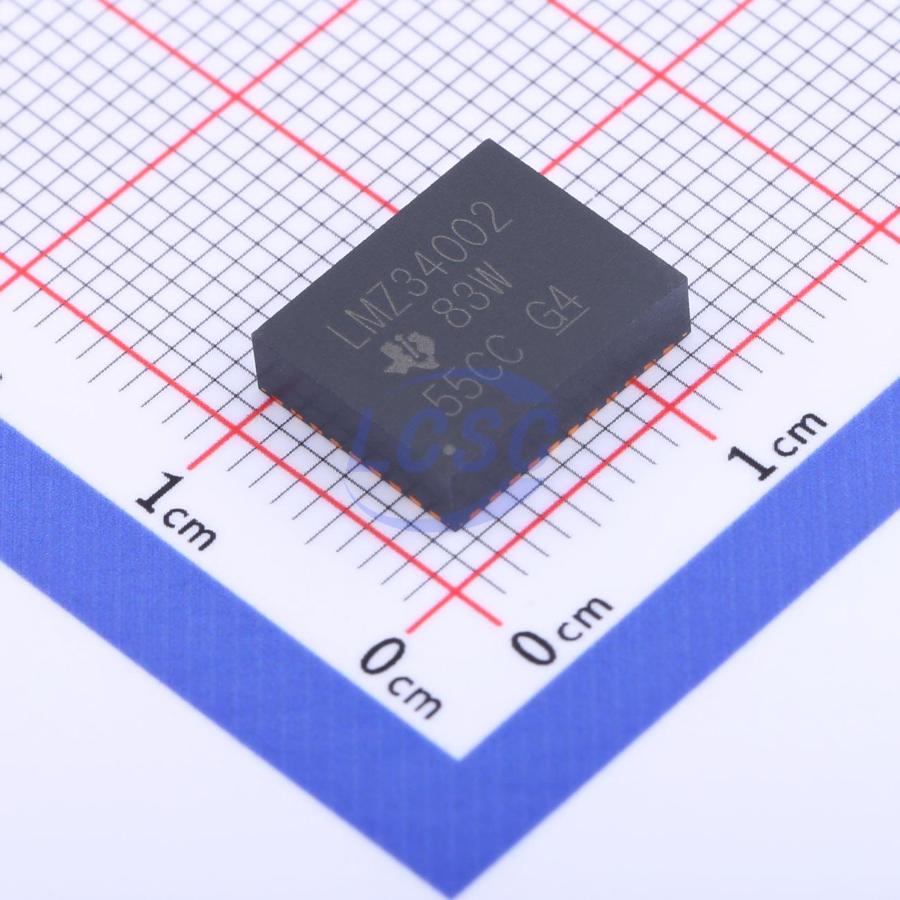

LMZ34002RKGT

The LMZ34002 SIMPLE SWITCHER power module is an easy-to-use negative output voltage power module that integrates a 15W DC/DC converter with a shielded inductor and passive components in a small-outline QFN package. This complete power solution requires only five external components and eliminates the loop compensation and magnetic component selection processes. The 9×11×2.8mm QFN package can be easily soldered to the printed circuit board and enables a compact design with fewer components and excellent power dissipation capabilities. The LMZ34002 offers the flexibility and feature set of a discrete design and is well-suited for powering a variety of ICs and analog circuits requiring negative output voltages. Advanced packaging technology provides a robust and reliable power solution compatible with standard QFN mounting and testing techniques.

Applications

• Industrial and motor control
• Automatic test equipment
• Bipolar amplifiers in audio/video
• High-density power systems

Key features

• Fully integrated power solution for compact, low-profile design
• Wide input voltage range: 4.5V to 40V
• Adjustable output voltage range: –3V to –17V
• Output current up to 2A
• 45V surge capability
• Synchronizable to external clock
• Adjustable soft-start
• Programmable UVLO
• Output overcurrent protection
• Overtemperature protection
• Operating temperature range: -40°C to +85°C
• Enhanced thermal performance; 14°C/W
• EN55022 Class B radiated emissions compliant
• Integrated shielded inductor
