NATLINEARDatasheet (PDF)

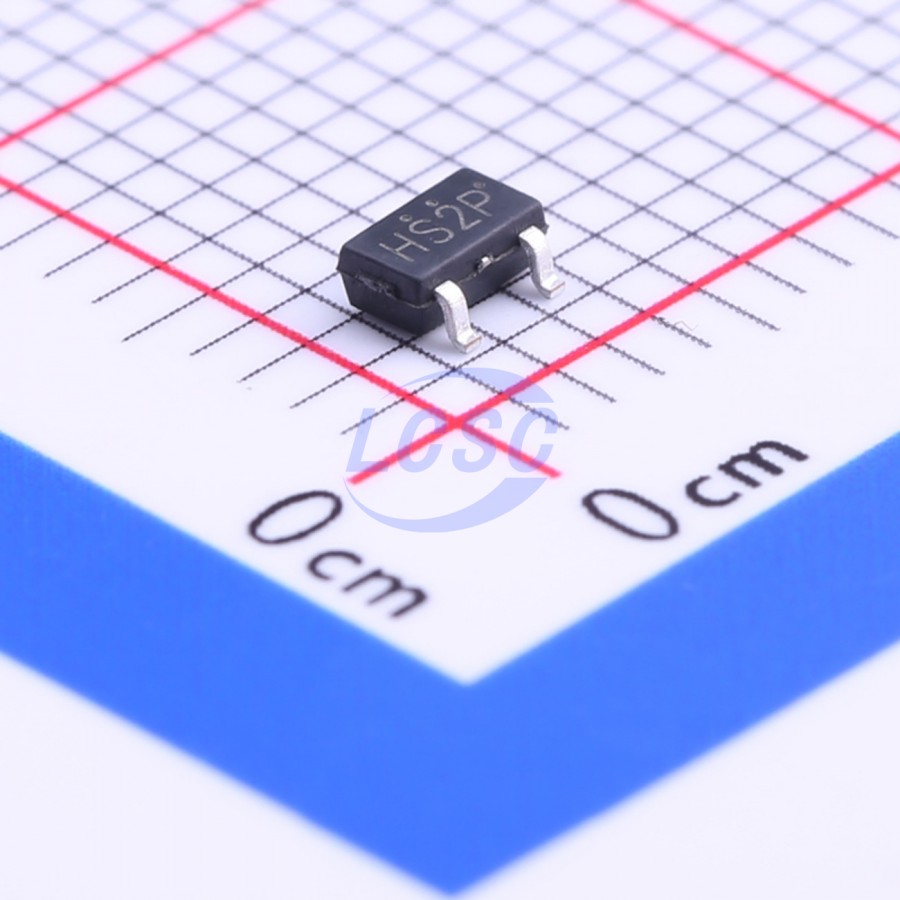

LN1132P332MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23ROHS CompliantActive
Low-power 300mA low-dropout CMOS voltage regulator
- Manufacturer
- NATLINEAR
- Manufacturer part #
- LN1132P332MR-G
- Store part #
- C193852
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,930 in stock
#C193852
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.42 | ₹54.20 |
| 100+ | ₹4.27 | ₹427.00 |
| 300+ | ₹3.70 | ₹1,110.00 |
| 3,000+ | ₹3.27 | ₹9,810.00 |
| 6,000+ | ₹2.92 | ₹17,520.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.42
₹54.20
excl. GST
₹63.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LN1132P332MR-G
₹54.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Enable control;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The LN1132 series are positive-voltage LDO regulators developed using CMOS technology, featuring high-accuracy output voltage and low quiescent current. The built-in low on-resistance transistor enables low dropout voltage and high output current capability. To prevent the load current from exceeding the output transistor's current rating, overcurrent protection and short-circuit protection circuits are integrated. In addition, the use of compact packages such as SOT-23-3 and SOT89-3 allows for high-density mounting.
Applications
- Mobile phones
- Cordless phones
- Cameras, camcorders
- Handheld game consoles
- Handheld AV devices
- Voltage reference battery-powered equipment
Key features
- Selectable output voltage: adjustable from 1.2V to 6.0V in 0.1V increments
- High output voltage accuracy: ±2.0%
- Low dropout voltage: 160mV typical (3.0V output product, IOUT = 100mA)
- Low quiescent current: 5.0μA typical
- High output current: up to 300mA (VIN ≥ VOUT + 1V)
- Built-in protection: overcurrent protection and load short-circuit protection
- Maximum operating voltage: 7V
- Compact packages: SOT-89-3, SOT-23-3, and custom packages upon request
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LN1131P332MR-G#C236077NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 170 | ₹6.63 · 170 in stock | View |
 | LN1130P332MR-G#C3008027NATLINEAR · SOT-23-3L | NATLINEAR | SOT-23-3L | 2,800 | ₹9.55 · 2,800 in stock | View |
