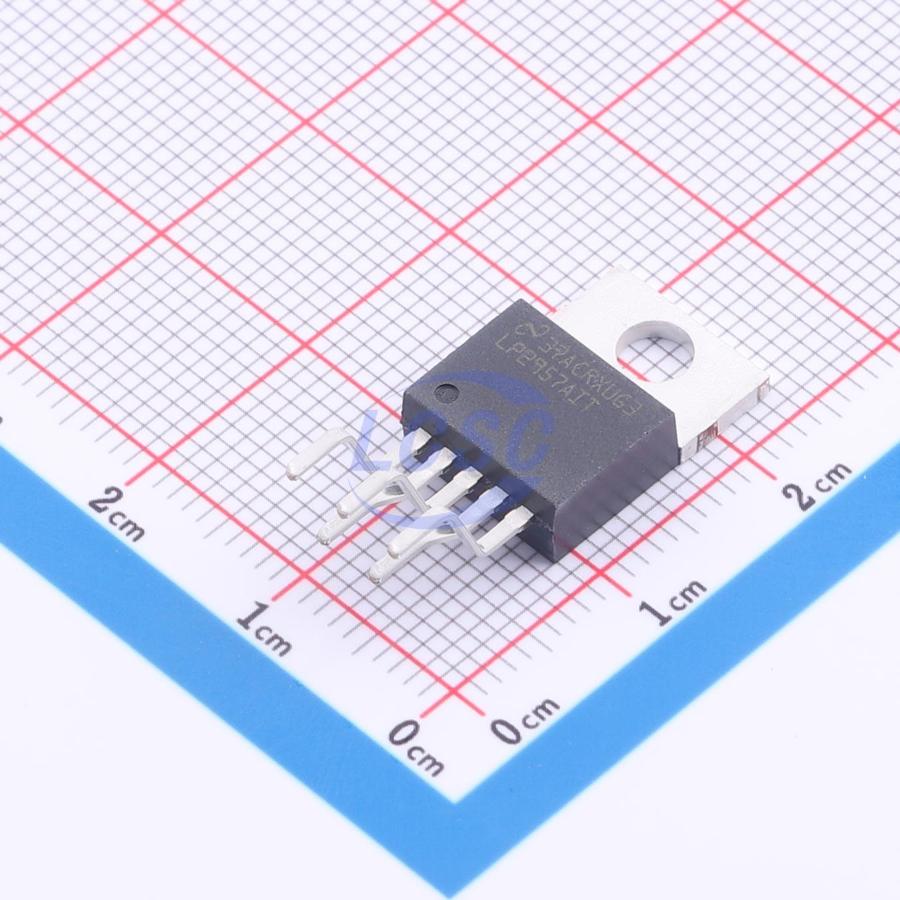

LP2957AIT/NOPB

5V Positive Fixed TO-220-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-220-5ROHS3 CompliantDiscontinued

High-precision, 250mA, 30V, low-dropout regulator with power-good indication

Manufacturer: TI
Manufacturer part #: LP2957AIT/NOPB
Store part #: C2859643
Package / case: TO-220-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C2859643

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹811.42	₹811.42
10+	₹792.58	₹7,925.80
45+	₹779.96	₹35,098.20
90+	₹767.34	₹69,060.60

Quantity (min 1)

1 × ₹811.42

₹811.42

excl. GST

₹957.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 45 per tube

LP2957AIT/NOPB

₹811.42 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 200uA
Output Configuration: Positive
Output Current: 250mA
Operating Voltage: 30V
Features: Enable control;Reverse polarity voltage protection;Over Current Protection;Thermal shutdown;Operating status indication
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Discontinued
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 45 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 45.42 g

Overview

The LP2957 is a 5V micropower voltage regulator with electronic shutdown, error flag, very low quiescent current (150 μA typical at 1 mA load), and very low dropout voltage (470 mV typical at 250 mA load current). Output can be wired for snap-on/snap-off operation to eliminate transition voltage states where μP operation may be unpredictable. Output crowbar (50 mA typical pull-down current) will bring down the output quickly when the regulator snaps off or when the shutdown function is activated. The part has tight line and load regulation (0.04% typical) and low output temperature coefficient (20 ppm/°C typical). The LP2957 is available in the five-lead TO-220 and DDPAK/TO-263 packages.

Applications

High-Efficiency Linear Regulator
Battery-Powered Regulator

Key features

5V Output within ±1.4% Over Temperature (A Grade)
Easily Programmed for Snap-On/Snap-Off Output
Ensured ±50 mA Output Current
Extremely Low Quiescent Current
Low Input-Output Voltage Required for Regulation
Reverse Battery Protection
Extremely Tight Line and Load Regulation
Very Low Temperature Coefficient
Current and Thermal Limiting
Error Flag Signals when Output is out of Regulation
