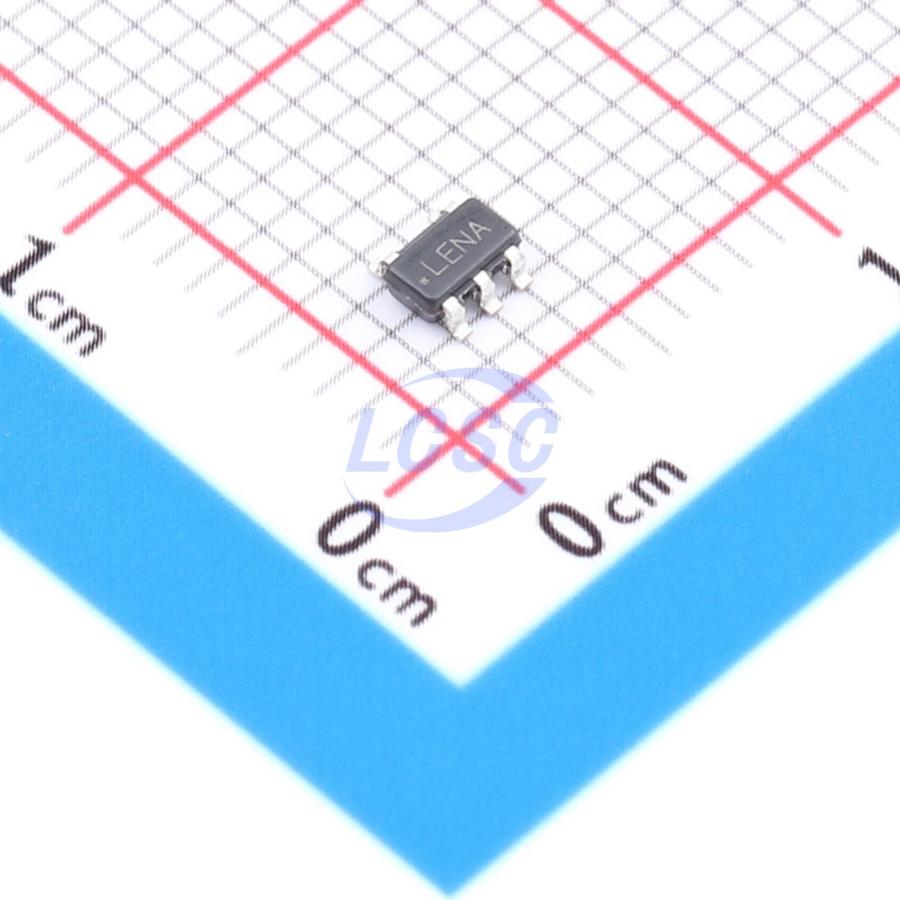

LP2983AIM5X-1.0/NOPB
1V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, 16V, low-dropout regulator with low output voltage and enable function
- Manufacturer
- TI
- Manufacturer part #
- LP2983AIM5X-1.0/NOPB
- Store part #
- C2877698
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C2877698
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹275.83 | ₹275.83 |
| 10+ | ₹269.16 | ₹2,691.60 |
| 30+ | ₹264.65 | ₹7,939.50 |
| 100+ | ₹260.13 | ₹26,013.00 |
1 × ₹275.83
₹275.83
excl. GST
₹325.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP2983AIM5X-1.0/NOPB
₹275.83 for 1 + GST
Specifications
- Output Voltage
- 1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 95uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 16V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
The LP2983 is a 150-mA, fixed-output voltage regulator designed to provide tight voltage regulation in applications with output voltages ≤1.2 V. Using an optimized vertically integrated PNP (VIP) process, the LP2983 delivers unequaled performance in all critical specifications: Ground pin current: Typically 825 μA at a 150-mA load, and 75 μA at a 1-mA load. Enhanced stability: The LP2983 is stable with output capacitor ESR down to zero, which allows the use of ceramic capacitors on the output. Precision output: 1% tolerance output voltages available (A grade). Smallest possible size: SOT-23 package uses absolute minimum board space.
Applications
- Cellular Phones
- Palmtop/Laptop Computers
- Personal Digital Assistants (PDA)
- Camcorders
- Personal Stereos
- Cameras
Key features
- Operating Input Supply Voltage: 2.2 V to 16 V
- Output Current: 150 mA
- Low ZOUT; 0.3 Ω Typical (10 Hz to 1 MHz)
- Stable with Low-ESR Output Capacitor
- Low Ground Pin Current at All Loads
- Output Voltage Accuracy 1% (A Grade)
- High Peak Current Capability
- Wide Supply Voltage Range (16 V Maximum)
- Overtemperature and Overcurrent Protection
- -40℃ to +125℃ Junction Temperature Range
- Requires Minimum External Components
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP2983AIM5-1.0/NOPB#C467079TI · SOT-23-5 | TI | SOT-23-5 | 31 | ₹463.22 · 31 in stock | View |
| LP2983IM5X-1.0/NOPB#C2868184TI · SOT-23-5 | TI | SOT-23-5 | On request | ₹120.04 · 0 in stock | View | |
| LP2983IM5-1.0/NOPB#C2872638TI · SOT-23-5 | TI | SOT-23-5 | On request | ₹144.80 · 0 in stock | View | |
