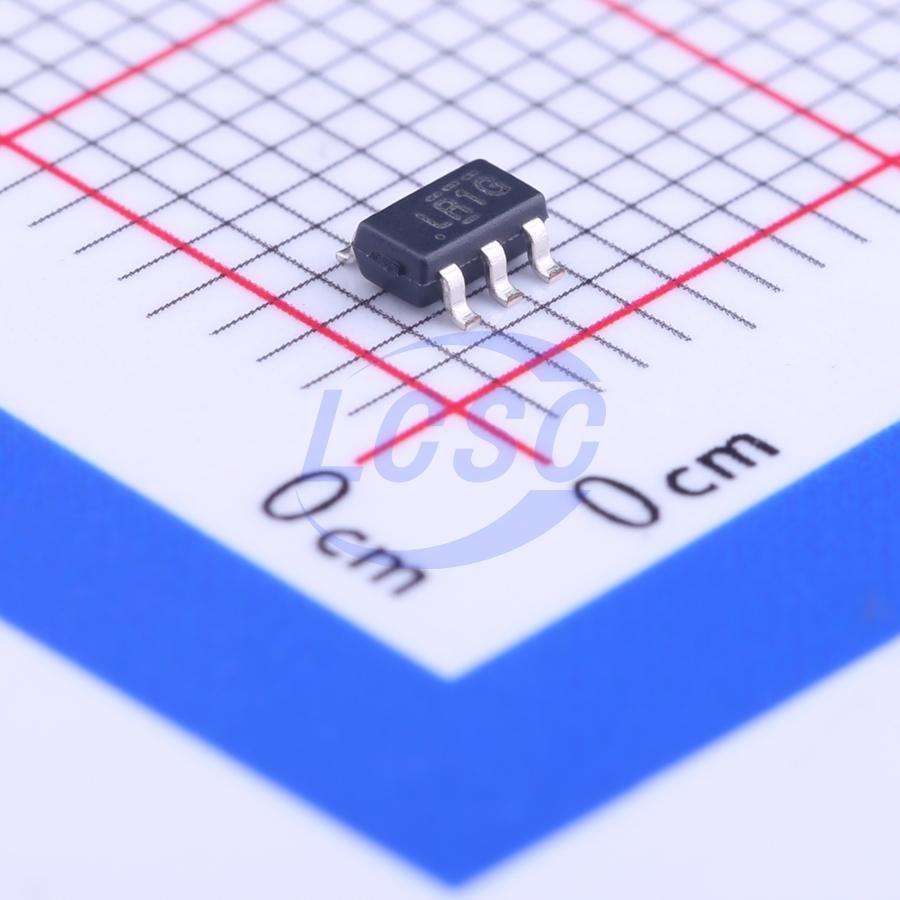

LP2985A-50DBVR

The LP2985 family of fixed-output, low-dropout regulators offers exceptional, cost-effective performance for both portable and nonportable applications. Available in voltages of 1.8 V, 2.5 V, 2.8 V, 2.9 V, 3 V, 3.1 V, 3.3 V, 5 V, and 10 V, the family has an output tolerance of 1% for the A version (1.5% for the non-A version) and is capable of delivering 150-mA continuous load current. Standard regulator features, such as overcurrent and overtemperature protection, are included.

Applications

• Portable Devices
• Digital Cameras and Camcorders
• CD Players
• MP3 Players

Key features

• Output Tolerance of – 1% (A Grade), 1.5% (Standard Grade)
• Ultra-Low Dropout, Typically – 280 mV at Full Load of 150 mA, 7 mV at 1 mA
• Wide VIN Range: 16 V Max
• Low IQ: 850 μA at Full Load at 150 mA
• Shutdown Current: 0.01 μA Typ
• Low Noise: 30 μVRMS With 10-nF Bypass Capacitor
• Stable With Low-ESR Capacitors, Including Ceramic
• Overcurrent and Thermal Protection
• High Peak-Current Capability
• ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A)
