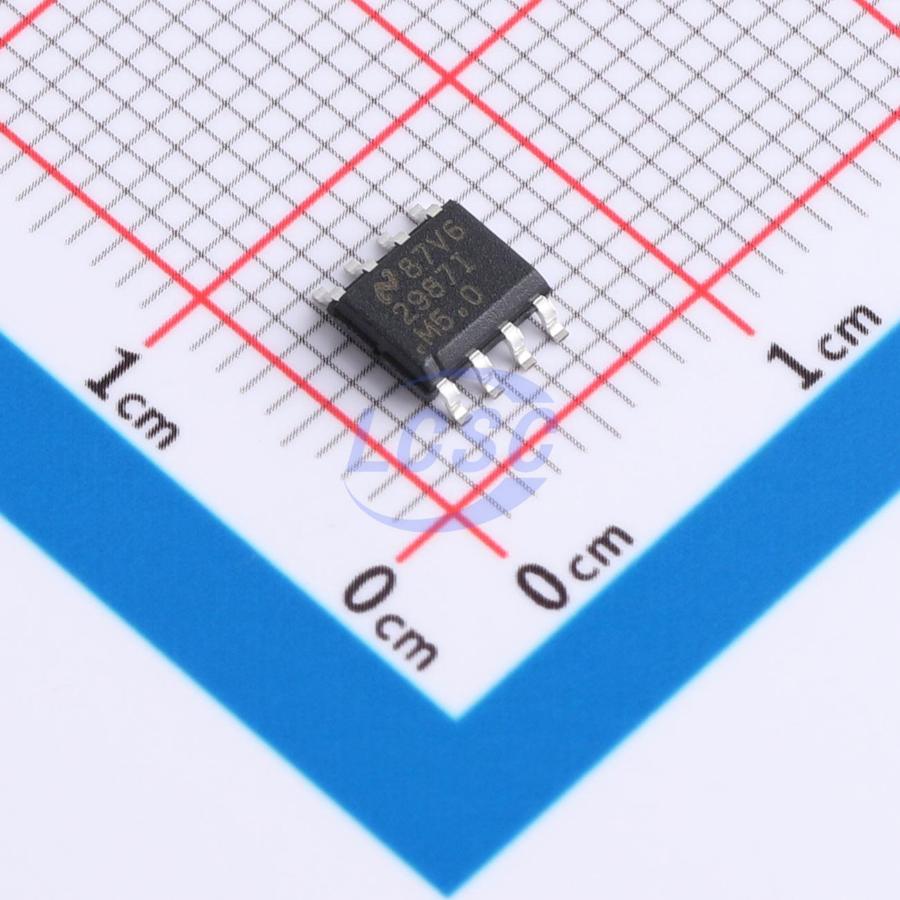

LP2987IM-5.0/NOPB

The LP2987/8 are fixed-output 200 mA precision LDO voltage regulators with power-ON reset delay which can be implemented using a single external capacitor. The LP2988 is specifically designed for noise-critical applications. A single external capacitor connected to the Bypass pin reduces regulator output noise. Using an optimized VIP (Vertically Integrated PNP) process, these regulators deliver superior performance: Dropout Voltage: 180 mV @ 200 mA load, and 1 mV @ 1 mA load (typical). Ground Pin Current: 1 mA @ 200 mA load, and 200 μA @ 10 mA load (typical). Sleep Mode: The LP2987/8 draws less than 2 μA quiescent current when shutdown pin is held low. Error Flag/Reset: The error flag goes low when the output drops approximately 5% below nominal. This pin also provides a power-ON reset signal if a capacitor is connected to the DELAY pin. Precision Output: Standard product versions of the LP2987 and LP2988 are available with output voltages of 5.0V, 3.8V, 3.3V, 3.2V, 3.0V, or 2.8V, with specified accuracy of 0.5% (“A” grade) and 1% (standard grade) at room temperature.

Applications

• Cellular Phone
• Palmtop/Laptop Computer
• Camcorder
• Personal Stereo
• Camera

Key features

• Ultra Low Dropout Voltage
• Power-ON Reset Delay Requires Only One Component
• Bypass Pin for Reduced Output Noise (LP2988)
• Specified Continuous Output Current 200 mA
• Specified Peak Output Current >250 mA
• SOIC-8 and VSSOP-8 Surface Mount Packages
• <2 μA Quiescent Current when Shutdown
• Low Ground Pin Current at All Loads
• 0.5% Output Voltage Accuracy (“A” Grade)
• Wide Supply Voltage Range (16V Max)
• Overtemperature/overcurrent Protection
• -40°C to ±125°C Junction Temperature Range
