TIDatasheet (PDF)

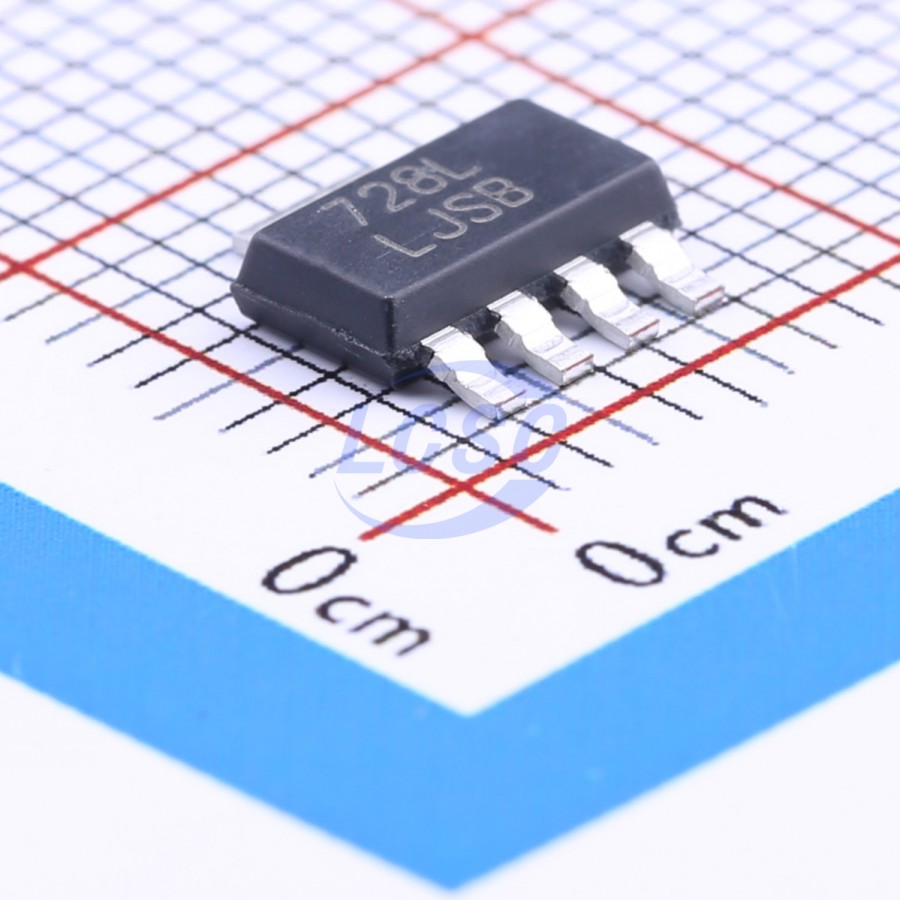

LP38692MP-3.3/NOPB
3.3V Positive Fixed SOT-223-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-5ROHS3 CompliantActive
1A, 10V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP38692MP-3.3/NOPB
- Store part #
- C140347
- Package / case
- SOT-223-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
157 in stock
#C140347
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹199.02 | ₹199.02 |
| 10+ | ₹163.17 | ₹1,631.70 |
| 30+ | ₹143.40 | ₹4,302.00 |
| 100+ | ₹121.01 | ₹12,101.00 |
| 500+ | ₹111.03 | ₹55,515.00 |
| 1,000+ | ₹106.67 | ₹1,06,670.00 |
1 × ₹199.02
₹199.02
excl. GST
₹234.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LP38692MP-3.3/NOPB
₹199.02 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 55uA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1A
- Features
- Enable control;Thermal shutdown;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.222 g
Overview
The LP38690 and LP38692 low-dropout CMOS linear regulators provide tight output tolerance (2.5% typical), extremely low dropout voltage (450 mV at a 1-A load current, VOUT = 5 V), and excellent AC performance utilizing ultra low ESR ceramic output capacitors. The low thermal resistance of the WSON, SOT-223, and TO-252 packages allow the full operating current to be used even in high ambient temperature environments. The use of a PMOS power transistor means that no DC base drive current is required to bias it allowing ground pin current to remain below 100 μA regardless of load current, input voltage, or operating temperature.
Applications
- Hard Disk Drives
- Notebook Computers
- Battery Powered Devices
- Portable Instrumentation
Key features
- Wide Input Voltage Range (2.7 V to 10 V)
- 2.5% Output Accuracy (25°C)
- Low Dropout Voltage: 450 mV at 1 A (typical, 5 VOUT)
- Precision (Trimmed) Bandgap Reference
- Ensured Specifications for -40°C to 125°C
- 1-μA Off-State Quiescent Current
- Thermal Overload Protection
- Foldback Current Limiting
- 3-Lead TO-252, 5-Lead SOT-223, and 6-Bump WSON Packages
- Enable Pin (LP38692)
- Ground Pin Current: 55 μA (typical) at Full Load
- Precision Output Voltage: 2.5% (25°C) Accuracy
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| LP38692MPX-3.3/NOPB#C2866079TI · SOT-223-5 | TI | SOT-223-5 | 1,539 | ₹144.88 · 1,539 in stock | View | |
