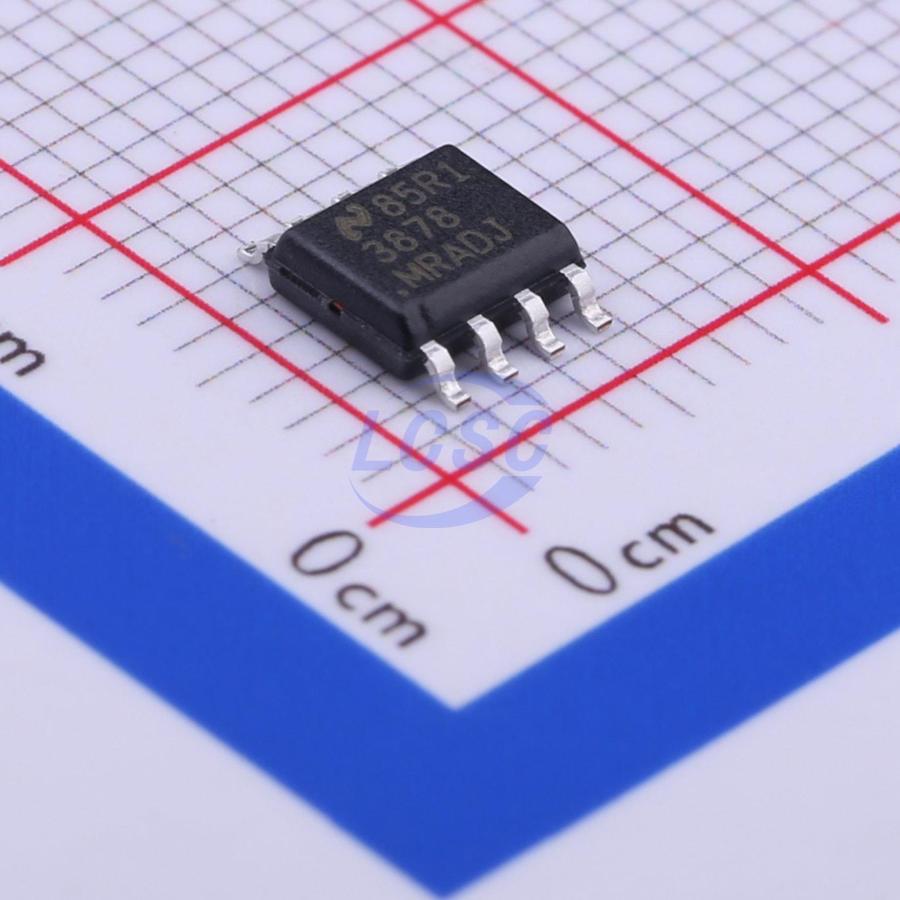

LP3878MR-ADJ/NOPB
Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA SOIC-8-EP
SOIC-8-EPROHS3 CompliantActive
800mA, 16V, adjustable low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- LP3878MR-ADJ/NOPB
- Store part #
- C55383
- Package / case
- SOIC-8-EP
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
131 in stock
#C55383
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹242.20 | ₹242.20 |
| 10+ | ₹205.74 | ₹2,057.40 |
| 30+ | ₹182.75 | ₹5,482.50 |
| 95+ | ₹146.06 | ₹13,875.70 |
| 475+ | ₹135.65 | ₹64,433.75 |
| 950+ | ₹130.87 | ₹1,24,326.50 |
1 × ₹242.20
₹242.20
excl. GST
₹285.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 95 per tube
LP3878MR-ADJ/NOPB
₹242.20 for 1 + GST
Specifications
- Output Voltage
- 1V~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.5mA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 800mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Noise bypass terminal;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 95 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.187 g
Overview
LP3878-ADJ is an 800mA adjustable output regulator designed to deliver high performance and low noise for applications requiring output voltages as low as 1V. Leveraging an optimized Vertical Integration PNP (VIP) process, the LP3878-ADJ offers the following outstanding performance: Ground Pin Current: typical 5.5mA at 800mA load; typical 180μA at 100μA load. Low-Power Shutdown: when the SHUTDOWN pin is pulled low, the LP3878-ADJ draws less than 10μA of quiescent current. Precision Output: guaranteed output voltage accuracy of 1% at room temperature. Low Noise: with a 10nF bypass capacitor, broadband output noise is only 18μV (typical).
Applications
- ASIC power supplies
- Desktop, laptop, and graphics card
- Set-top box, printer, and copier
- DSP and FPGA power supplies
- SMPS post-regulators
- Medical instruments
Key features
- Input supply voltage: 2.5V to 16V
- Output voltage range: 1V to 5.5V
- Designed for use with low-ESR ceramic capacitors
- Ultra-low output noise
- 8-pin SO PowerPAD and WSON surface-mount packages
- Quiescent current in shutdown mode <10μA
- Low ground pin current under all load conditions
- Over-temperature and over-current protection
- Operating junction temperature range: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3878MRX-ADJ/NOPB#C411875TI · SO-8-EP | TI | SO-8-EP | 6,050 | ₹192.50 · 6,050 in stock | View |
