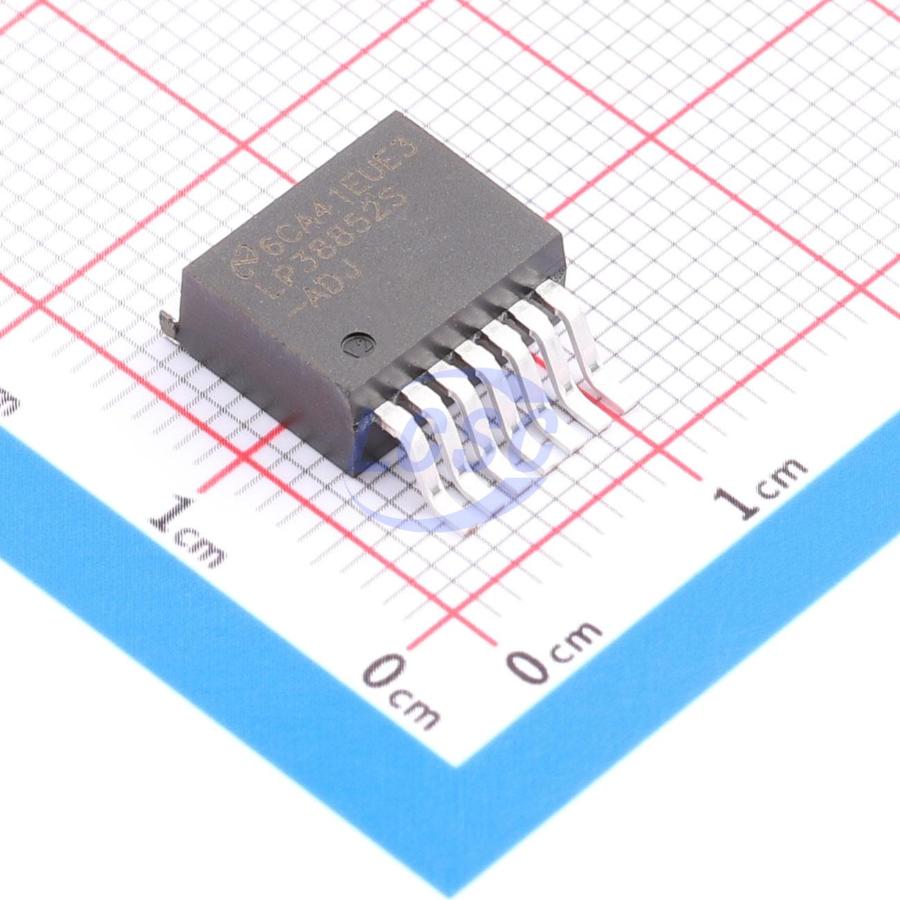

LP38852S-ADJ/NOPB

The LP38852-ADJ is a high-current, fast-response regulator which can maintain output voltage regulation with extremely low input-to-output voltage drop. Fabricated on a CMOS process, the device operates from two input voltages: VBIAS provides voltage to drive the gate of the N-MOS power transistor, while V_IN is the input voltage which supplies power to the load. The use of an external bias rail allows the part to operate from ultralow V_IN voltages. Unlike bipolar regulators, the CMOS architecture consumes extremely low quiescent current at any output load current. The use of an NMOS power transistor results in wide bandwidth, yet minimum external capacitance is required to maintain loop stability. The fast transient response of this device makes it suitable for use in powering DSP, microcontroller core voltages, and switch-mode power supply postregulators. Dropout Voltage: 130 mV (typical) at 1.5-A load current. Low Ground Pin Current: 10 mA (typical) at 1.5-A load current. Soft Start: Programmable soft-start time.

Applications

• ASIC Power Supplies In: Desktops, Notebooks, and Graphics Cards, Servers, Gaming Set Top Boxes, Printers and Copiers
• Server Core and I/O Supplies
• DSP and FPGA Power Supplies
• SMPS Post-Regulator

Key features

• Input V_IN Range 0.93 V to 5.5 V
• Adjustable V_OUT Range 0.8 V to 1.8 V
• Wide VBIAS Supply Operating Range 3 V to 5.5 V
• Dropout Voltage of 130 mV (Typical) at 1.5-A Load Current
• Precision Output Voltage Across All Line and Load Conditions: ±1.5% V_ADJ for T_J = 25℃, ±2% V_ADJ for 0℃ ≤ T_J ≤ +125℃, ±3% V_ADJ for -40℃ ≤ T_J ≤ +125℃
• Overtemperature and Overcurrent Protection
• Stable with 10-μF Ceramic Capacitors
• Available in 7-pin TO-220, 7-Pin DDPAK/TO-263, and 8-Pin SO PowerPAD Packages
• -40℃ to +125℃ Operating Junction Temperature Range
