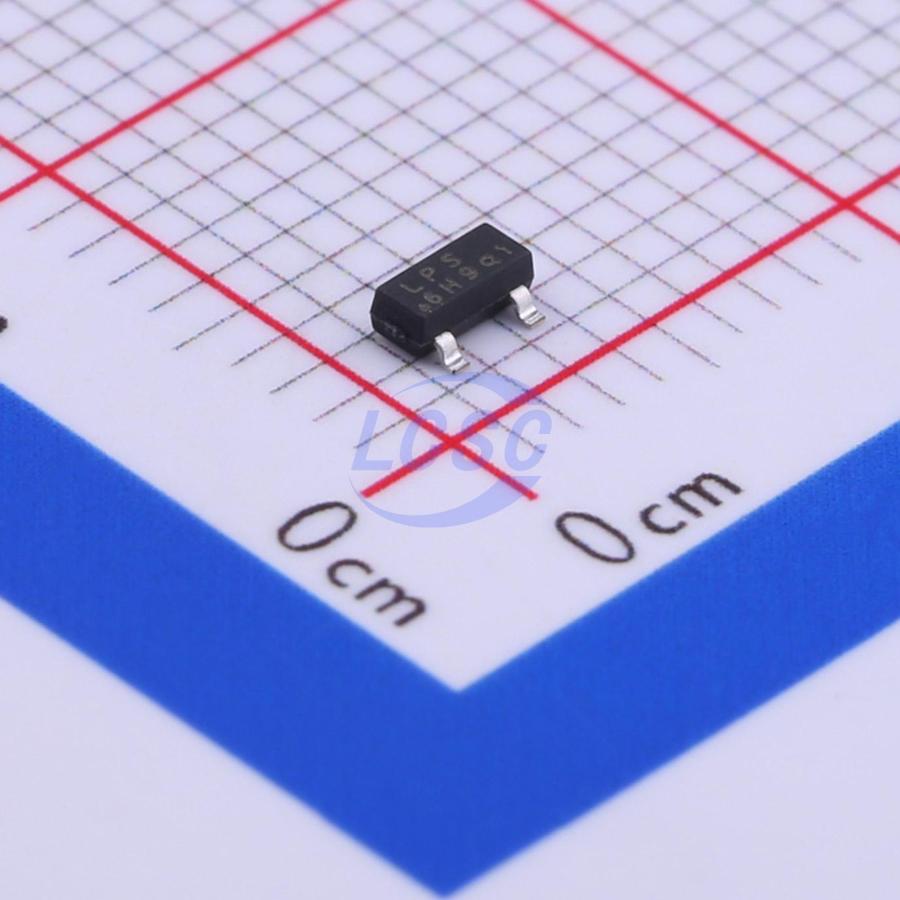

LP3986-28B3F
3.33V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
300mA, Ultra-low Noise LDO Regulator
- Manufacturer
- LOWPOWER
- Manufacturer part #
- LP3986-28B3F
- Store part #
- C387691
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C387691
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.96 | ₹99.20 |
| 200+ | ₹3.90 | ₹780.00 |
| 600+ | ₹3.32 | ₹1,992.00 |
| 3,000+ | ₹2.78 | ₹8,340.00 |
| 9,000+ | ₹2.47 | ₹22,230.00 |
| 21,000+ | ₹2.30 | ₹48,300.00 |
| 39,000+ | ₹2.28 | ₹88,920.00 |
| 81,000+ | ₹2.26 | ₹1,83,060.00 |
20 × ₹4.96
₹99.20
excl. GST
₹117.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LP3986-28B3F
₹99.20 for 20 + GST
Specifications
- Output Voltage
- 3.33V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.018 g
Overview
The LP3986 is designed for portable applications with demanding performance and space requirements. The LP3986 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The LP3986 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. Available in the 3-lead of SOT-23 packages
Applications
- PMP/PDA/MP3 players
- Cellular and Mobile phone
- RF Module
- Sensor Module
Key features
- Ultra-Low-Noise for RF Application
- 2.5V - 6V Input Voltage Range
- Low Dropout: 220mV @ 300mA
- Ultra-Fast Response in Line/Load Transient
- Current Limiting and Thermal Shutdown Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP3986-33B3F#C387689LOWPOWER · SOT-23 | LOWPOWER | SOT-23 | 31,260 | ₹5.61 · 31,260 in stock | View |
